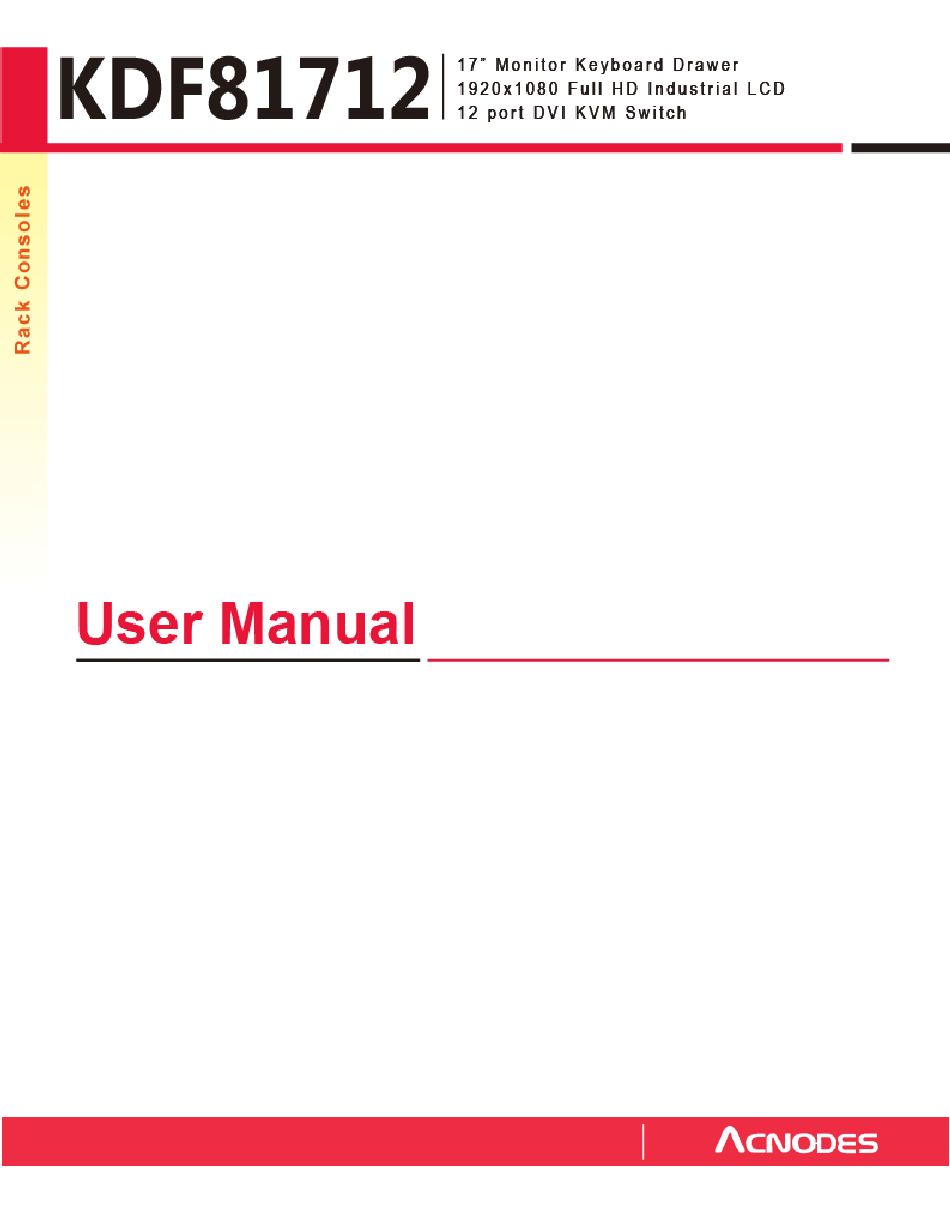

Acnodes KDF81712 User Manual

17" monitor keyboard drawer 1920x1080 full hd industrial lcd 12 port dvi kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDF81712 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes KDF81712

Summary of Contents for Acnodes KDF81712

  • Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
  • Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > KDF81712 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 < Part. 2 > Specifications / OSD Product Specifications P.6 - 7 Keyboard / Mouse Specifications P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 12...
  • Page 4 Contents < Part. 4 > KVM Integration DVI-D 12-port Loc al Rem ote KVD1201 P.16 KVM port connection P.17 Specifications P.18 KVM Button P.19 KVM Hotkey P.20 DC power 12V, 24V, 48V Input...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Part. 1 > Kdf81712

    < Part 1 > < 1.1 > Package Content KDF81712 unit X 1 - 6ft D VI-D console cable X 1 - Power cord X 1 - M6 s crew, cage nut & cup w asher X 8 < 1.2 > Structure Diagram...
  • Page 7 (W x D x H) (W x D x H) Weight Weight 441.6 x 580 x 44 mm 590 x 823 x 140 mm 15 kg 19 kg KDF81712 17.4 x 22.8 x 1.73" 23.2 x 32.4 x 5.5” 33 lb 42 lb...

  • Page 8: Installation

    < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
  • Page 9 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
  • Page 10 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.

  • Page 11: Product Specifications

    < Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch W idescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 1.07 Billion, 10-bit...
  • Page 12 Regulatory Safety A pproval FCC & CE Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 580 x 44 mm Specification 17.4 x 22.8 x 1.73 inch...

  • Page 13: Keyboard / Mouse Specifications

    < 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts...
  • Page 14 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with track ball Supporting layouts America United States How to Use "MAC" Keyboard Keyboa rd Features Decrease display brightness Fast-forward Increase display brightness Mute sound Missio n control * Only works with OS X Lion Decrease volume...
  • Page 15 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball N um C ap s S cr o l l C om p ose N u m C a ps Sc r o l l C o m p os e S keyboard integrated with touchpad / trackball ¦...

  • Page 16: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r...
  • Page 17 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Auto mat ically ad just sizes, centers and fine tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.

  • Page 18: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub s creen in the M ain screen. OSD M enu > MISC > PIP Mode > Large / Small / OFF Main screen Sub screen Positi on...
  • Page 19 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu > MISC > PIP Mode > PBP Main scree n Sub s creen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 20: Part. 3 > Options

    < Part 3> <3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V...

  • Page 21: Kvm Port Connection

    <Part 4> KVM Integration < 4.1 > KVM port connection USB Servers DVI-D KVM port Audi o Power USB Servers D VI KVM C ab le 6 feet DVI KVM c able 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) IP console, remote c onsole, daisy- chain and OSD m enu are NOT available for this model.

  • Page 22: Specifications

    < 4.2 > Specifications KVD1201 KVM Port ¯ Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity: Com bo 4-in-1, KV M cable, 6 or 15 feet Audio Out 1 x 3.5mm stereo audio ¯...

  • Page 23: Kvm Button

    4.3 KVM Button Power ON ¦ Turn off all servers and KVM s witches ¦ Make sure all cables / c onnectors are properly connec ted ¦ Recommend Power ON sequence is m onitor, K VM switch finally computer Front Panel - Port LED Indications DVI-D K VM 12 ports PC port LEDs Channel...

  • Page 24: Kvm Hotkey

    4.4 KVM Hotkey Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to nex t port Scroll Lock + Scroll Lock + Port no. Switch to specific port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock + Enable / Disable beeper sound...

  • Page 25: Dc Power 12V, 24V, 48V Input

    4.5 DC Power 12V, 24V, 48V Input Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
