All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Related Manuals for Acnodes KDH8170
Summary of Contents for Acnodes KDH8170

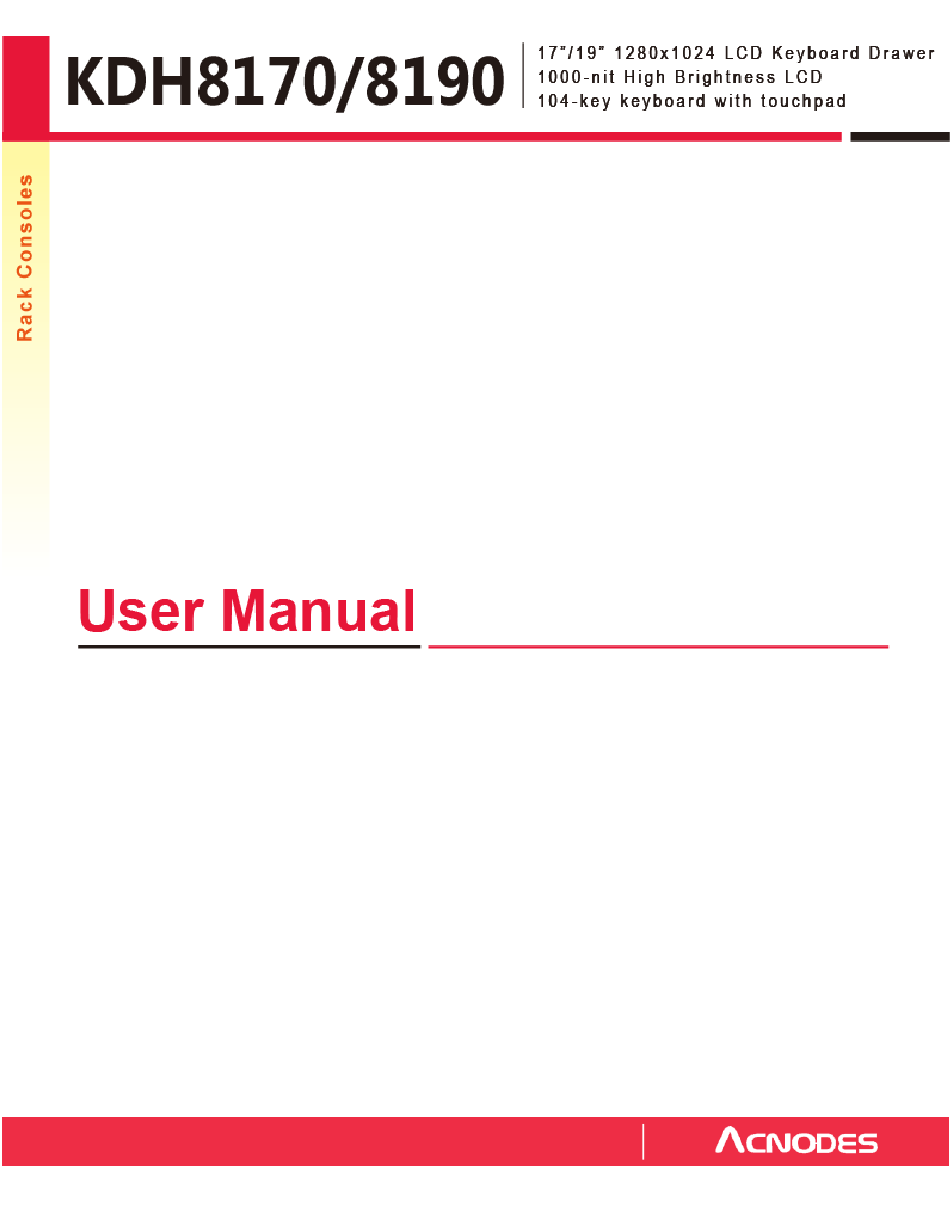

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDH8170 / KDH8190 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection < Part. 2 > Specifications / OSD Product Specifications P.7 - 8 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.10 - 11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KDH 8170/8190 uni t X 1 - 6ft C ombo KVM cable X 1 - Power cord X 1 - M6 s cre w, cage nut & cup w asher X 8 The above package content is only for the single console models. - Page 6 Weight Weight 441.6 x 440 x 44 mm 590 x 823 x 140 mm 12 k g 16.5 kg KDH8170 17.4 x 17.3 x 1.73" 23.2 x 32.4 x 5.5” 26 lb 36 lb 441.6 x 480 x 44 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 10: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer Combo KVM cab M cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 console KVM USB console KVM... -
Page 11: Product Specifications
< Part 2 > < 2.1 > Product Specifications KDH8170 KDH8190 Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) - Page 12 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random KDH8170 KDH8190 Physical Specification Product ( W x D x H ) 441.6 x 440 x 44 m m 441.6 x 480 x 44 mm 17.4 x 17.3 x 1.73 inch...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 15 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 16 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, C EA-861-D ) - DVI-D ( DVI-D TMD S s ingle link ) - AV ( S-Vid eo + Compo site, BN C ) - Audio ( 3.5mm audio jack s for au dio in &...
- Page 17 < 3.2 > Options : DC Power Model Input r ating Input voltage: 24-Volt 48-Volt Input ra nge : 18 ~ 36V 36 ~ 75V Input current - No load 50 m A 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage:...
