All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2016 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KD8121
Summary of Contents for Acnodes KD8121

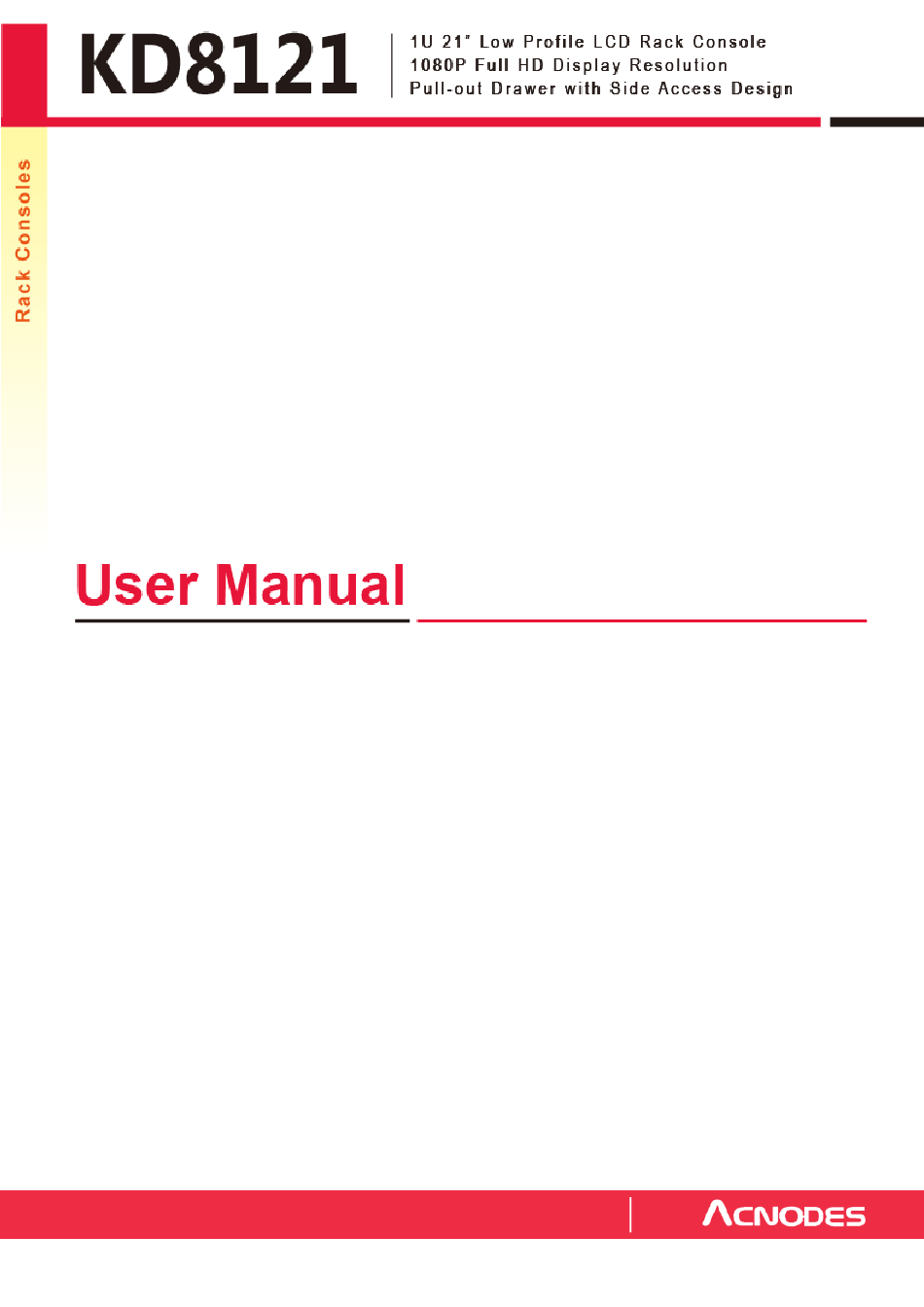

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents KD8121 < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 12... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Kd8121
< Part 1 > < 1.1 > Package Content KD8121 unit X 1 - 6ft DVI-D console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 670 x 44 mm 595 x 860 x 140 mm 14.7 kg 18.9 kg KD8121 17.4 x 26.4 x 1.73" 23.4 x 33.9 x 5.5” 32.3 lb 41.6 lb The weight is only for the single console models. It varies with accessories & options...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open Flip up LCD from the side Panel Left Right...
-
Page 9: Connection
via DVI-D console cable < 1.4 > Connection to USB Server LCD Console Drawer Power DVI-D KB / MS DVI-D console cable DVI-D USB server via DVI-D console cable < 1.4 > Connection to external KVM LCD Console Drawer Power DVI-D KB / MS DVI-D... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 11 Product ( W x D x H ) 441.6 x 670 x 44 mm Physical Specifi cation 17.4 x 26.4 x 1.73 inch Packing ( W x D x H ) 595 x 860 x 140 mm 23.4 x 33.9 x 5.5 inch Net Weight 14.7 kgs / 32.3 lbs Gross Weight...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life Windows / Linux / Unix / Mac OS OS support Supporting layouts America... - Page 13 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 17 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high...
-
Page 18: Part. 3 > Options
< 3.2 > Options : ( HDMI 1.3, CEA-861-D ) - HDMI ( 1 ) For HDMI option, DVI-D input will be removed. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. -
Page 19: Part. 4 > Kvm Integration
(W x D x H) (W x D x H) 441.6 x 770 x 44 mm 595 x 860 x 140 mm 15.5 kg 21.4 kg KD8121 with KVM 17.4 x 30.3 x 1.73" 23.4 x 33.9 x 5.5” 34.1 lb 47.1 lb P.15...
