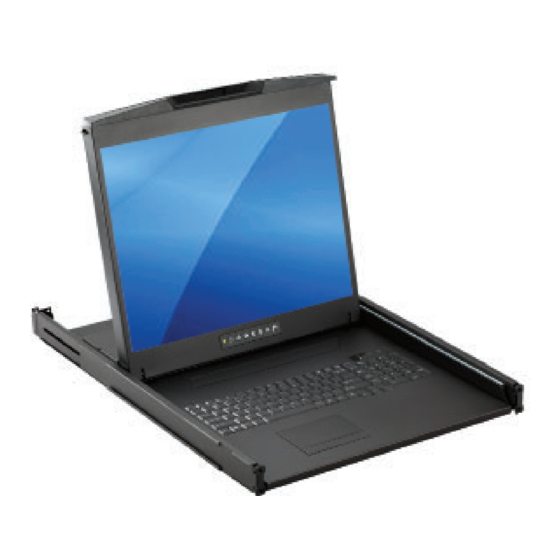

1u rackmount lcd console drawer 20.1" 1600 x 1200 industrial lcd monitor 104-key keyboard with touchpad
Hide thumbs

Advertisement

Quick Links

Download this manual
KD8220
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2022 Acnodes Corp.
1U Rackmount LCD Console Drawer
20.1" 1600 x 1200 Industrial LCD Monitor
104-Key Keyboard with Touchpad
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

loading
Need help?

Need help?

Do you have a question about the KD8220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acnodes KD8220

Summary of Contents for Acnodes KD8220

  • Page 1 104-Key Keyboard with Touchpad User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, July 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents KD8220 < Part. 1 > Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifications Keyboard / Mouse Specifications On-Sceen Display Operation (OSD) < Part. 3 > Options HDMI, DVI-D P.10 DC Power : 12V / 24V / 48V / 125V P.11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: < 1.1 > Package Content

    < Part 1 > < 1.1 > Package Content KD8220 unit X 1 - 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models.
  • Page 6 Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 14.5 kg 22 kg KD8220 17.3 x 25.6 x 1.73 inch 23.4 x 33.9 x 5.5 inch 31.9 lb 48.4 lb The weight is only for the single console models. It varies with accessories & options...

  • Page 7: Installation

    < 1.3 > Installation - How to install 1U 20" LCD Tray Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. ■...
  • Page 8 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer.

  • Page 9: Connection

    via VGA console cable < 1.4 > Connection to USB Server LCD Console Drawer POWER AC Input 100~240V VGA console cable USB server via VGA console cable < 1.4 > Connection to external KVM LCD Console Drawer POWER AC Input 100~240V console cable VGA console KVM...

  • Page 10: Product Specifications

    < Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M...
  • Page 11 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 439.5 x 650 x 44 mm Specifi...

  • Page 12: Keyboard / Mouse Specifications

    < 2.2 > Keyboard / Mouse Specifi cations G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
  • Page 13 < 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...

  • Page 14: Part. 3 > Options

    < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.2, CEA-861-B - DVI-D ( DVI-D TMDS single link ( 1 ) Either HDMI or DVI-D can be selected. ( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen.
  • Page 15 < 3.2 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
