ClearOne Unite 200 User Manual

Full-hd video conference camera
Hide thumbs Also See for Unite 200:
Table of Contents

Advertisement

Quick Links

®

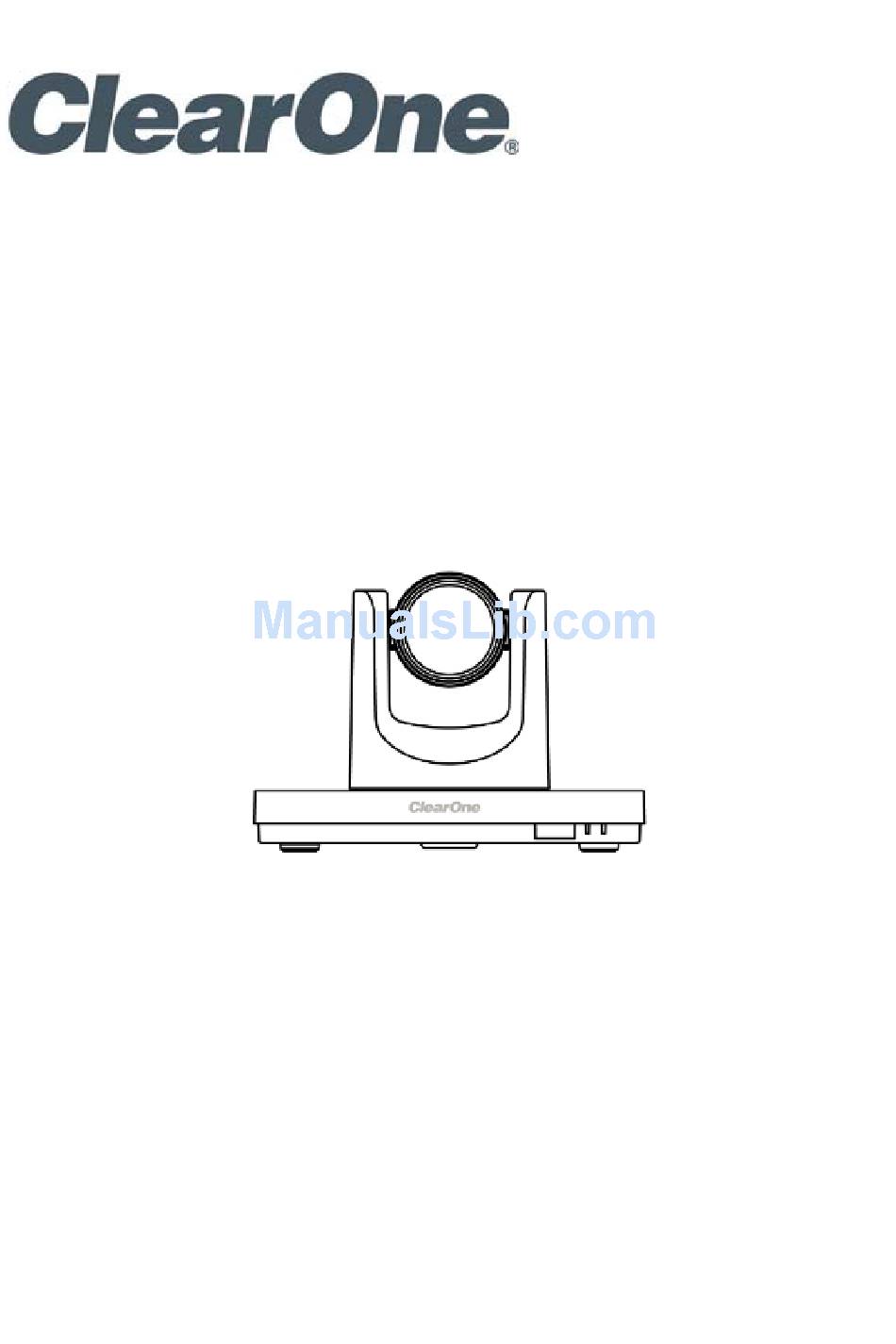

UNITE
200 CAMERA
U
G
SER
UIDE
NOTE: For the UNITE 200 camera's control, use the
COLLABORATE Codec Appliance's remote control. The
remote control that comes with this camera is only for
advanced configurations, if required.

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the Unite 200 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne Unite 200

Summary of Contents for ClearOne Unite 200

  • Page 1 ® UNITE 200 CAMERA UIDE NOTE: For the UNITE 200 camera’s control, use the COLLABORATE Codec Appliance’s remote control. The remote control that comes with this camera is only for advanced configurations, if required.
  • Page 2 2 UNITE 200: User Guide...
  • Page 3 DOC-0263-001 REV 1.1 – Mar. 2016 © 2016 ClearOne Inc. - All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. Printed in the United States of America.

  • Page 4: Table Of Contents

    PRODUCT SPECIFICATION ................10 MAIN UNIT ......................12 SIZE ........................13 IR REMOTE CONTROL ..................14 SERIAL COMMUNICATION CONTROL ............17 MENU SETTING ....................19 IP FUNCTION ...................... 24 USB 3.0 ........................ 32 MAINTENANCEAND TROUBLESHOOTING..........32 4 UNITE 200: User Guide...

  • Page 5: Preface

     Make sure there are no obstacles within the camera’s rotation range.  Never power on before installation has been completed. Don’t dismantle the camera ClearOne is not responsible for any unauthorized modification or dismantling. 5 UNITE 200: User Guide...

  • Page 6: Supplied Accessories

    SUPPLIED ACCESSORIES When you unpack, check that all the supplied accessories are included:  Camera  AC power adapter  Power cord  RS232 cable  Remote controller  User manual  USB3.0 Cable 6 UNITE 200: User Guide...

  • Page 7: Quick Start

    Step 1. Please ensure connections are correct before starting Step 2. Setting of the bottom switches Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode’. SW-1 SW-2 Mode Normal Working Mode 7 UNITE 200: User Guide...
  • Page 8 Press the Menu button to display the On-screen Display (OSD) menu. Select the item Menu >Restore Default > Restore. Set the value Yes, and then press the HOME button to restore the factory default settings. 8 UNITE 200: User Guide...

  • Page 9: Features

     Serial Interface Control All the parameters of the camera can be remotely controlled using the RS232/485 interface. 9 UNITE 200: User Guide...

  • Page 10: Product Specification

    Tilt Speed Range 1.7° - 69.9°/s H & V Flip Support Image Freezing Support Number of Presets Preset Accuracy 0.1° USB Features Windows 7,Windows 8,Windows 8.1,Windows 10, Mac OS Operating System X,Linux Color System YUV 4:2:2 10 UNITE 200: User Guide...
  • Page 11 1xRS485: Share with RS232 Out, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P Power Jack JEITA type (DC IN 12V) Generic Specification Input Voltage DC 12V Current Consumption 1.5A (Max) Operating Temperature -10°C - 40°C Storage Temperature -40°C - 60°C 11 UNITE 200: User Guide...

  • Page 12: Main Unit

    15. HDMI Interface 6. Tripod Screw Hole 16. USB 3.0 7. Fixing Screw Hole 17. Reserved Interface 8. System Select Switch 18. DC IN 12V Interface 9. RS232 OUT Interface 19. POWER Switch 10. RS232 IN Interface 12 UNITE 200: User Guide...

  • Page 13: Size

    SIZE Unit: inch 13 UNITE 200: User Guide...

  • Page 14: Ir Remote Control

    NOTE: Effective only in auto exposure mode. NOTE: If there is a light behind the subject, the subject will appeardark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button. 14 UNITE 200: User Guide...
  • Page 15 After five seconds, the display disappears automatically (though the freeze feature continues). To cancel the freeze, press the [F4] key the word "Unfreeze" displays on the upper left corner. After five seconds, the display 15 UNITE 200: User Guide...
  • Page 16 [*] + [#] + [4]: Show IP address [*] + [#] + [6]: Quickly restore the default settings [*] + [#] + [8]: Show the camera version [*] + [#] + [9]: Quickly set mount mode (flip / normal) 16 UNITE 200: User Guide...

  • Page 17: Serial Communication Control

    (Note: If the position preset 0 has been stored, the position preset 0 is called up after initialization.) Then the users can control the camera with commands in the command list. Control interface definition Function RS485- IR OUT RS485+ 17 UNITE 200: User Guide...

  • Page 18: Network Configuration

    7.NC 8.RS458+ 8.CTS 8. RS485+ 8.NC 9.RI Network configuration Under VISCA Under Pelco-D/P Commandlist The camera uses the VISCA/Pelco-D/Pelco-P serial standard. If you need VISCA/Pelco-D/Pelco-P protocol command list in detail, please contact ClearOne Technical Support. 18 UNITE 200: User Guide...

  • Page 19: Menu Setting

    Gain Limit (Effective only when The EXPOSURE menu appears, as exposure mode is Auto/AAE/Bright): shown in the following figure: Maximum gain limit. Options: 0 - 15. Backlight (Effective only when exposure mode is Auto): Set the backlight compensation. Options: 19 UNITE 200: User Guide...
  • Page 20 [HOME] button. The fine-tuning. Options: -10 - +10 COLOR menu appears, as shown in BG Tuning (Effective only when the following figure: sens Low):Blue gain fine-tuning. Options: -10 - +10 Sat.: Saturation. Options: 60% - 20 UNITE 200: User Guide...
  • Page 21 Change Value Luminance: Brightness adjustment. [Menu] Back Options: 0 - 14 Contrast: Contrast adjustment. SpeedByZoom: The depth of field Options: 0 - 14 scale switch. Options: On, Off Sharpness: Sharpness adjustment. AF-Zone:Interested in focusing area. 21 UNITE 200: User Guide...
  • Page 22 Protocol: Control protocol type. NR2D-Level: 2D noise reduction. Options: AUTO, VISCA, PELCO-D, Options: Off, Auto, 1 - 5 PELCO-P NR3D-Level: 3D noise reduction. V_Address: Protocol address. To be Options: Off, 1 - 8 decided according 22 UNITE 200: User Guide...
  • Page 23 Options: Yes, No NOTE: Press the [HOME] button to 8. RESTORE DEFAULT confirm. Select Restore Default in the main menu and press the [HOME] button. The RESTORE DEFAULT menu appears, as shown in the following figure: 23 UNITE 200: User Guide...

  • Page 24: Ip Function

    Ways to connect the camera and a find the camera’s IP address. computer are shown in the figures To change the camera’s IP address, below: use one of the methods as below: 24 UNITE 200: User Guide...
  • Page 25 (the login window may Method 2: Run “upgrade_En.exe”, not look exactly like this, depending change the IP address, and then on your operating system and click “Set”. The camera will restart. browser) : 25 UNITE 200: User Guide...
  • Page 26 Once you have set a domain name to camera, and forwarded the traffic to the traffic to the correct address and port number, then you can use a domain name to access camera. Access link: http://hostname: port 26 UNITE 200: User Guide...
  • Page 27 2) Rate: Vertical speed can be chosen as 1 - 24, horizontal direction at the rate of 1 - 20. Select corresponding speed click direction button to realize PTZ speed increase or decrease. 3) Zoom In/ Zoom out: for zooming 27 UNITE 200: User Guide...
  • Page 28 You can specify the size of the frame rate. Generally speaking, the greater the frame rate, the smoother the 1) Video format image; the smaller the frame rate, Supports 50HZ (PAL) and 60HZ the choppier the image. 28 UNITE 200: User Guide...
  • Page 29 The default value is 7. 6) Flip & Mirror Select Flip to turn the image upside down; select Mirror to flip the image horizontally. The default value for both is not selected. 7) Button 1) Brightness 29 UNITE 200: User Guide...
  • Page 30 5) Line in: change. The gain of the Line in. 6) Reserved 6.6. Network Setting, Click 7) Apply Button “Network.” Click "Apply" to save changes, or click "Cancel" discard changes. 6.5. System setting, please click 30 UNITE 200: User Guide...
  • Page 31 Camera control communication protocols include Visca address, Pelco-D address, Pelco-P address. 4) RTMP Setting When configuring camera stream, can set up two streams, in the two stream selection control code stream of "On", "Off", "Video", 31 UNITE 200: User Guide...

  • Page 32: Usb 3.0

    Unqualified Application  Do not shoot extremely bright objects for a long period of time, such as sunlight, strong light sources, etc.  Do not operate in unstable lighting conditions, otherwise image may flicker. 32 UNITE 200: User Guide...

  • Page 33: Troubleshooting

    Disconnect the camera from the network, ensure that the camera and PC are connected (either directly, using a crossover cable, or via a router or switch), and then follow the directions earlier in this guide for resetting the IP address. 33 UNITE 200: User Guide...
  • Page 34 Check the camera working mode. Check that the IR address of the Remote Commander is set camera correctly. Serial communication Check the camera working mode. cannot control Check that the control cable is connected correctly. camera 34 UNITE 200: User Guide...
