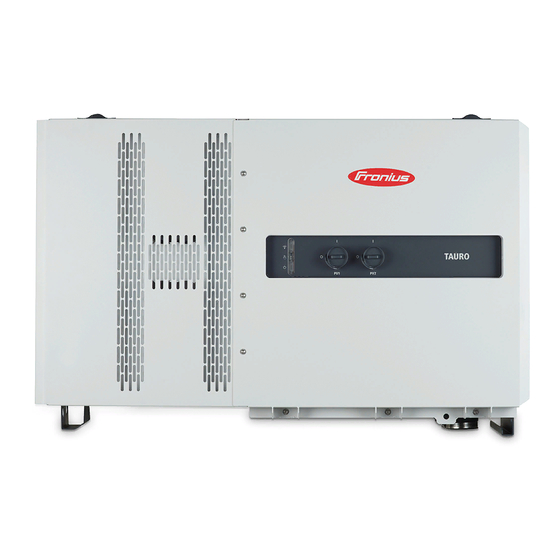

Fronius Tauro 50-3 Operating Instructions Manual
Hide thumbs
Also See for Tauro 50-3:
- Operating instructions manual (116 pages) ,
- Operating instructions manual (104 pages) ,
- Operating instructions manual (88 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Fronius Tauro 50-3
Summary of Contents for Fronius Tauro 50-3
- Page 1 / Perfect Charging / Perfect Welding / Solar Energy Operating instructions Fronius Tauro 50-3 Fronius Tauro ECO 50-3 Fronius Tauro ECO 99-3 Fronius Tauro ECO 100-3 42,0426,0307,EN 017-23112021 Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
-
Page 3: Table Of Contents
Cooling of the inverter through forced-air ventilation Power derating Control elements and connections Controls and displays PV connections - Tauro 50-3-D (direct) PV connections - Tauro Eco 50-3-D (direct) PV connections - Tauro Eco 99-3-D / 100-3-D (direct) PV connections - pre-combined... - Page 4 General comments regarding solar modules Permitted cables DC fuse protection - pre-combined Example of Fronius Tauro Eco 50-3-P / 99-3-P / 100-3-P combiner box Example Fronius Tauro 50-3-P combiner box Distribution of the solar module strings for the direct version...
- Page 5 I/O power management settings - 1 relay Appendix Status codes and remedy Status Codes Technical data Tauro 50-3-D / 50-3-P Tauro Eco 50-3-D / 50-3-P Tauro Eco 99-3-D / 99-3-P Tauro Eco 100-3-D / 100-3-P Explanation of footnotes Integrated DC disconnector...
-
Page 6: Safety Rules
Safety rules Explanation of WARNING! safety notices Indicates a potentially hazardous situation. ▶ If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage could occur. ▶ If not avoided, minor injury and/or damage to property may result. NOTE! Indicates a risk of flawed results and possible damage to the equipment. -
Page 7: Environmental Conditions
Environmental Operation or storage of the device outside the stipulated area will be deemed as not in conditions accordance with the intended purpose. The manufacturer accepts no liability for any damage resulting from improper use. Qualified person- The servicing information contained in these Operating Instructions is intended only for the use of qualified service engineers. -
Page 8: Protective Earthing (Pe)
The text and illustrations are all technically correct at the time of printing. We reserve the right to make changes. The contents of the operating instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any sugges- tions for improvement, or can point out any mistakes that you have found in the instruc- tions, we will be most grateful for your comments. -
Page 9: General Information
General information... -
Page 11: Description Of The Device
String fuses Only applies to device types Fronius Tauro 50-3-D / Eco 50-3-D / Eco 99-3-D / Eco 100-3-D (direct): String fuses are used in the Fronius Tauro to provide additional protection for the solar modules. -
Page 12: Fronius Solar.web
With Fronius Solar.web or Fronius Solar.web Premium, the PV system can be easily ar.web monitored and analysed by the system owner and installer. If configured accordingly, the inverter transmits data such as power, yields, load, and energy balance to Fronius Sol- ar.web. For more information see Solar.web - monitoring &... -
Page 13: Protection Of People And Equipment
Protection of people and equipment Safety WARNING! Danger due to incorrect operation and incorrectly performed work. This can result in serious injury and damage to property. ▶ All the work and functions described in this document must only be carried out by trained and qualified personnel. -
Page 14: Wsd (Wired Shutdown)
ICASA mark – tested in accordance with the requirements of the Independent Communications Authority of South Africa. CMIM mark – tested in accordance with IMANOR requirements for import regulations and compliance with Moroccan standards. Safety symbols: Risk of serious injury and property damage due to incorrect operation. Do not use the functions described here until you have fully read and under- stood the following documents: These Operating Instructions. -
Page 15: Surge Protective Device (Spd)
There is the option of a digital indication when an SPD has tripped. For setting this function, see PDF "Temporary SPD Triggering" in the Service & Support area at www.fronius.com IMPORTANT! After setting the function described above, the inverter will also respond if the 2-pole sig-... -
Page 16: Proper Use
Making any modifications to the inverter that have not been expressly approved by Fronius Installation of parts that are not distributed or expressly approved by Fronius The manufacturer shall not be liable for any damage resulting from such use. All war- ranty claims will be forfeited. -
Page 17: Functional Principle
Functional principle Functional prin- The inverter operates fully automatically. As soon after sunrise as there is sufficient en- ciple ergy available from the solar modules, the inverter starts checking the PV system (insu- lation measurement), and the grid (grid voltage and grid frequency). If all values are with- in the normative scope, automatic connection to the grid and feeding of energy into the grid takes place. -
Page 18: Control Elements And Connections
For further information about the button function, see Button func- tions and LED status indicator LED status indicator For further information about the LED status indicator, see Button functions and LED status indic- ator PV connections - Tauro 50-3-D (dir- ect) -
Page 19: Pv Connections - Tauro Eco 50-3-D (Direct)
PV connections - Tauro Eco 50-3-D (direct) PV connections - Tauro Eco 99-3- D / 100-3-D (dir- ect) PV connections - Tauro Eco 50-3-P / 99-3-P / 100-3-P Tauro 50-3-P pre-combined... -
Page 20: Optional Dc Disconnector Lock
Optional DC dis- With the optionally available DC discon- connector lock nector lock, the inverter can be secured against unintentional switching off. Mounting option Above the DC connection area there is for third-party space for mounting third-party compon- components ents. Components up to a maximum width of 14.5 cm (8 DU) can be mounted on the DIN rail. -
Page 21: Data Communication Area
Data communica- tion area Push-in terminal for the installation of Modbus 0, Modbus 1, 12 V and GND (ground). The data connection to the connected Modbus terminal components is established via the Mod- bus terminal. The inputs M0 and M1 can be selected for this purpose. -
Page 22: Internal Schematic Connection Diagram Of The Ios
Ethernet port for internal use only (sup- LAN 2 port). Push-in terminal for the WSD installa- WSD terminal tion. See chapter "WSD (wired shut- down)" on page 57. Power supply max. 1 A at 5 V. Software updates and data recording via USB is not possible. -
Page 23: Button Functions And Led Status Indicator
The status of the connection is shown via the communication LED. To establish the connection, carry out the individual steps in the Fronius Solar.web live app. Sensor functions 1x = WLAN access point (AP) is opened. Flashing blue 2x = WLAN Protected Setup (WPS) is activated. - Page 24 LED status indicator The network connection is being established via WPS. 2x = WPS search mode. Flashing green The network connection is being established via WLAN AP. 1x = WLAN AP search mode (active for 30 minutes). Flashing blue The network connection is not configured. Lights up yellow The inverter is operating correctly, a network fault is indicated.
-
Page 25: Installation And Commissioning
Installation and commissioning... -
Page 27: Installation Location And Position
Installation location and position Choosing the loc- Please note the following criteria when choosing a location for the inverter: ation of the in- Only install on a solid, non-flammable surface verter 0 - 100 % -40 °C - +65 °C -30 °C - +65 °C - Option AC-Disconnect Max. -
Page 28: Installation Position
The inverter is suitable for outdoor installation. To keep the heating of the inverter as low as possible, it is better not to expose the inverter to direct sunlight. Mount the inverter in a protected location, for example below the solar modules or under a roof over- hang. - Page 29 The inverter is suitable for installation on a sloping surface. Do not install the inverter on a sloping surface with its connection sockets at the top. Do not install the inverter at an angle on a vertical wall or column. Do not install the inverter horizontally on a vertical wall or pillar.
-
Page 30: Transport
Transport Crane transport WARNING! Danger of serious injury and damage from articles being dropped or falling over. When transporting by crane: ▶ Hook chains and ropes onto the sus- pension points only ▶ Always hook chains and ropes onto both suspension points Transporting by WARNING! counterbalanced... -
Page 31: Mounting The Inverter
Mounting the inverter Selecting the fix- Use the corresponding fixing materials depending on the subsurface and observe the ing material screw dimension recommendations for the mounting bracket. The installer is responsible for selecting the right type of fixing. Mounting bracket Dimensions of the mounting bracket - all dimensions in mm. -
Page 32: Mounting The Inverter On The Wall
Mounting the in- verter on the wall Observe the local regulations for lifting heavy loads or use a crane to lift the device (attach to crane-hoist- ing lugs) To attach the inverter to the mounting bracket, use only the screws included in the scope of delivery. -
Page 33: Mounting The Inverter On Floor Racks
Mounting the in- The floor racks can be ordered as an op- verter on floor tional accessory. racks Mounting the inverter on a horizontal mounting surface is not mandatory, but re- commended. Depending on the surface, different wall plugs and screws are required for floor mounting the floor racks. -
Page 34: Connecting The Inverter To The Public Grid (Ac Side)
Connecting the inverter to the public grid (AC side) Monitoring the IMPORTANT! To provide the best possible grid monitoring, the resistance in the leads to grid the mains connections should be as low as possible. AC connection IMPORTANT! Only the following cables may be connected to V-type terminals: area RE (solid round conductor) RM (stranded round conductor) -
Page 35: Connecting Aluminium Cables
Select sufficiently high cable cross sections depending on the power category and connection option! Power category Connection option Cable cross section Singlecore / Multicore 35 - 240 mm Tauro 50-3 AC disconnector option 35 - 240 mm Tauro Eco 50-3 Daisy Chain (without AC discon- 35 - 240 mm nector) -
Page 36: Maximum Alternating Current Fuse Protection
The inverter can be used with max. an automatic circuit breaker 355 A. Inverter Phases Nominal output Maximum output over- current protection Fronius Tauro 50-3 50 kVA 3 x 355 A Fronius Tauro Eco 50-3 50 kVA 3 x 355 A Fronius Tauro Eco 99-3 99.99 kVA... -
Page 37: Safety
CAUTION! Danger from faulty or incorrect holes. This may lead to injuries to the eyes and hands as a result of flying debris and sharp edges, as well as damage to the inverter. ▶ When drilling, wear suitable protective goggles. ▶... -
Page 38: Opening The Inverter
CAUTION! Risk of damage to the inverter as the result of incorrectly tightened cable connec- tions. Incorrectly tightened cable connections can cause heat damage to the inverter that may result in a fire. ▶ When connecting AC and DC cables, ensure that all the cables are tightened to the inverter terminals with the specified torque. -
Page 40: Connecting The Inverter To The Public Grid - Multicore
Connecting the When connecting, ensure that the phases are in the correct order: PE, N, L1, L2 and L3. inverter to the public grid - Mul- ticore... -
Page 41: Connecting The Inverter To The Public Grid - Daisy Chain
Secure to the torque specified by the manufacturer of the strain-relief device. The strain-relief device is not part of the scope of supply. Secure to the torque specified by the manufacturer Connecting the Ensure that the phases are connected in the right order: PE, N, L1, L2 and L3. inverter to the public grid - Daisy Chain... -
Page 43: Connecting Cables With A Cable Lug
Connecting Alternatively, a cable with a cable lug can be connected to the M12 threaded bolts on the cables with a grid connections in order to connect the cables to the V-type terminals. cable lug... -
Page 44: Connecting The Pv Cable To The Inverter
Connecting the PV cable to the inverter Safety WARNING! Danger due to grid voltage and DC voltage from solar modules that are exposed to light. An electric shock can be fatal. ▶ Prior to any connection work, disconnect the inverter on the AC side and the DC side. -
Page 45: General Comments Regarding Solar Modules
Select sufficiently high cable cross sections depending on the device type! Power category Device type Cable cross section pre-combined 25 - 95 mm Tauro 50-3 / Eco 50-3 / 2,5 - 10 mm² (see Eco 99-3 / Eco 100-3 direct data sheet for con- nector) -
Page 46: Dc Fuse Protection - Pre-Combined
DC fuse protec- CAUTION! tion - pre-com- bined Risk of damage to the inverter as the result of incorrectly fused PV lines. PV lines for the "pre-combined" model that are not fused can cause damage to the in- verter. ▶ PV lines must be fused in a combiner box before the inverter ("pre-combined"... -
Page 47: Example Fronius Tauro 50-3-P Combiner Box
Example Fronius PV 1 PV 2 PV 3 Tauro 50-3-P combiner box PV 1.1 PV 1.2 PV 1.n PV 2.1 PV 2.2 PV 2.n PV 3.1 PV 3.2 PV 3.n * SPD * SPD * SPD * DC * DC... -
Page 48: Connecting Pv Cables - Mc4 Connector
Connecting PV Connect the PV cables from the solar cables - MC4 con- modules to the MC4 connectors as la- nector belled Unused MC4 connectors on the inverter must be covered with the cover plates supplied with the inverter. MC4 connector To protect the MC4 connectors, a cover plate can be mounted on the inverter. -
Page 49: Connecting Pv Cables - Pre-Combined
Connecting PV Solar module strings that are combined in a DC combiner box, must, according to the cables - Pre-com- applicable national regulations, be fused per string in the DC combiner box! bined Before working in the connection area of the inverter, the DC voltage must be switched off. -
Page 50: Connecting Cables With A Cable Lug
The following string fuses should be used for the -D (direct) version of the Fronius Tauro: ▶ Max. 10 A per string → use of 15 A gPV fuse 1000 V possible (Fronius item num- ber: 41,0007,0230 - fuse 15 1000 F PV 15A) ▶... - Page 51 Fronius Tauro 50-3-D string 1.1 - 3.7 / Fronius Tauro Eco 50-3-D string 1.1 - 2.7 / Fronius Tauro Eco 99 / 100-3-D string 1.1 - 2.7 Check values! Only replace faulty fuses with new ones of the same rating.
-
Page 52: Closing And Switching On The Inverter
Closing and switching on the inverter... - Page 53 WARNING! Danger due to DC disconnectors that are not switched on properly This can result in serious injury and damage to property. ▶ Turn all existing DC disconnectors to the ON position before turning on the AC con- nection. ▶ The DC disconnectors may only ever be actuated simultaneously (one immediately after the other).
-
Page 54: Connecting The Data Communication Cable
0.14 - 1.5 0.14 - 1.5 0.14 - 1.5 30 m ductor pos- 10 mm 0.14 - 1 mm sible LAN connections Fronius recommends at least CAT 5 STP (Shielded Twisted Pair) cables and a maximum distance of 100 m. -
Page 55: Multiple Inverters In One Network
The network cabling of the inverters must be in a star arrangement. Observe the maxim- in one network um lengths and requirements for the cable! Routing data To use the connection to Fronius Solar.web or Modbus TCP, each Tauro must be con- communication nected directly to the network via LAN. cables... - Page 56 Open up the sealing ring at the location where the blanking plug is to be removed. * Liberate the blanking plug by moving it sideways. Guide the data cables first through the strain-relief device cap nut and then through the housing opening. Insert the sealing ring between the cap nut and the housing opening.
-
Page 57: Wsd (Wired Shutdown)
Connect the data cables to the data com- munication area using a movement loop, and fasten the cap nut with min. 2.5 to max. 4 Nm. WSD (wired shut- IMPORTANT! down) The push-in WSD terminal in the inverter's connection area is delivered with a bypass ex works as standard. -
Page 58: Using For The First Time
Installation with The "Fronius Solar.start" app is needed for this installation method. Depending on the the app end device with which the installation will be carried out, download the app for the re- spective platform. -
Page 59: Installation Using The Web Browser
The network wizard and the product setup can be carried out independently of each oth- er. A network connection is required for the Solar.web installation wizard. Installation using WLAN: the web browser Open the access point by touching the sensor once →... -
Page 60: Switch Off Power To The Inverter
Switch off power to the inverter Switch off power Turn off the automatic circuit breaker. to the inverter Turn the DC disconnector to the "Off" switch position. To start up the inverter again, follow the steps listed above in reverse order. -
Page 61: Settings - Website Of The Inverter
Settings - website of the inverter... -
Page 63: User Settings
User settings User login Open the website of the inverter in your browser. In the “Login” menu, log in using your user name and password, or go to the “User” menu and click on the “User login” button and then log in with your user name and password. -
Page 64: Device Configuration
To ensure smooth operation in conjunction with other energy producers, it is important to install the Fronius Smart Meter at the feed-in point. The inverter and other producers must be connected to the public grid via the Fronius Smart Meter. -
Page 65: Psc Editor - Aus - Demand Response Modes (Drm)
"PSC editor - A value for the apparent power consumption and apparent power output can be entered AUS - Demand here for the Australia country setup. Response Modes (DRM)" Demand Re- Here you can enter a value for the apparent power input and the apparent power output sponse Modes for the Australia country setup. -
Page 66: System
Click on the "Save" button. Update All available updates are made available on the product page and in the "Download search" area under www.fronius.com Firmware update Drag the firmware file into the "Drag&Drop file here" field or select it using "Select file". -
Page 67: Licence Manager
Click the "Activate support user" button. The support user is activated. IMPORTANT! The support user only allows Fronius Technical Support to implement settings on the in- verter via a secure connection. The button "End support user access" deactivates the ac- cess. - Page 68 Remote maintenance access for the Fronius Support team is enabled. IMPORTANT! Remote maintenance access gives Fronius Technical Support exclusive access to the in- verter via a secure connection. Diagnostic data is transmitted here that can be used for troubleshooting purposes. Only enable remote maintenance access following a request...
-
Page 69: Communication
If a firewall is used for outgoing connections, the following protocols, server addresses and ports must be allowed for successful data transfer: Tcp fronius-se-iot.azure-devices.net:8883 Tcp fronius-se-iot-telemetry.azure-devices.net:8883 Tcp fronius-se-iot-telemetry.azure-devices.net:443 Udp sera-gen24.fronius.com:1194 (213.33.117.120:1194) Tcp froniusseiot.blob.core.windows.net:443 Tcp provisioning.solarweb.com:443 Tcp cure-se.fronius.com:443 LAN: Enter host name. -
Page 70: Modbus
It is possible to operate a connection via WLAN and via access point simultaneously. Modbus To use the Modbus TCP or the connection to Fronius Solar.web, each Tauro must be connected directly to the network via LAN. Modbus RTU interface 0 / 1... -
Page 71: Fronius Solar Api
Specification of a constant reactive power value Fronius Solar API The Fronius Solar API is an Ethernet-based, open JSON interface. When enabled, IOT devices on the local network can access inverter information without authentication. For security reasons, the interface is deactivated at the factory and should not be activated if it is not required for a third-party application (e.g. -
Page 72: Safety And Grid Requirements
≥ 0%. Example: there are 3 inverters in a system: 1x Fronius Tauro 100 kW, 2x Fronius Tauro 50 kW. The specified feed-in limit at the transfer point must not exceed 100 kW. Solution: the Fronius Tauro can be regulated to 0% output power to meet the feed-in limit. -
Page 73: Connection Diagram - 4 Relays
2 clicks = blue (contact closed) 3 x clicks = grey (not used) "Power factor (cos φ)" "ind" = inductive "cap" = capacitive "DNO feedback" when the rule is enabled, output “DNO feedback” (pin 1 recommended) must be con- figured (e.g. for operating a signalling device). For "Import"... -
Page 74: I/O Power Management
I/O power man- I/O Power Management agement settings V+/GND - 4 relays None None None None None DNO Feedback None not used None None DNO Rules IO control IO control Rule 1 IO control IO control Active Power Power Factor (cos φ) DNO Feedback Rule 2 Active Power... -
Page 75: Connection Diagram - 3 Relays
Connection dia- The ripple control signal receiver and the I/Os terminal of the inverter can be connected gram - 3 relays to one another in accordance with the connection diagram. If the distance between the inverter and the ripple control signal receiver exceeds 10 m, at least a CAT 5 cable is recommended and the shield must be connected at one end to the push-in terminal of the data communication area (SHIELD). -
Page 76: I/O Power Management Settings - 3 Relays
I/O power man- I/O Power Management agement settings V+/GND - 3 relays None None None None None DNO Feedback None not used None None DNO Rules IO control IO control Rule 1 IO control None Active Power Power Factor (cos φ) DNO Feedback Rule 2 Active Power... -
Page 77: Connection Diagram - 2 Relays
Connection dia- The ripple control signal receiver and the I/Os terminal of the inverter can be connected gram - 2 relays to one another in accordance with the connection diagram. If the distance between the inverter and the ripple control signal receiver exceeds 10 m, at least a CAT 5 cable is recommended and the shield must be connected at one end to the push-in terminal of the data communication area (SHIELD). -
Page 78: I/O Power Management Settings - 2 Relays
I/O power man- I/O Power Management agement settings V+/GND - 2 relays None None None None None DNO Feedback None not used None None DNO Rules IO control IO control Rule 1 None None Active Power Power Factor (cos φ) DNO Feedback Rule 2 Active Power... -
Page 79: Connection Diagram - 1 Relay
Connection dia- The ripple control signal receiver and the I/Os terminal of the inverter can be connected gram - 1 relay to one another in accordance with the connection diagram. If the distance between the inverter and the ripple control signal receiver exceeds 10 m, at least a CAT 5 cable is recommended and the shield must be connected at one end to the push-in terminal of the data communication area (SHIELD). -
Page 80: I/O Power Management Settings - 1 Relay
I/O power man- I/O Power Management agement settings V+/GND - 1 relay None None None None None DNO Feedback None not used None None DNO Rules IO control None Rule 1 None None Active Power Power Factor (cos φ) DNO Feedback Rule 2 Active Power Power Factor (cos φ) -
Page 81: Appendix
Appendix... -
Page 83: Status Codes And Remedy
This can result in serious injury and damage to property. ▶ Installing and connecting a surge protective device (SPD) must only be carried out by service personnel trained by Fronius and only within the scope of the respective technical regulations. ▶... -
Page 84: Technical Data
Technical data Tauro 50-3-D / Input data 50-3-P Maximum input voltage 1000 V (at 1000 W/m²/ -10 °C in an open circuit) Start-up input voltage 200 V MPP voltage range 400 - 870 V Number MPP-controller Maximum input current (I... -
Page 85: Tauro Eco 50-3-D / 50-3-P
Maximum efficiency 98.5% Safety class EMC emission class Pollution degree Permitted ambient temperature - 40 °C - +65 °C with built-in "AC disconnector" option -30 °C - +65 °C Permitted storage temperature - 40 °C - +70 °C Relative humidity 0 - 100% Sound pressure level (600 V 68.4 dB(A) (ref. - Page 86 Maximum input current (I ) Total 87.5 A DC max 75 A / 75 A PV1 / PV2 14.5 A per string (for D-version only) Max. short circuit current (I ) Total 178 A SC PV SC max 125 A / 125 A PV1 / PV2 20 A per string (for D-version only)
-
Page 87: Tauro Eco 99-3-D / 99-3-P
Weight 80 kg Protection devices DC disconnector Integrated Cooling principle Controlled forced-air ventila- tion RCMU Integrated DC isolation measurement Integrated Overload performance Operating point shift power limitation WLAN Frequency range 2412 - 2462 MHz Channels / power used Channel: 1-11 b,g,n HT20 Channel: 3-9 HT40 <18 dBm Modulation... - Page 88 Max. capacity of the PV generator against earth 19998 nF Output data Grid voltage range 180 - 270 V Rated grid voltage 220 V | 230 V Rated power 99.99 kW Rated apparent power 99.99 kVA Rated frequency 50 / 60 Hz Power factor cos phi 0 - 1 ind./cap.
-
Page 89: Tauro Eco 100-3-D / 100-3-P
Overload performance Operating point shift power limitation WLAN Frequency range 2412 - 2462 MHz Channels / power used Channel: 1-11 b,g,n HT20 Channel: 3-9 HT40 <18 dBm Modulation 802.11b: DSSS (1Mbps DBPSK, 2Mbps DQPSK, 5.5/11Mbps CCK) 802.11g: OFDM (6/9Mbps BPSK, 12/18Mbps QPSK, 24/36Mbps 16-QAM, 48/54Mbps 64-QAM) 802.11n: OFDM (6.5 BPSK,... - Page 90 Rated frequency 50 / 60 Hz Power factor cos phi 0 - 1 ind./cap. Grid connection 3~ NPE 380 / 220 V 3~ NPE 400 / 230 V Maximum output power 100 kW Rated power 100 kW Nominal output current / phase 151.5 A / 144.9 A Total harmonic distortion <...
-
Page 91: Explanation Of Footnotes
Modulation 802.11b: DSSS (1Mbps DBPSK, 2Mbps DQPSK, 5.5/11Mbps CCK) 802.11g: OFDM (6/9Mbps BPSK, 12/18Mbps QPSK, 24/36Mbps 16-QAM, 48/54Mbps 64-QAM) 802.11n: OFDM (6.5 BPSK, QPSK, 16-QAM, 64-QAM) Explanation of The values quoted are default values; the inverter is configured specifically to footnotes meet the needs of the country in question. - Page 92 Settings Rated op- Rated op- I(make) / Rated op- I(make) / erating erating I(break) erating I(break) voltage current (1.5x Ie) current (4x Ie) (Ue) (Ie) (Ie) [V d.c.] DC-PV1 DC-PV2 DC-PV1 DC-PV2 Rated breaking capa- city ≤ 500 187.5 187.5 187.5 187.5 1000...
-
Page 93: Applicable Standards And Guidelines
Compliance with 2014/53/EU Radio Equipment Directive (RED) The above table of technical data lists the frequency ranges and maximum HF transmis- sion power used by Fronius wireless products available for sale in the EU in accordance with Article 10.8 (a) and 10.8 (b) of the RED. -
Page 94: Service, Warranty Terms And Conditions And Disposal
To obtain the full warranty period for your newly installed Fronius inverter or storage sys- tem, please register at: www.solarweb.com. Disposal If your inverter is to be replaced, Fronius will take back the old device and arrange for it to be recycled in an appropriate manner.
