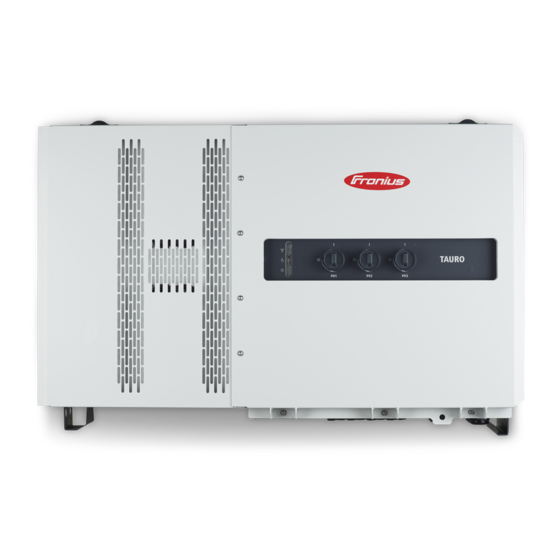

Fronius Tauro 50-3-D Quick Start Manual
Hide thumbs
Also See for Tauro 50-3-D:
- Quick start manual (12 pages) ,
- Operating instructions manual (104 pages) ,
- Operating instructions manual (116 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fronius Tauro 50-3-D
Summary of Contents for Fronius Tauro 50-3-D
- Page 1 Quick Start Guide Fronius Tauro 50-3-D / 50-3-P Eco 50-3-D / Eco 50-3-P Eco 99-3-D / Eco 99-3-P Eco 100-3-D / Eco 100-3-P manuals.fronius.com/ html/4204260307 FIND MORE INFORMATION 42,0410,2570 013-03062022...
- Page 2 (both hard copies enclosed with the product and documents provided online). When solar modules are exposed to light, they supply voltage to the inverter. This document does not describe all of the possible system configurations. Fronius International GmbH declares that the radio equipment type Fronius Tauro is in compliance with Directive 2014/53/EU.
- Page 3 PV-installaties die aan licht worden blootgesteld, leveren spanning aan de omvormer. Dit document beschrijft niet alle mogelijke systeemcon- figuraties. Fronius International GmbH verklaart hierbij dat het radiosysteem Fronius Tauro voldoet aan Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring is beschikbaar op het volgende internetadres: www.fronius.com TR: UYARI! Hatalı...
-
Page 4: Mounting Conditions
Transportation Mounting conditions Fronius Tauro Dimensions: 1109 x 346 x 755 mm 0 - 100 % -40 °C - +65 °C -30 °C - +65 °C - Option AC-Disconnect DUST DUST IP 65 Mounting Variant Wall... - Page 5 Mounting Variant Floor 3rd-party components area V-CLAMP size change V-CLAMP to cable gland Optional PE input The opening must be sealed! Secure to the torque specified by the manufacturer User manual...
- Page 6 Tauro 50-3 / Eco 50-3: 35 - 240 mm² Tauro Eco 99-3 / 100-3: 70 - 240 mm² Cable (min 90° C) cross section ≥ ≥ AC~ Variant Singlecore AC~ Variant Multicore...
- Page 7 Secure to the torque speci- fied by the manufacturer Secure to the torque speci- fied by the manufacturer AC~ Variant Daisy Chain...
- Page 8 Max. PV array to earth capacitance (nF) Tauro 50-3-D / Tauro 50-3-P / 10000 nF Tauro Eco 50-3-D / 50-3-P Tauro Eco 99-3-D / 19998 nF Tauro Eco 99-3-P Tauro Eco 100-3-D / 20000 nF Tauro Eco 100-3-P DC= Variant Precombined...
- Page 9 DC= MC4 alignment DC= fuse change DC= Variant MC4 fuses Eco 50-3-D / Eco 50-3-D 208-220 Eco 99-3-D / Eco 100-3-D 50-3-D Eco 99-3-D / Eco 100-3-D Standard Standard F1.1 - F3.7 F1.1 - F2.7 F3.1 - F3.8 Close Insert data cables if necessary...
- Page 10 Setup your PV system in a few minutes. Fronius Solar.start START INSTALLATION LOGIN Log in with your Fronius credentials (email adress & password) in order to get the most out of the PV System. Installing a new product does not require a Login.
- Page 12 Fronius International GmbH Froniusstraße 1 4643 Pettenbach Austria contact@fronius.com www.fronius.com Under www.fronius.com/contact you will find the adresses of all Fronius Sales & Service Partners and locations.
