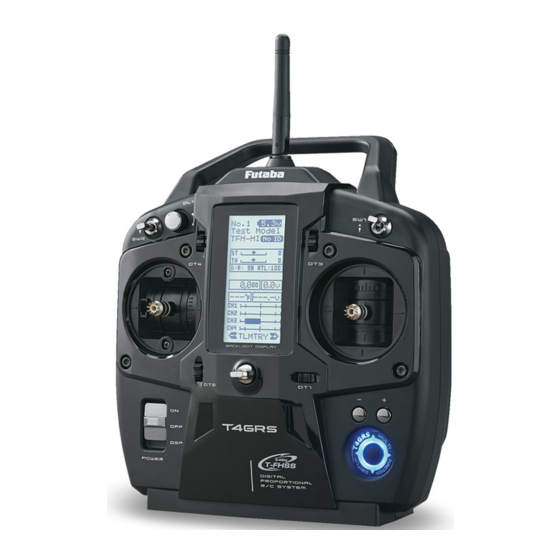

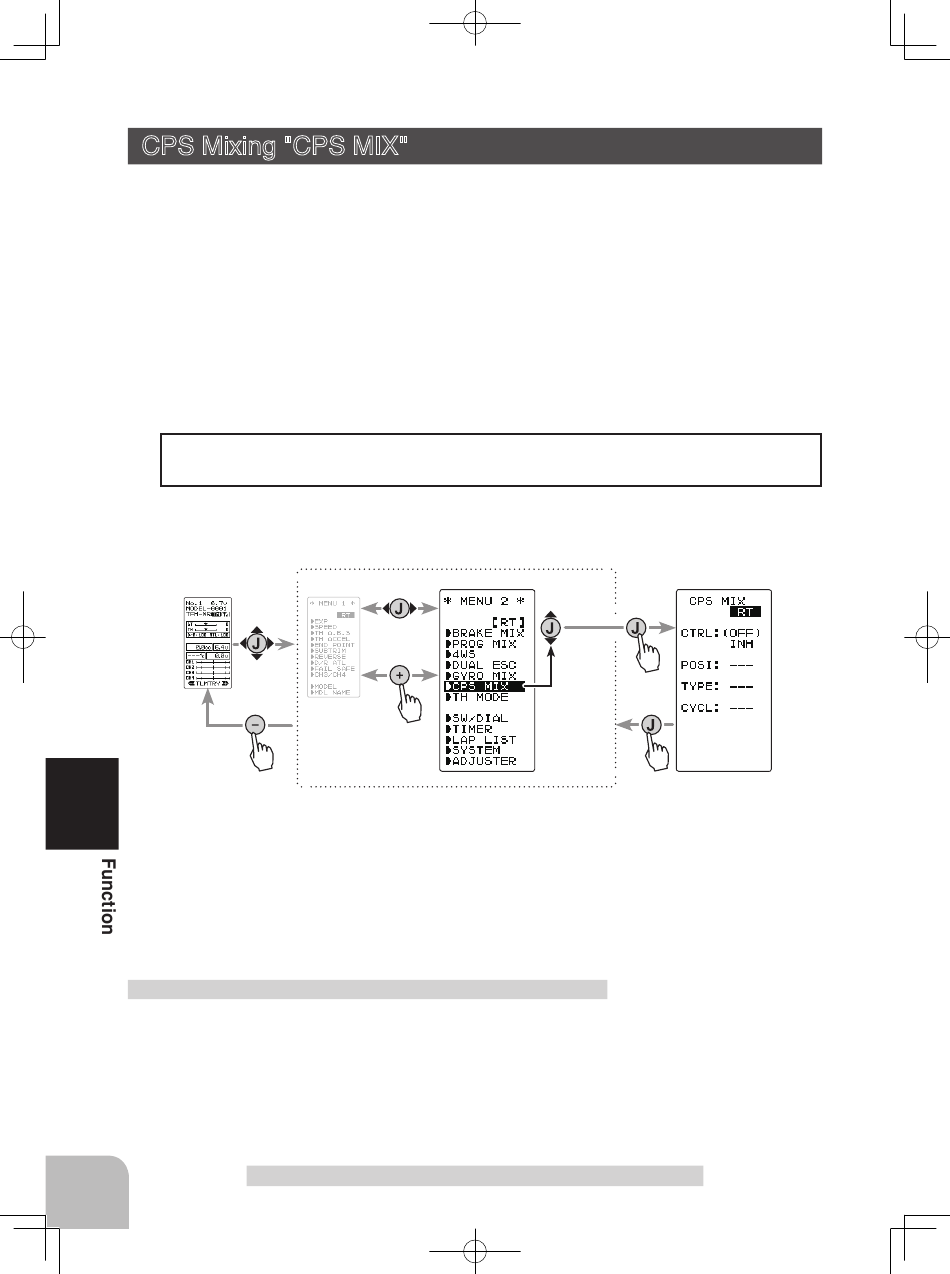

CPS Mixing "CPS MIX"
This function controls the Futaba CPS-1 channel power switch.
Normally, when using the CPS-1 unit to power the vehicle lights etc (LED) the CPS-
1 unit with LED connected is connected to a vacant switch channel and the LEDs are
turned on and off by the switch while the vehicle is running. However, when the CPS-
1 mixing (CPS MIX) function is used, the LED can be turned on and off and flashed in
step with steering and throttle operation, as well as being turned on and off by switch.
The flashing speed (cycle) can also be set.
For instance, the LED can be flashed as a brake light when the brakes are operated.
Setting Special mixings
When the 4th CH was set to ACT at Brake Mixing or when Dual ESC Mixing is used,
CPS mixing cannot be used.
Display "CPS MIX" screen by the following method:
(HOME screen)
Press
CPS mixing adjustment
(Preparation)
- Connect the CPS-1 to the 4th CH of the receiver.
- When the LEDs are turned on and off by switch, use the
function select switch dial function to set the switch to be
used.
86
(MENU 1 screen)
(MENU 2 screen)
Press
Setup items
MODE : Function ON/OFF, control mode
POSI : ON/OFF position
TYPE : ON/OFF type
TCYCL : Flashing speed
Gyro mixing "CPS MIX"
(CPS MIX screen)
Press
Select
"CPS MIX"
Press
Function SW
CH4
