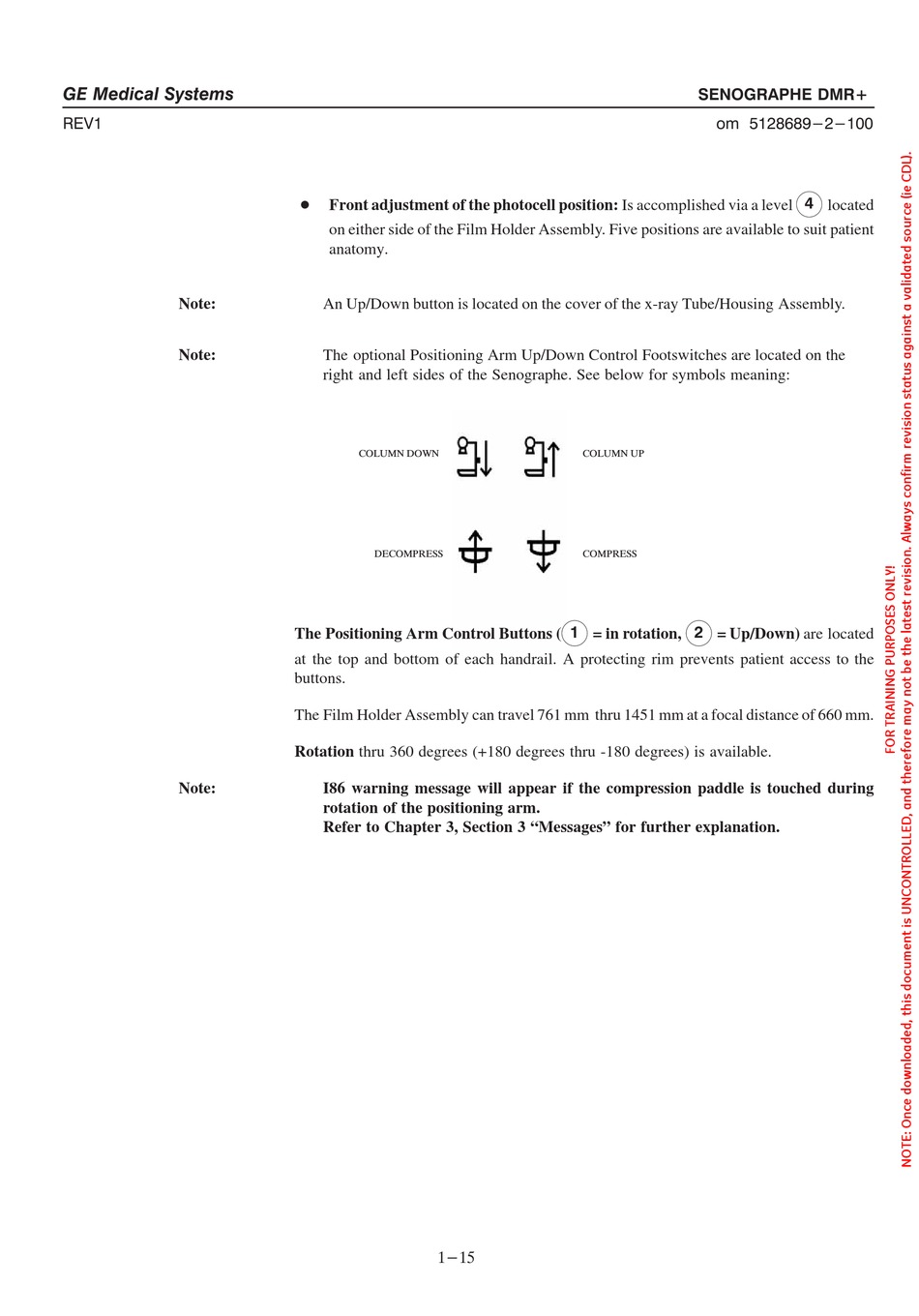

Front adjustment of the photocell position: Is accomplished via a level 4 located
D
on either side of the Film Holder Assembly. Five positions are available to suit patient
anatomy.
An Up/Down button is located on the cover of the x-ray Tube/Housing Assembly.
The optional Positioning Arm Up/Down Control Footswitches are located on the
right and left sides of the Senographe. See below for symbols meaning:
COLUMN DOWN
DECOMPRESS
The Positioning Arm Control Buttons ( 1 = in rotation, 2 = Up/Down) are located
at the top and bottom of each handrail. A protecting rim prevents patient access to the
buttons.
The Film Holder Assembly can travel 761 mm thru 1451 mm at a focal distance of 660 mm.
Rotation thru 360 degrees (+180 degrees thru -180 degrees) is available.
I86 warning message will appear if the compression paddle is touched during
rotation of the positioning arm.
Refer to Chapter 3, Section 3 "Messages" for further explanation.
