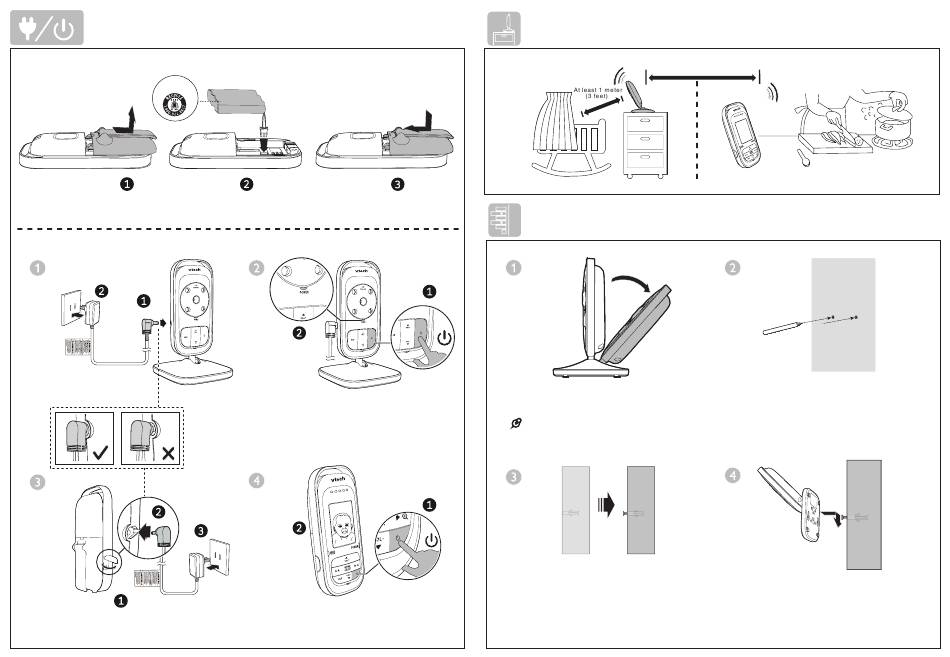

Install the battery, connect, and power on
THIS SIDE UP
1 2
2
1
2
3
1
3
1
2
1
2
Place the baby monitor
At least 1 meter (3 feet)
Mount the baby monitor
Adjust the baby unit angle.
Check for reception strength and
NOTE
camera angle before drilling the holes.
Drill two holes in the wall (7/32" drill bit).
If you drill the holes into a stud, insert
the screws into the holes.
Tighten the screws until only 1/4 inch of
the screws are exposed.
Use a pencil to mark two holes
in parallel. Make sure they are
the same distance apart as the
wall mount at the bottom of the
baby unit.
Align the holes on the wall mount
with the screws on the wall.
Slide the wall mount down until it
locks into place.
