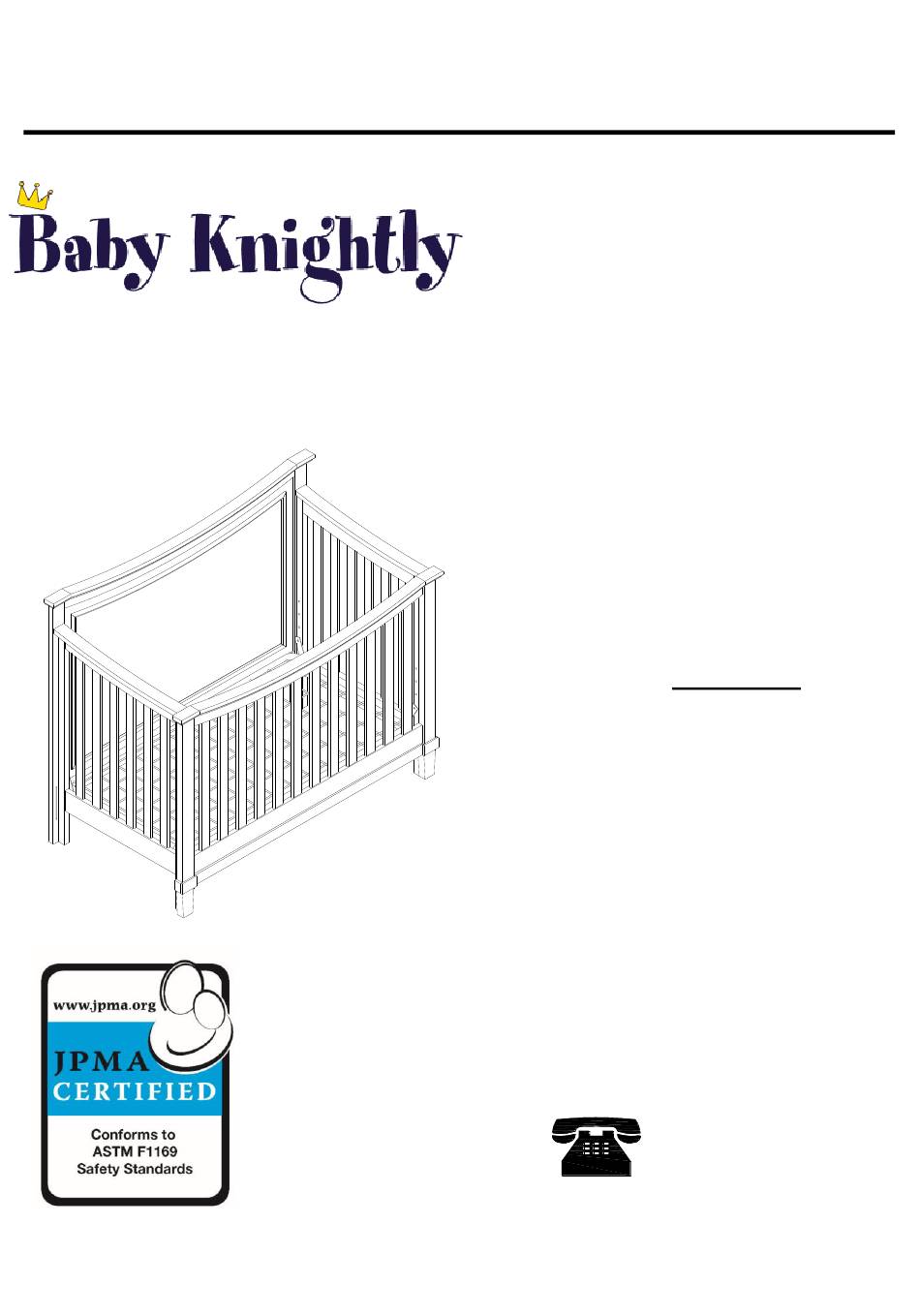

INSTRUCTION MANUAL
JACLYN 5 IN 1 CRIB
DA1504B4-B
DA1504B4-G
DA1504B4-V
0-65857-17057-3
0-65857-17054-2
0-65857-17051-1
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
_____________________________________
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
Model No:
UPC Code
SKU Number
39144035
39144023
39144009
Lot number:
(TAKEN FROM CARTON)
Date of purchase:
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTA
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRO
E-MAIL:DAS@DOREL.
(Black)
(Gray)
(Ivory)
(Black)
(Gray)
(Ivory)
(Black)
(Gray)
(Ivory)
NOTE:
charge.
Advertisement
Table of Contents
Related Manuals for Dorel Baby Knightly DA1504B4-B
Summary of Contents for Dorel Baby Knightly DA1504B4-B
- Page 1 If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge. NEED HELP! Tel #: 1-800-295-1980 CALL US FOR ASSISTA E-Mail: das@dorel.com 1-800-295-1980 Fax #: 514-353-7819 DO NOT RETURN PRO E-MAIL:DAS@DOREL.
- Page 2 Customer Service Department No. 413 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada, H1G 3L1 E-MAIL: das@dorel.com WARNING Failure to follow these warnings and assembly instructions could result in serious injury or death. Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
-
Page 3: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. -
Page 4: Hardware List
JACKLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V HARDWARE LIST Ø 1/4" X 15mm X 35mm Ø 1/4" X 15mm X 40mm BOLT BOLT 6 PCS 8 PCS Ø 1/4" X 15mm X 15mm MATTRESS SUPPORT BOLT ALLEN KEY 16 PCS 1 PC Ø... -
Page 5: Parts List
JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V PARTS LIST HEADBOARD LEFT SIDE PANEL RIGHT SIDE PANEL 1 PC 1 PC 1 PC FRONT PANEL BOTTOM RAIL MATTRESS SUPPORT 1 PC 1 PC 1 PC... - Page 6 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.
- Page 7 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V STEP 1 Attach left side panel (B) and right side panel (C) to headboard (A) with bolts (1) and spring washers (6). Use Allen Key (4) to tighten the bolts.
- Page 8 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V STEP 2 Attach mattress support (F) to the headboard (A) and side panels (B) & (C) with mattress support bolts (3) and spring washers (5). Use Allen key (4) to tighten the bolts (3). CORRECT CORRECT "THIS SIDE UP"...
- Page 9 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V STEP 3 Attach front panel (D) to the left and right side panels (B) & (C) with bolts (2) and spring washers (6) as shown. Use Allen key (4) to tighten bolts (2).
- Page 10 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V WARNINGS: * ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). * The toddler bed or day bed is not intended for children under 15 months of age or over 50 lbs (22.7 kgs).
- Page 11 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD ONLY) NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Attach a metal bedframe (not included) to the headboard (A) to convert your crib into a full size bed using the headboard only.
- Page 12 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V FULL SIZE BED ASSEMBLY INSTRUCTION (HEADBOARD AND FOOTBOARD) NOTE: FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAMS ARE FOR REFERENCE ONLY. BED RAILS MAY DIFFER FROM ILLUSTRATION. STEP 1 Attach standard size metal bedrails (not included) to headboard (A) and front panel (D) to convert your crib into a full size bed.
- Page 13 JACLYN 5 IN 1 CRIB DA1504B4-B / DA1504B4-G / DA1504B4-V Convert your crib into a toddler bed with the Toddler Bed Rail Conversion kit- model / SKU numbers DA1303-5-B / 39226988 (Black), DA1504-5-G / 39244025 (Gray) or DA1504-5-I / 39244001 (Ivory), sold separately. Convert your crib into a full size platform bed with the Bedrails-model / SKU numbers DA1303-8-B / 39326980 (Black), DA1504-8-G / 39344027 (Gray) or DA1504-8-I / 39344003 (Ivory), sold separately.
- Page 14 If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge. NEED HELP! Tel #: 1-800-295-1980 CALL US FOR ASSIST E-Mail: das@dorel.com 1-800-295-1980 Fax #: 514-353-7819 DO NOT RETURN PRO E-MAIL:DAS@DOREL...
- Page 15 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819 Request Date: Name: Shipping Address: Street &...
