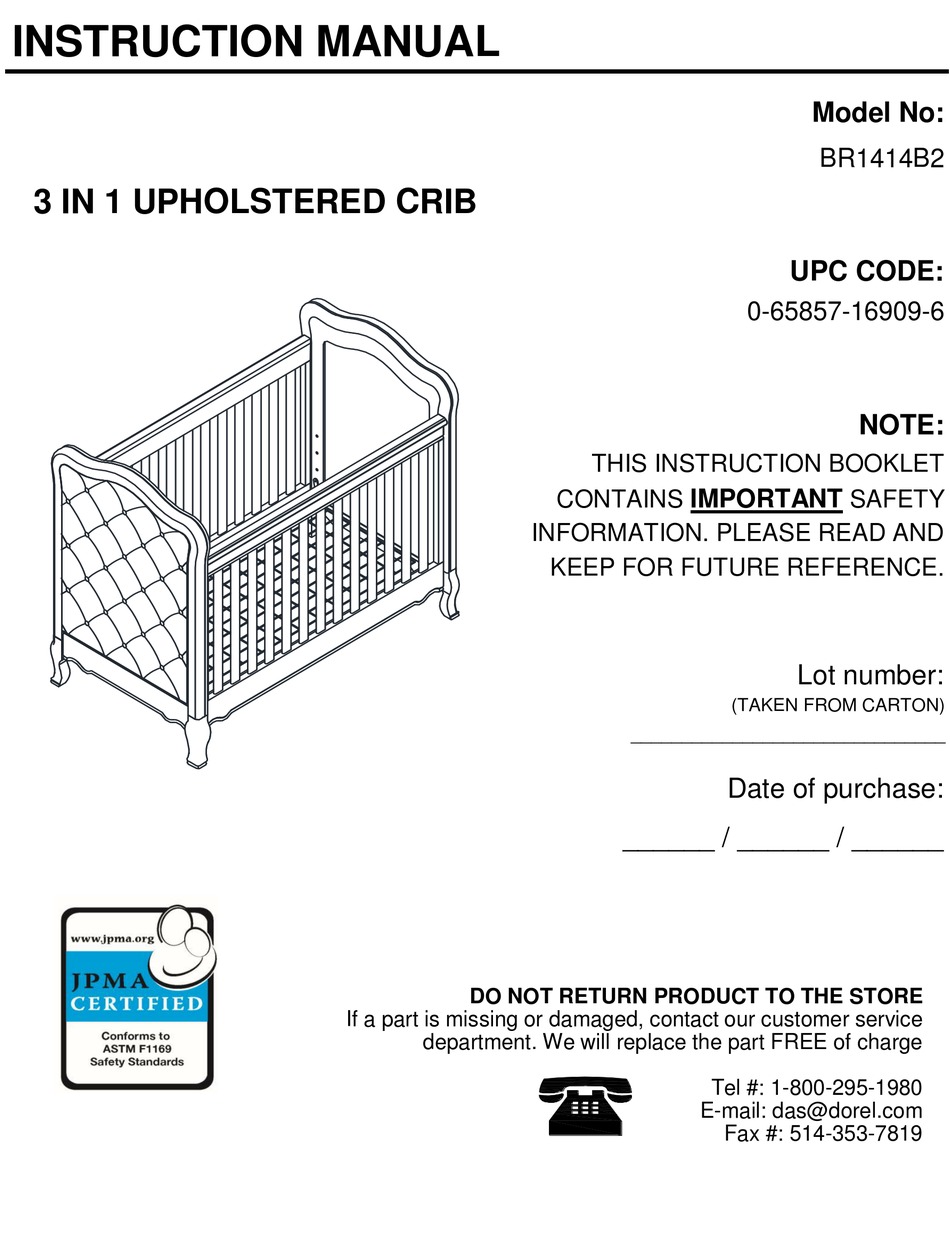

INSTRUCTION MANUAL
Model No:
BR1414B2
3 IN 1 UPHOLSTERED CRIB
UPC CODE:
0-65857-16909-6
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
_______________________________
Date of purchase:
______ / ______ / ______
DO NOT RETURN PRODUCT TO THE STORE
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR ASSISTANC
E-mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Advertisement
Table of Contents
Related Manuals for Dorel BR1414B2
Summary of Contents for Dorel BR1414B2
- Page 1 INSTRUCTION MANUAL Model No: BR1414B2 3 IN 1 UPHOLSTERED CRIB UPC CODE: 0-65857-16909-6 NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _______________________________ Date of purchase: ______ / ______ / ______...
- Page 2 Customer Service Department No. 413 12345 Albert-Hudon Boulevard, Suite 100 Montreal, Quebec Canada, H1G 3L1 E-MAIL: das@dorel.com WARNING Failure to follow these warnings and assembly instructions could result in serious injury or death. Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
-
Page 3: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 4: Hardware List
3 IN 1 UPHOLSTERED CRIB BR1414B2 HARDWARE LIST Ø10 X 40mm WOOD DOWEL ALLEN KEY 10 PCS 1 PC Ø1/4" X 15mm X 51mm Ø5/16" X 13 X 1.5mmT BOLT SPRING WASHER 14 PCS 14 PCS 30 X 15mm X 7.5mm Ø1/4"... -
Page 5: Parts List
3 IN 1 UPHOLSTERED CRIB BR1414B2 PARTS LIST SIDE PANEL FRONT/BACK PANEL BOTTOM RAIL 2 PCS 2 PCS 1 PC MATTRESS SUPPORT 1 PC... - Page 6 3 IN 1 UPHOLSTERED CRIB BR1414B2 CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.
- Page 7 3 IN 1 UPHOLSTERED CRIB BR1414B2 STEP 1 Insert wood dowels (1) into side panels (A). Attach front/back panel (B) to side panels (A) with bolts (3), spring washers (4) and Allen key (2) as shown. Do not fully tighten the bolts.
- Page 8 3 IN 1 UPHOLSTERED CRIB BR1414B2 STEP 2 Attach the mattress support (E) to side panels (A) with mattress support bolts (6), spring washers (7) and Allen key (2). Do not fully tighten the bolts. CORRECT CORRECT "THIS SIDE UP" label...
- Page 9 3 IN 1 UPHOLSTERED CRIB BR1414B2 STEP 3 Repeat STEP 1 to attach the other front/back panel (B) to the side panels (A). Tighten all bolts from STEP 1 to STEP 3 with Allen Key (2). You've finished assembling your crib.
- Page 10 3 IN 1 UPHOLSTERED CRIB BR1414B2 WARNINGS: * ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A THICKNESS NOT EXCEEDING 6 INCHES (15CM). * The toddler bed or day bed is not intended for children under 15 months of age or over 50 lbs (22.7 kgs).
- Page 11 3 IN 1 UPHOLSTERED CRIB BR1414B2 Convert your crib into a toddler bed with the Uphosltered Crib Toddler Bed Conversion kit (model number BR1414-5) sold separately.
- Page 12 3 IN 1 UPHOLSTERED CRIB BR1414B2 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
- Page 13 MODEL#: BR1414B2 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
