Dorel happy pears Instruction Manual

3-in-1 portacot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

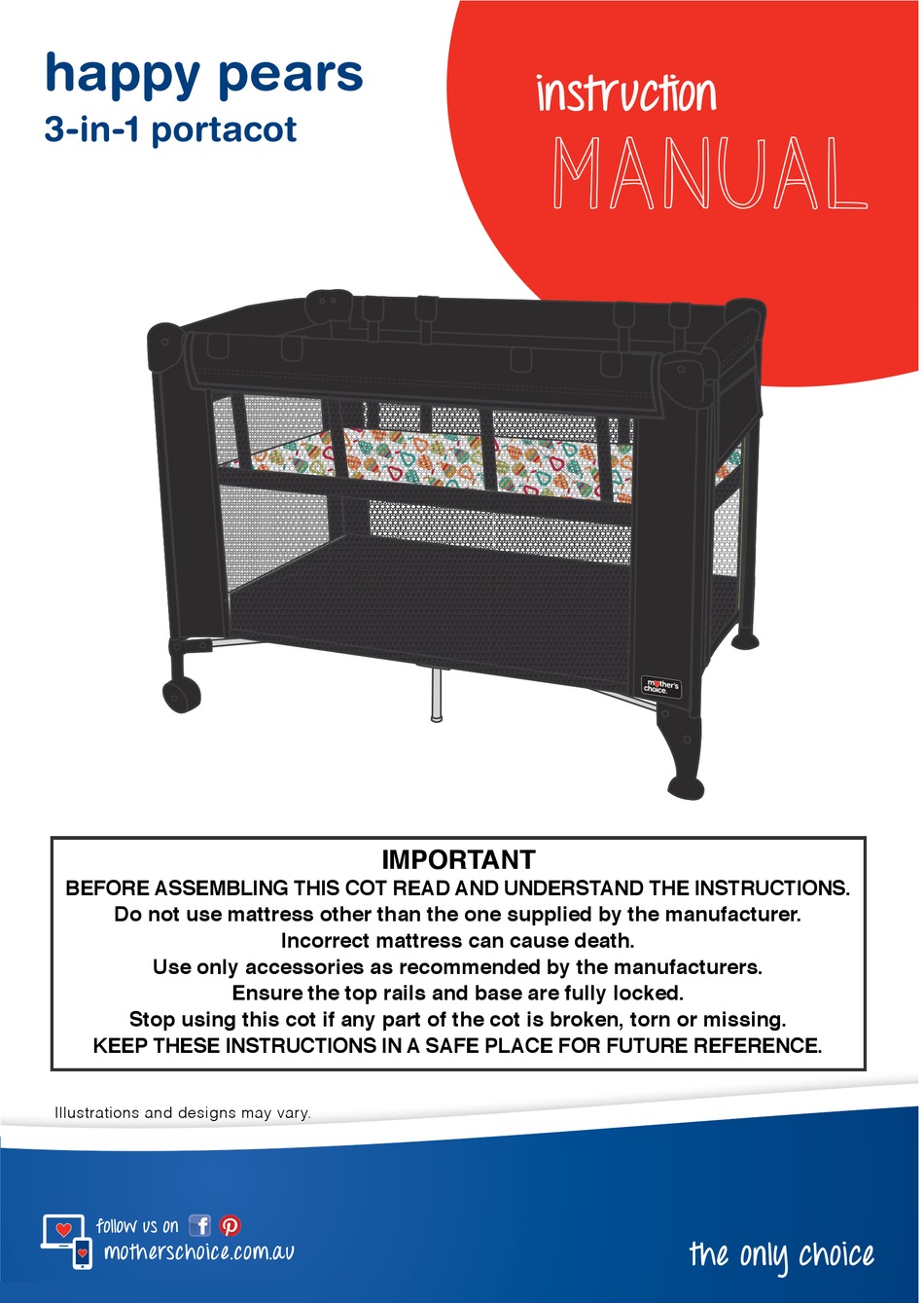

happy pears
instruction
3-in-1 portacot
manual
IMPORTANT
BEFORE ASSEMBLING THIS COT READ AND UNDERSTAND THE INSTRUCTIONS.
Do not use mattress other than the one supplied by the manufacturer.
Incorrect mattress can cause death.
Use only accessories as recommended by the manufacturers.
Ensure the top rails and base are fully locked.
Stop using this cot if any part of the cot is broken, torn or missing.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.
Illustrations and designs may vary.
follow us on
the only choice
motherschoice.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the happy pears and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel happy pears

Summary of Contents for Dorel happy pears

  • Page 1 3-in-1 portacot manual IMPORTANT BEFORE ASSEMBLING THIS COT READ AND UNDERSTAND THE INSTRUCTIONS. Do not use mattress other than the one supplied by the manufacturer. Incorrect mattress can cause death. Use only accessories as recommended by the manufacturers.

  • Page 2: Table Of Contents

    assembling the portacot Warnings 3 - 4 Components list contents Unfolding the portacot 6 - 8 Securing the mattress Installing the bassinette 10 - 11 Removing the bassinette Installing the changetable 12 - 13 using the portacot Folding the portacot 14 - 15 Operating the brakes caring for your portacot...

  • Page 3: Warnings

    These instructions detail the safe use, assembly and maintenance of your product. Please read these instructions carefully and ensure that they are followed at all times. WARNING COT USE: • USE ONLY THE MATTRESS SUPPLIED BY THE MANUFACTURER, INCORRECT MATTRESSES CAN CAUSE DEATH. •...
  • Page 4 FOR SAFE USE: (cont’d) • Never allow young children to play unsupervised in the vicinity of the folding cot. • Do not leave anything in the folding cot (such as toys) that provide a foothold to enable the child to climb out. •...

  • Page 5: Components List

    3-in-1 portacot components list A Portacot mattress D Portacot bassinette B Portacot E Carry bag C Bassinette support rods (x2) F Changetable (total components x4)

  • Page 6: Unfolding The Portacot

    3-in-1 portacot assembly getting started: • Remove the portacot from the carry bag. (Figure 1a). • Stand the portacot upright, release velcro tabs and set the mattress aside. (Figure 1b). Step 1: unfold the portacot • Move the four corners apart (Figure 1c),...
  • Page 7 3-in-1 portacot assembly Step 1: unfold the portacot (cont’d) • Grasp the centre of the two shorter top frame rails (Figure 1e), and lift upwards until they click into place (Figure 1f). • Repeat this step for the two long top rails (Figure 1g).
  • Page 8 3-in-1 portacot assembly Step 1: unfold the portacot (cont’d) • Check that the top rails are fully locked by pressing down on the centre of each rail (Figure 1h). • Push down on the raised centre mechanism (Figure 1i), until the base is flat and the lock clicks shut.

  • Page 9: Securing The Mattress

    3-in-1 portacot assembly Step 2: secure the mattress • Place mattress into the portacot with the padded side up (Figure 2a). • Secure each end of the mattress to the cot by threading the velcro tabs on the mattress...

  • Page 10: Installing The Bassinette

    3-in-1 portacot assembly Step 3: installing the bassinette • Remove the mattress from the portacot and put it aside. • Place the bassinette into the portacot. • Engage all secondary bassinette clips onto the portacot rim (Figure 3a).

  • Page 11: Removing The Bassinette

    3-in-1 portacot assembly Step 3: installing the bassinette (cont’d) • Secure each end of the mattress to the cot by threading the velcro tabs on the mattress through the corresponding slits in the bassinette base (Figure 3d), and securing on the under side.

  • Page 12: Installing The Changetable

    3-in-1 portacot assembly step 4: installing the changetable • Ensure each of the two support rods is within the pockets sewn into the portacot changetable. If they are not, slide them through (Figure 4a). insert • Position the changetable on the rails...
  • Page 13 3-in-1 portacot assembly step 4: installing the changetable (cont’d) • Pull the changetable side flap over the end of the portacot. • The changetable side flap is attached to the portacot by three press studs on the underside of the flap, (Figure 4d). press studs safety strap • The adjustable safety strap is provided to restrain your child whilst changing (Figure 4e).

  • Page 14: Folding The Portacot

    3-in-1 portacot using folding the portacot • Ensure both bassinette and changetable are removed. • Release the velcro tabs from the underside of the portacot base and remove the mattress. • Lift the centre of the mattress base frame until it is approximately 500mm above the floor (Figure 5a).
  • Page 15 3-in-1 portacot using folding the portacot (cont’d) • Push legs together (Figure 5d). Wrap the mattress base around the portacot and feed the velcro straps through the three loops (Figure 5e). • Insert portacot into carry bag and close zip.

  • Page 16: Operating The Brakes

    3-in-1 portacot using to operate brakes • Press Red wheel lock down to lock the portacot wheel. • Lift Red wheel lock up to unlock the portacot wheel. WARNING Before placing your child in the portacot, apply the brakes.

  • Page 17: Care And Maintenance

    3-in-1 portacot care and maintenance • Always store portacot indoors in a clean and dry place. • Check regularly for loose, damaged or broken parts, these should be tightened if loose and replaced if damaged or broken. • Removable covers may be hand washed or spot cleaned. Wash separately.

  • Page 18: Notes

    notes:...

  • Page 19: Product Registration

    mother’s choice tip... follow us on motherschoice.com.au Visit us online to register your new www.motherschoice.com.au/product-registration Mother’s Choice product. benefits of registration • Your safety - allows us to contact you with important product notifications. • Confirmation of ownership - provides a record in case of product loss or theft. • Improved product development - helps us continue to design products that meet your needs. to prevent loss or fading, please attach your receipt here:...

  • Page 20: Customer Service

    Email: customerservice@igc.co.nz Phone: 0800 628 000 (toll free) Hours: 8:00 am - 5:00 pm Monday to Friday Specifications are subject to change without notice. Copy or reproduction without permission is prohibited. © 2013 Dorel Australia Pty Ltd. All Rights Reserved. www.dorel.com.au...
