Dorel WM3239 Assembly Manual

Toddler bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

DOREL ASIA

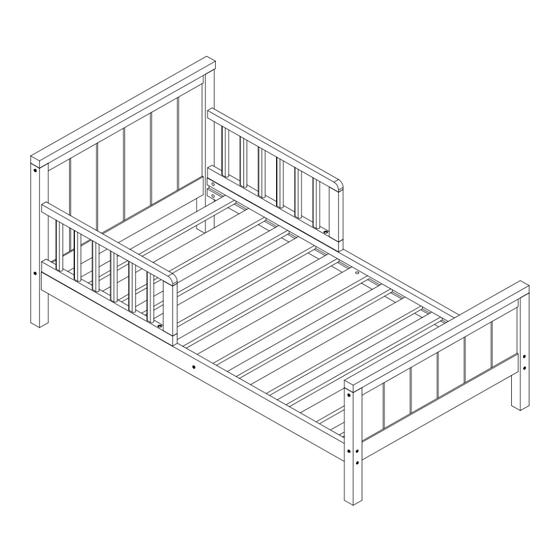

TODDLER BED
WM3239
WM3239E
WM3239W
WM3239:
WM3239E:
WM3239W:
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
DATE OF PURCHASE:
______ / ______ / ______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our
customer service department. We will
replace the part FREE of charge.
MODEL NO:
DARK CHERRY
ESPRESSO
UPC CODE:
0-65857-15352-1
0-65857-15670-6
0-65857-15671-3
INFORMATION. PLEASE
READ AND KEEP FOR
FUTURE REFERENCE.
LOT NUMBER:
(TAKEN FROM CARTON)
Tel # : 1-800-295-1980
E-Mail: das@dorel.com
Fax #: 514-353-7819
WHITE
NOTE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM3239 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorel WM3239

Summary of Contents for Dorel WM3239

  • Page 1 DOREL ASIA TODDLER BED MODEL NO: WM3239 DARK CHERRY WM3239E ESPRESSO WHITE WM3239W UPC CODE: WM3239: 0-65857-15352-1 WM3239E: 0-65857-15670-6 WM3239W: 0-65857-15671-3 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. LOT NUMBER: (TAKEN FROM CARTON)

  • Page 2: Care And Cleaning

    LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.

  • Page 3: Hardware List

    TODDLER BED WM3239 / WM3239E / WM3239W HARDWARE LIST Φ 1/4" x 1-3/4" Φ 1/4" x 2-3/4" HEX SOCKET HEAD BOLT HEX SOCKET HEAD BOLT 2 PCS 22 PCS Φ 1/4" x 1/2" BARREL NUT ALLEN KEY 10 PCS 1 PC Φ...

  • Page 4: Parts List

    TODDLER BED WM3239 / WM3239E / WM3239W PARTS LIST HEADBOARD POST TOP CROSS BOTTOM CROSS 2 PCS 2 PCS 2 PCS HEADBOARD PANEL FOOTBOARD PANEL FOOTBOARD POST 1 PC 1 PC 2 PCS LEFT SIDE RAIL RIGHT SIDE RAIL GUARDRAIL...
  • Page 5 TODDLER BED WM3239 / WM3239E / WM3239W STEP 1 Attach top cross (B) to the headboard post (A) using hex socket head bolt (2) as shown. Use Allen Key (4) to tighten the bolt. NOTE: Do not fully tighten bolt. This will facilitate assembly in the following steps.
  • Page 6 TODDLER BED WM3239 / WM3239E / WM3239W STEP 2 Use the bottom cross (C) with a warning label in this step. Insert wood dowels (5) into both ends of bottom cross (C). Insert bottom cross (C) to the headboard post (A). Ensure that headboard panel (D) rests inside the grooves of bottom cross (C).
  • Page 7 TODDLER BED WM3239 / WM3239E / WM3239W STEP 3 Attach top cross (B) to the footboard post (E) using hex socket head bolt (2) and Allen Key (4). NOTE: Do not fully tighten bolt. This will facilitate assembly in the following steps.
  • Page 8 TODDLER BED WM3239 / WM3239E / WM3239W STEP 4 Insert wood dowels (5) into ends of the bottom cross (C). Insert bottom cross (C) to the footboard post (E). Ensure that footboard panel (F) rests inside the grooves of bottom cross (C).
  • Page 9 TODDLER BED WM3239 / WM3239E / WM3239W STEP 5 Insert barrel nut (3) into the hole on the wide surface of center support slat (J). Ensure the barrel nut (3) is flush with center support slat (J). Attach center support slat (J) to right side rail (H) with hex socket head bolt (2) as shown. Use Allen Key (4) to tighten the bolt.
  • Page 10 TODDLER BED WM3239 / WM3239E / WM3239W STEP 6 Insert barrel nut (3) into the hole on the wide surface of center support slat (J). Ensure the barrel nut (3) is flush with center support slat (J). Insert the support slats (K & L) into the grooves of left side rail (G).
  • Page 11 TODDLER BED WM3239 / WM3239E / WM3239W STEP 7 Insert barrel nuts (3) into both ends of the left and right side rails (G & H). Attach the headboard and footboard to the left and right side rails (G & H) by threading hex socket head bolts (2) through the headboard posts (A) and footboard posts (E).
  • Page 12 TODDLER BED WM3239 / WM3239E / WM3239W STEP 8 Attach guardrails (I) to headboard posts (A) with hex socket head bolts (2). Attach the guardrails (I) to the left and right side rails (G & H) with hex socket head bolts (1) as shown.
  • Page 13 TODDLER BED WM3239 / WM3239E / WM3239W CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

  • Page 14: Do Not Return This Product To The Store

    MODEL #: WM3239 / WM3239E / WM3239W Customer Service DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...

This manual is also suitable for:

Wm3239wWm3239e
