Warranty .................................................................................................................................... 2
Tools Needed .............................................................................................................................. 3
Box Components ......................................................................................................................... 3
Hardware Components ................................................................................................................ 3
4th Rail Holder Assembly Attachment ........................................................................................... 4
Geared Rail Assembly .................................................................................................................. 5
Rail Attachment........................................................................................................................... 6
Fabric Attachment ....................................................................................................................... 6
Appendix A ................................................................................................................................. 7
Copyright January 1, 2016
Jim M. Bagley, GraceWood, Inc
(Reproduction Prohibited)
Version 2.1

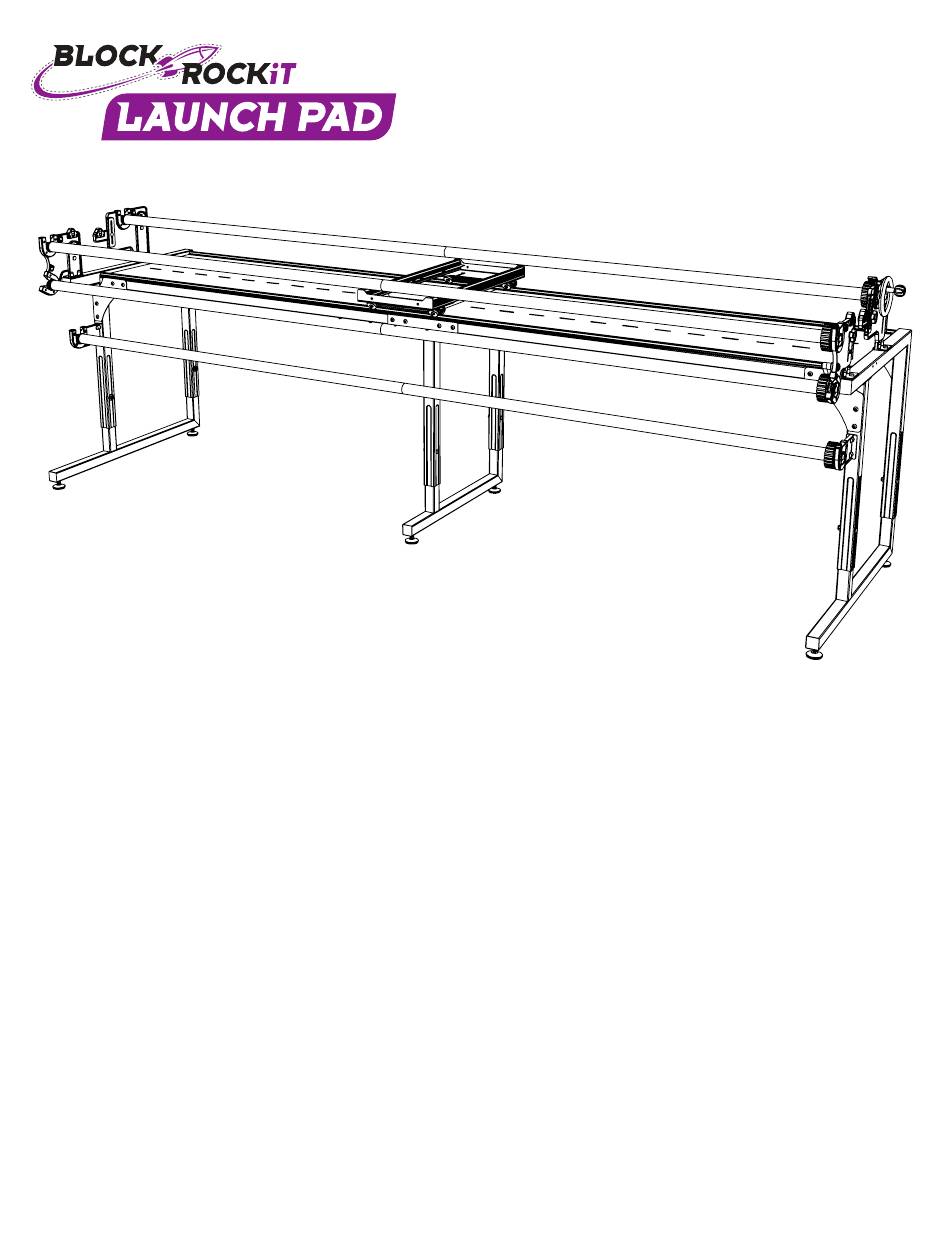

4th Rail Accessory
Instructions
Quilt Frame Assembly Instructions
1
Advertisement
Table of Contents
Related Manuals for Grace BLOCK ROCKiT
Summary of Contents for Grace BLOCK ROCKiT
- Page 1 4th Rail Accessory Instructions Quilt Frame Assembly Instructions Table of Contents Warranty ............................ 2 Tools Needed ..........................3 Box Components ......................... 3 Hardware Components ........................ 3 4th Rail Holder Assembly Attachment ................... 4 Geared Rail Assembly ........................5 Rail Attachment........................... 6 Fabric Attachment ........................
- Page 2 Warranty Information for your Launch Pad Quilting Frame The Launch Pad Quilting Frame has a One-Year limited warranty on all parts. The Grace Company will repair or replace, at its discretion, any part with problems due to our manufacturing, or defects in materials.
- Page 3 See Appendix for Part and Assembly Number References. Tools Needed Hardware Components 03-10742 03-10741 03-10167 03-11160 03-11159 Box Components 04-11005 01-A100175 01-A100184 01-A100181 01-A100182...
- Page 4 4th Rail Holder Assembly Attachment 03-11160 03-11159 01-A100184 03-10741 03-11159 03-11160 01-A100184...
- Page 5 Geared Rail Assembly 01-A100181 04-11005 01-A100175 04-11005 01-A100182 *INS-LP008 04-11005 03-10167 03-10167 Note: Leave the connector bolts attached to the coupler and unscrew the connector bolt inside the sleeve of the rail until tight. 100022 *INS-LP008 01-A100181 03-10742 *INS-LP008 01-A100182 03-10742...
- Page 6 Rail Attachment *INS-LP008 Fabric Attachment Backing Leader Top Leader Batting Take Up Leader Section 1-1: Tape the leaders to the rails and pin the fabric to the leaders. Tape the batting to the 4th Rail.
- Page 7 Appendix A Part Number Description 03-10742 6mm Allen Wrench 03-10741 5mm Allen Wrench 03-10167 4mm Allen Wrench 04-11005 38mm Rail 03-11160 M8 x 60mm SBHCS 03-11159 M8 Washer 20mm OD x 11mm ID x 1.5mm Assembly Description Number 01-A100175 Rail Coupler Assembly 01-A100181 Rail End Non-Ratcheting 01-A100182...
