Grizzly H3140 Owner's Manual

1" x 30" belt sander
Hide thumbs Also See for H3140:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL H3140
1" X 30" BELT SANDER
OWNER'S MANUAL
(For models manufactured since 06/02)
COPYRIGHT © FEBRUARY, 2009 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2020 (BL)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JB11475 PRINTED IN CHINA
V1.12.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H3140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly H3140

Summary of Contents for Grizzly H3140

  • Page 1 OWNER'S MANUAL (For models manufactured since 06/02) COPYRIGHT © FEBRUARY, 2009 BY GRIZZLY INDUSTRIAL, INC. REVISED DECEMBER, 2020 (BL) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Manual Accuracy ........................2 Contact Info ..........................2 Machine Description ........................2 Identification ..........................3 Machine Data Sheet ........................4 SECTION 1: SAFETY ........................6 Safety Instructions for Machinery ....................6 Additional Safety for Belt Sanders ..................... 8 SECTION 2: POWER SUPPLY ......................

  • Page 4: Introduction

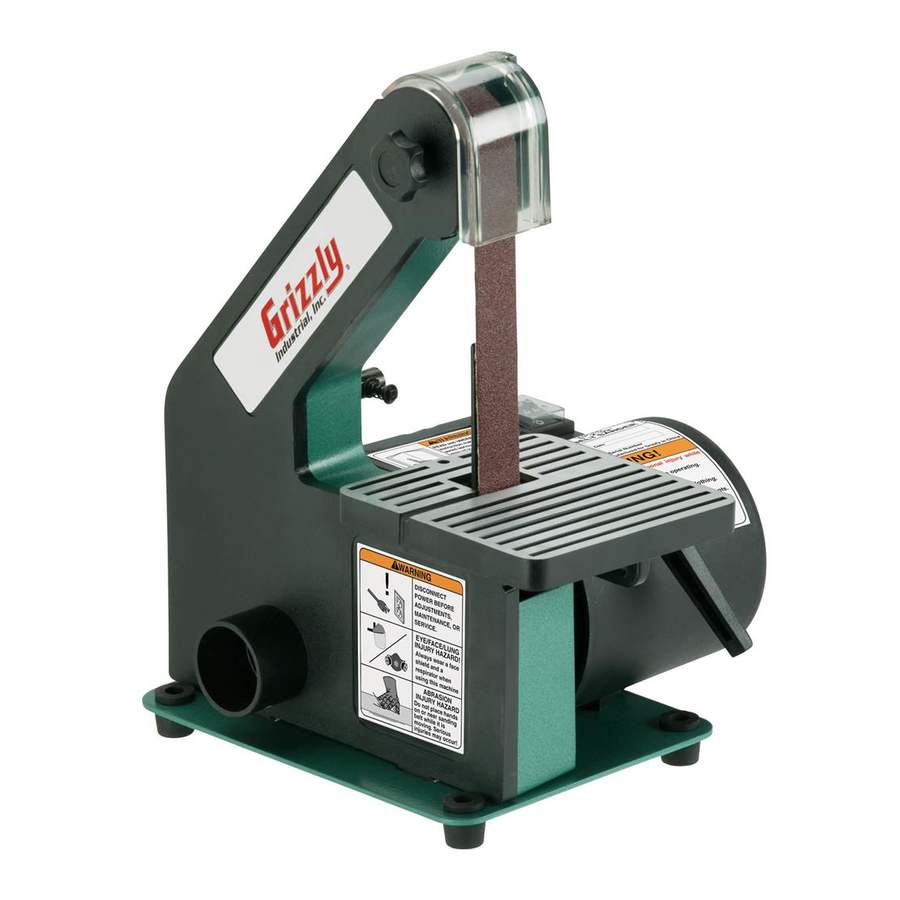

    The Model H3140 1" x 30" Belt Sander provides a moving abrasive surface that can be used to shape and contour small workpieces. By tilting the adjustable table, sanding operations can be per- formed on miter-cut, or other angled workpieces.

  • Page 5: Identification

    Release Knob ON/OFF Switch Table Stop Adjustment Bolt Motor Table Platen Table Tilt Lock Lever 2" Dust Port Foot Figure 1. Identification. To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model H3140 (Mfd. Since 6/02)

  • Page 6: Machine Data Sheet

    MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL H3140 1" X 30" BELT SANDER Product Dimensions: Weight................................10 lbs. Width (side-to-side) x Depth (front-to-back) x Height................11 x 9 x 13 in.
  • Page 7 The information contained herein is deemed accurate as of 12/22/2020 and represents our most recent product specifications. Model H3140 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model H3140 (Mfd. Since 6/02)

  • Page 8: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model H3140 (Mfd. Since 6/02)
  • Page 9 BEFORE ed operation, stop using the machine! Contact our ed operation, stop using the machine! Contact our operating machine. operating machine. Technical Support at (570) 546-9663. Technical Support at (570) 546-9663. Model H3140 (Mfd. Since 6/02)

  • Page 10: Additional Safety For Belt Sanders

    To avoid these hazards, keep all control when sanding force is applied. guards in place and closed. DO NOT wear loose clothing, gloves, or jewelry, and tie back long hair. Model H3140 (Mfd. Since 6/02)

  • Page 11: Section 2: Power Supply

    Model H3140 (Mfd. Since 6/02)
  • Page 12 Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -10- Model H3140 (Mfd. Since 6/02)

  • Page 13: Section 3: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 14: Inventory

    —Hex Bolt M8-1.25 x 25 ......1 Children and visitors may be seriously injured if unsuper- vised around this machine. Lock entrances to the shop or disable start switch or power connection to prevent unsupervised use. Figure 3. Inventory. -12- Model H3140 (Mfd. Since 6/02)

  • Page 15: Assembly

    Slide the table over the sanding belt, then This sander creates wood dust while operat- attach it to the machine base with the M8-1.25 ing. We recommend using the Model H3140 x 25 hex bolt, 8mm external tooth washer, with an adequate dust collection system.

  • Page 16: Test Run

    DO NOT start machine until all preceding setup instructions have been performed. Operating an improperly set up machine may result in malfunction or unexpect- ed results that can lead to serious injury, death, or machine/property damage. -14- Model H3140 (Mfd. Since 6/02)

  • Page 17: Section 4: Operations

    Read books/magazines or get formal training before beginning any proj- ects. Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable for accidents caused by lack of training. -15- Model H3140 (Mfd. Since 6/02)

  • Page 18: Operation Overview

    • Keep your workpiece moving across the width of the sanding belt to prevent grooves or ruts in the workpiece surface or excessive wear to the sanding belt. -16- Model H3140 (Mfd. Since 6/02)

  • Page 19: 0° Stop Adjustment

    (Figure 9). Machine Base Figure 10. Table gap. 0° Stop Adjustment The table on the Model H3140 has a 0° stop for quick horizontal positioning (perpendicular to the Figure 9. Table lock lever. sanding belt). To adjust the 0° Stop:...

  • Page 20: Sanding Belt Tracking

    Figure 12. Sanding belt tracking adjustment. Slowly adjust the tracking adjustment knob as necessary until the sanding belt tracks in the center of the top pulley. Note: Only minor adjustments are necessary to fine-tune the sanding belt tracking. -18- Model H3140 (Mfd. Since 6/02)

  • Page 21: Sanding Belt Replacement

    (Figure 14). the back of the belt. The Model H3140 is designed so that the sanding belt travels downward at the sanding table.

  • Page 22: Section 5: Accessories

    To reduce this risk, only install accessories severe respiratory illnesses. If you work around recommended for this machine by Grizzly. dust everyday, a half-mask respirator can be a lifesaver. Also compatible with safety glasses!
  • Page 23 Gun Treatment 12 Oz. Spray ® H3789—G96 Gun Treatment 4.5 Oz. Spray ® Figure 19. W1039 Universal Adapter. Figure 21. Recommended products for protect- ing unpainted cast iron/steel part on machinery. www.grizzly.com 1-800-523-4777 order online at or call -21- Model H3140 (Mfd. Since 6/02)

  • Page 24: Section 6: Maintenance

    SECTION 6: MAINTENANCE Cleaning To reduce risk of shock or accidental startup, always Cleaning the Model H3140 is relatively easy. disconnect machine from Vacuum excess sawdust, and wipe off the remain- power before adjustments, ing dust with a dry cloth. Wiping the table clean maintenance, or service.

  • Page 25: Section 7: Service

    3. Do not keep workpiece in one place for too long. Glazed sanding 1. Sanding wet stock. 1. Dry stock proper before sanding. surfaces. 2. Sanding stock with high residue. 2. Use different stock; change/clean sanding material often. -23- Model H3140 (Mfd. Since 6/02)

  • Page 26: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -24- Model H3140 (Mfd. Since 6/02)

  • Page 27: Wiring Diagram

    MOTOR 110 VAC 5-15 Plug Start Capacitor 12MFD 250VAC Neutral Ground Ground WARNING! SHOCK HAZARD! Disconnect power before working on wiring. Figure 22. H3140 wiring. READ ELECTRICAL SAFETY -25- Model H3140 (Mfd. Since 6/02) ON PAGE 24!

  • Page 28: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Main 33 34 31-1 9 10...
  • Page 29 PLASTIC SHIELD FOR UPPER WHEEL PH3140025 LOCKING STUD PH3140054 PHLP HD SCR M4-.7 X 10 PH3140026 LOCKING HANDLE PH3140055 POWER CORD BUY PARTS ONLINE AT GRIZZLY.COM! -27- Model H3140 (Mfd. Since 6/02) Scan QR code to visit our Parts Store.

  • Page 30: Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. -28-...

  • Page 31: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
