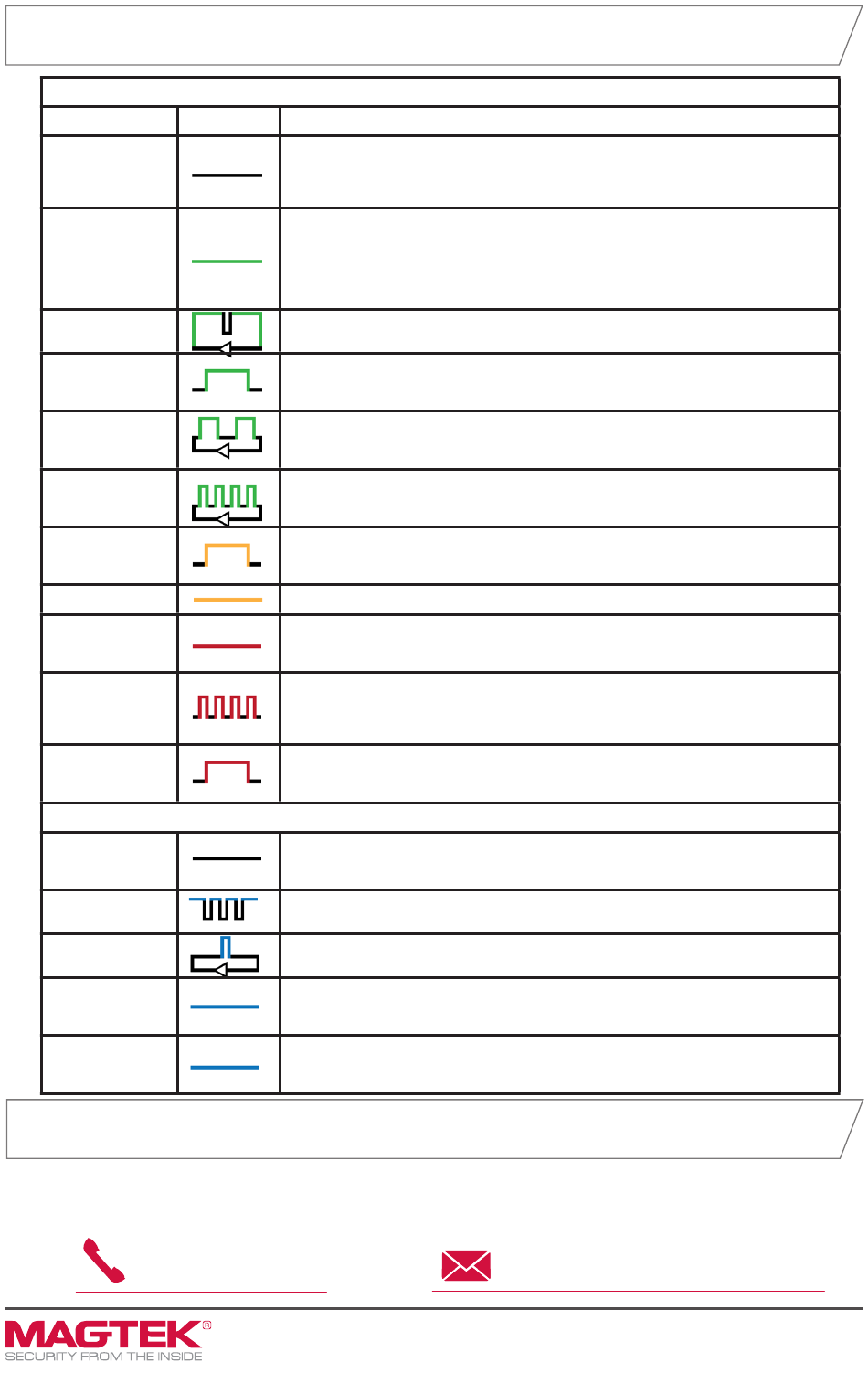

LEDs

General Status LED
Description Image
Off - black
Steady on - green
Mostly Solid -
green
One second on -
green
Slow blinking -
green
Rapid flashing -
green
One second on -
amber
Steady On
Steady on - red
Rapid flashing
- red
One second on
- red
Wireless Status LED
Off
Three flashes
- blue
Short flashing
- blue
Solid on - blue
Solid on - blue

Technical Support

When calling the support team please have your reader charged and have the part
number and serial number(s) available.
651.415.6800
Description
If powered by the battery, the device is waiting for a swipe, or the battery is completely
drained of power and needs to be recharged.
If the device is powered by USB and configured to require authentication, the device is
waiting for authentication. After authentication is established it will slowly blink green,
or will turn steady red if authentication fails.
If the device is powered by USB and not configured to require authentication, the
device battery is fully charged and the device is ready to read a card.
If powered by USB, the device is waiting for a swipe and the battery is charging.
The device has successfully decoded a swiped or inserted card.
If configured to require authentication, authentication has been established, device is
ready to read a card.
If operating in Wireless mode, reader has card data to send to the host, but the host
has not yet established a connection. Flashing will stop when the host establishes a
connection or after timeout waiting for connection (15-30 secs).
If operating in Wireless mode, reader has card data to send to the host, but sending has
failed.
The device is in tamper mode.
If powered by USB and the device is configured to require authentication, authenti-
cation has failed. Make sure you are connecting to the correct host, and check the
authentication configuration on the host.
When operating on battery power, a card has just been swiped but the battery must be
recharged. If there is enough battery power to transmit card data, expect the LEDs to
display standard card data statuses after one second. If followed by no other status, the
battery is too low to send data.
Device has failed to decode data on a swiped card. Try the swipe again.
If powered by the battery, the device is in Airplane Mode, Discoverable Mode, or
Connected Mode, or has completed one minute of Wireless advertising in Pairing
Mode, or the battery is completely drained of power and needs to be recharged.
The user has just pressed the pushbutton for 2 seconds and the device will transition to
Pairing Mode when the button is released.
The device is in Pairing Mode, is advertising and ready for a Wireless host to initiate
pairing.
The Wireless Status LED is lit when the pushbutton is pressed, to provide user feedback
that the pushbutton is working correctly.
The device can optionally be configured to light the Wireless Status LED whenever a
Wireless connection is active.
