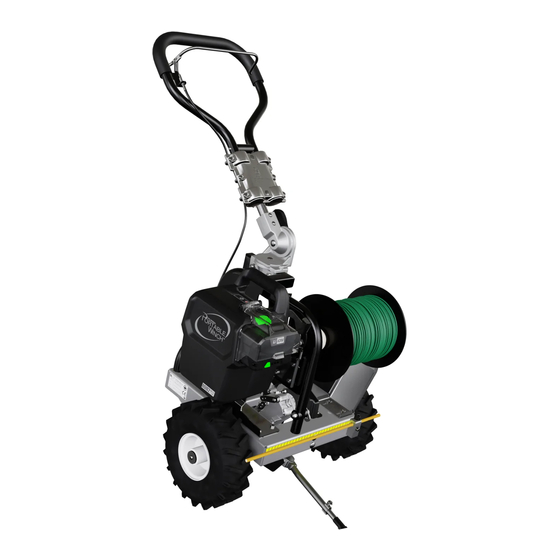

  • Page 1 WICHTIG: IMPORTANT: IMPORTANTE: IMPORTANT: IMPORTANT: BELANGRIJK: VIKTIG: VIKTIGT: Vor Gebrauch Read before Lea antes de Lire avant leggere prima lees voor Les før du Läs innan du lesen using usar usage dell'uso gebruik bruker använder CABLE LAYING MACHINE MACHINE À FILS KABELVERLEGUNGSMASCHINE USER GUIDE Betriebs-/Sicherheitshinweise...
  • Page 2 PROTECTED FROM THE WEATHER. DO NOT EXPOSE THE INTRODUCTION BATTERY OR CHARGER TO RAIN. Portable Winch Co. wishes to thank you for purchasing a NEVER CHARGE THE BATTERY IN A DAMP ENVIRONMENT. Perimeter Wire Machine 600MH-Li . This manual was written to help...
  • Page 3 Here is a non-exhaustive list of compatible battery models : 1.4.5 Warning label for potential dangers of the blade GREENWORKS PRO 80V – 2Ah. ● GREENWORKS PRO 80V – 4Ah. ● This warning label informs you of the following ● GREENWORKS COMMERCIAL 82V –...
  • Page 4 C) Press the battery in until you hear a ''click''. 2.2.1 Assembly The Perimeter Wire Machine 600MH-Li was completely assembled at the factory except for the following parts: blade, wire guide, sliding foot, blade pulley cover, wheels and handle. To ensure safe and appropriate operation, these parts must be attached securely.
  • Page 5 Installing the perimeter wire spool to be adjusted to fit the spool and to avoid unnecessary turning of the handle when The Perimeter Wire Machine 600MH-Li is designed to setting the reel tension. accommodate most wire spools provided by the manufacturers and third party resellers of robot lawnmowers.
  • Page 6 PWMA-0002) and 22.5 cm x 22.5 cm (part PWMA- 0003), available 2) Insert the wire in the guide wire tube; as optional accessories for the Perimeter Wire Machine 600MH-Li accepting this type of spool (up to 17.5 cm or 21 cm in diameter, 3) Push the wire until it emerges;...
  • Page 7 3.10 Transport designed to quickly and easily pivot as needed to turn tight corners. The best way to transport the 600MH-Li is to fold the handle forward parallel to the Follow the steps below : ground. With the foot stand folded, tilt the machine down until the handle is on the floor of the transport vehicle.
  • Page 8 4.1.1 Adjusting the engine belt Storage ● Loosen the 8 bolts without Always store the Perimeter Wire Machine 600MH-Li on its tires. removing them (Figure 1,2); Charger and battery (Sold separately). ● Using your hand, apply pressure to the engine mount until the belt 4.3.1 Charger...
  • Page 9 This is a diagnostic charger. The LED will flash in a specific order Additional information to indicate the battery's current status. (See figure). 5.1 Error codes Error codes are generated to identify the cause of the stoppage - the LEDs flash repeatedly. Here are the most common codes: Descriptions LED code Definitions...

  • Page 10: Declaration Of Conformity

    PORTABLE WINCH CO. LOCATED AT: covered by: 1170, Thomas-Tremblay st. Sherbrooke, QC J1G 5G5 ● 1 year warranty (serviced by Portable Winch Co. or retailers). CANADA Tel: +1 819 563-2193 Portable Winch Co. will repair or replace defective parts without www.portablewinch.com charge for parts or labour if the part fails due to a defect in materials or workmanship during the warranty period.
  • Page 11 APPENDIX...
  • Page 12 APPENDIX (70-0040)
  • Page 13 APPENDIX (70-0126)
  • Page 14 www.600mh.com info@portablewinch.com 1 888 388-7855 / +1 819-563-2193 Rev: 01 (2020-11-08) 44-0215-R01 Written and published in Canada...
