Time Guard ProgramaSTAT UFPT24 Operating Instructions Manual page 9

UPFT7 Programming Instructions

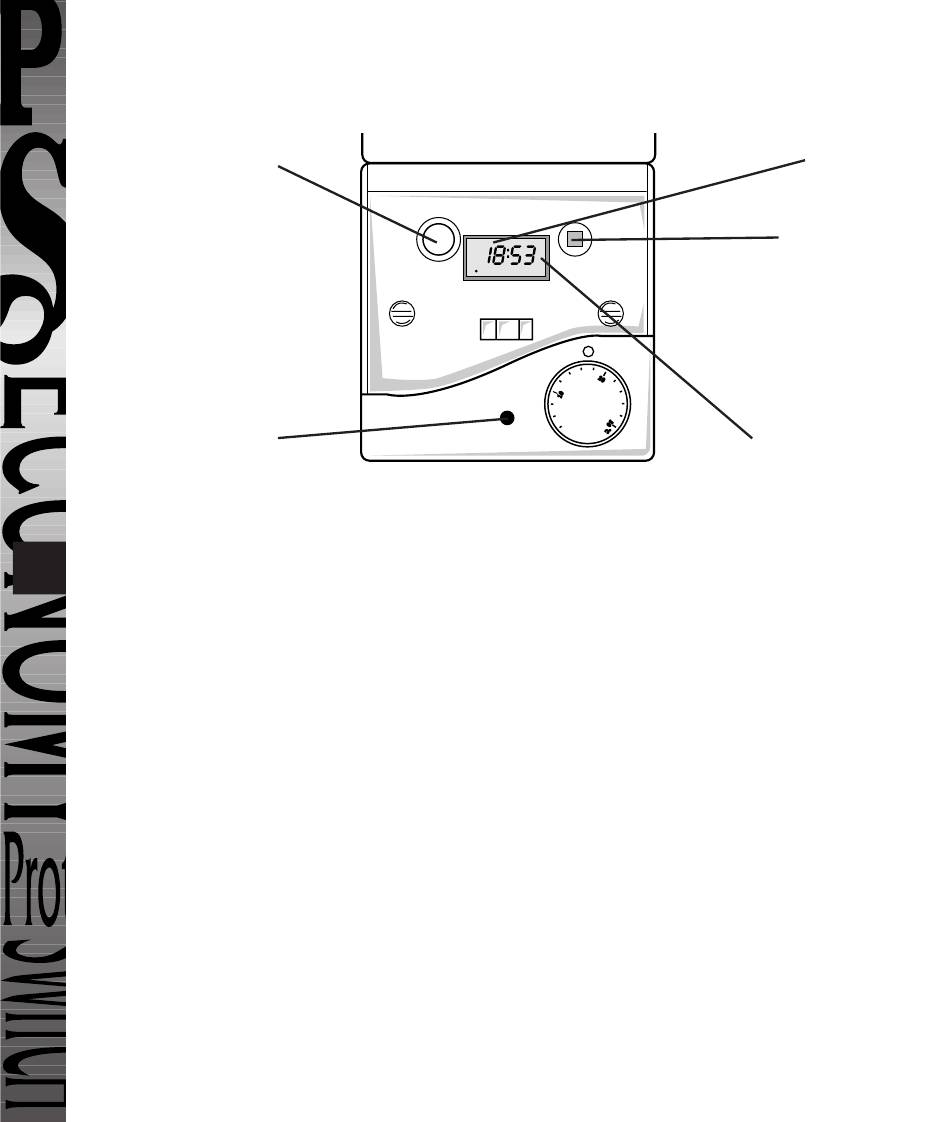

Change Button
sets days, hours, and minutes
and self cancelling override
Indicator showing when timed
output is ON or unit is
continuosly ON
Battery
8
This product has a factory fitted rechargeable battery. If the ProgramaSTAT is left with its mains
power switched off for more than 1 month the display may go blank. In this case switch mains
on, wait 4 hours, and apply reset - see 1 before programming.
Programming
This is a seven day (weekly) timeswitch which has six programmes, each of which can be block
programmed to work on all of the five weekdays, both weekend days, or all 7 days (24 hour
operation). Programmes can also be designated to operate on individual days. Only two setting
buttons are required, <Change> and <Program>. In normal use the <Change> button is used to
switch ON or OFF, overriding the timeswitch until the next programmed OFF or ON time.
During programming the <Change> button is used to set the hours, minutes and days. The
<Program> button is used to select the clock time and day or the 6 programmed ON/OFF times
and days and to review them once they have been set. Each time the <Program> button is pressed
the display will flash either the days, hours or minutes in turn, starting with the clock time and
day then the first ON time and day(s), first OFF time, second ON time and day(s) etc. Wherever
the days, hours or minutes are flashing they may be set using the <Change> button. Once set the
<Program> button is pressed again to proceed to the next stage.
ON
CHANGE PROGRAM
DAY 1 2 3 4 5 6 7
ON OFF AUTO
HEATING ON
24 hour digital
clock display
Programme Button
used to select the clock
time and day and the 6
ON/OFF programme
times and days and to
review them once set
Output status showing if
unit is ON or OFF
