Step 1: Assemble The Chaise Body - modway Engage EEI-1794 Manual

EEI-1794/1795
EEI-1794 Chaise Carton
2
3
Chaise Body x1

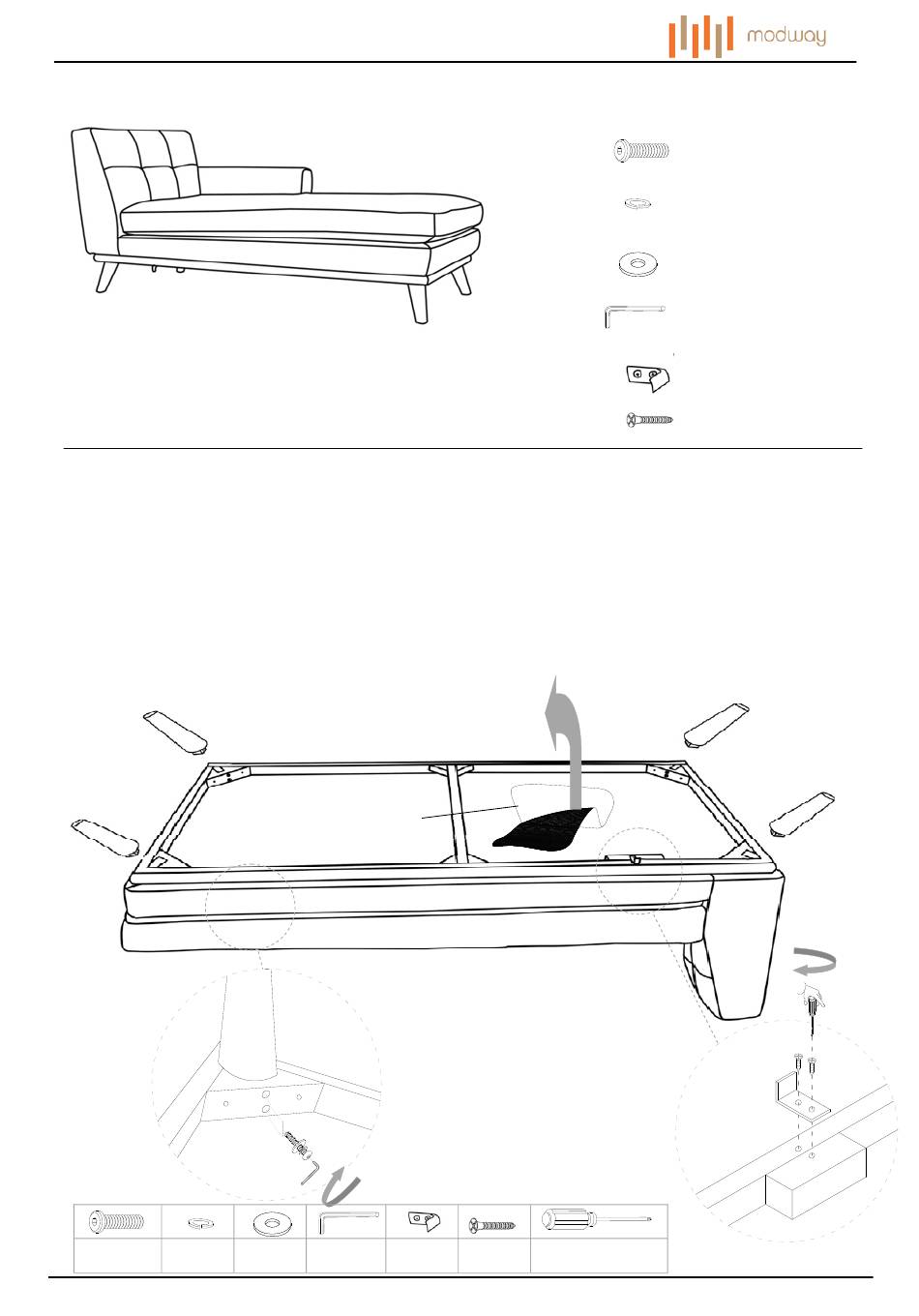

STEP 1:
Please put the Chaise Body (3) upside down on a carpeted or padded area by two adults to make fully visible the corners.
Open the Zipper on the bottom of Chaise Body (3) as shown.
Take out the 4pcs Legs (2) and hardware package on bottom of the Chaise Body (3).
Position one of Legs (2) at one of the four wooden corners.
Insert 2 pieces of each Spring Washer (B), Flat Washer (C) into 2 pieces of Bolt (A) as shown.
Then insert assembled 2 pieces of Bolts (A) into the corner to connect the Leg(2).
Use Allen Wrench (D) to tighten all of Bolts (A).
Repeat the same steps for the remaining three legs (2).
Secure 1pc Clip Post (G) to the Bottom of Chaise Body (3) by using 2pcs Screw (F).
Tighten all Screws (F) with a Phillips Head Screwdriver (not included).
2
2
3
Ax8 Bx8
