QuickSTART
This document provides a brief introduction to Certus-NX Versa Evaluation Board.
7-Segment
RGMII RJ45
Connector
RGMII RHY
SGMII RJ45
Connector
SGMII PHY
FTDI Chip
JTAG
SPI Flash
JTAG
Header
1
Check Kit Contents
The Certus-NX Versa Evaluation Board kit contains the following items:
Certus-NX Versa Evaluation Board
„
12 V AC/DC Adapter & International Plug Adapters
„
USB Cable for Programming via PC (USB-A to Mini-B)
„
Quick Start Guide
„
2
Using the Certus-NX Versa Evaluation Board
The Certus-NX Versa Evaluation Board kit contains the following items:
The Certus-NX Versa Evaluation Board as shipped supports Master-SPI based
configuration. The external SPI Flash Configuration Memory is pre-loaded with a
demonstration program described below.
PMOD
LED
Connection
Parallel/SPI
Configure
Certus-NX
Header
Gold
Finger

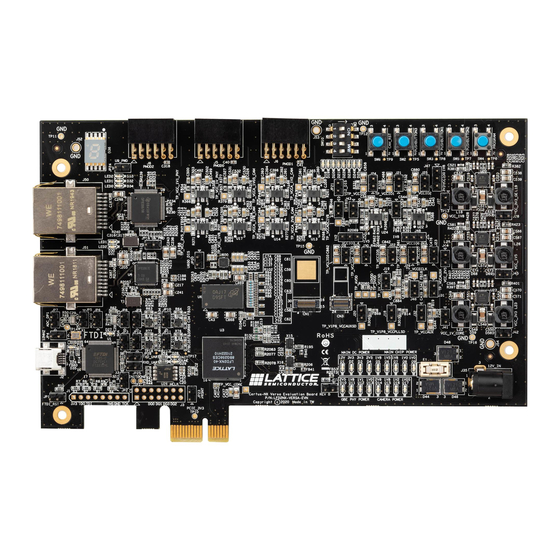

Certus-NX Versa Evaluation Board
Switch Button
Indicator LED
DDR3
Parallel
Device
Camera
Device
D-PHY
Camera
Push Button
Power
Indicator
LED
Main DC
Power
Supply
12 V DC
Power-in
