DHS Fitness DHS 3802 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MANUAL DE UTILIZARE
DHS 3802
IMPORTANT !
VA RUGAM SA CITITI CU ATENTIE ACEST MANUAL INAINTE DE A FOLOSI
APARATUL.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DHS 3802 and is the answer not in the manual?

Questions and answers

Related Manuals for DHS Fitness DHS 3802

Summary of Contents for DHS Fitness DHS 3802

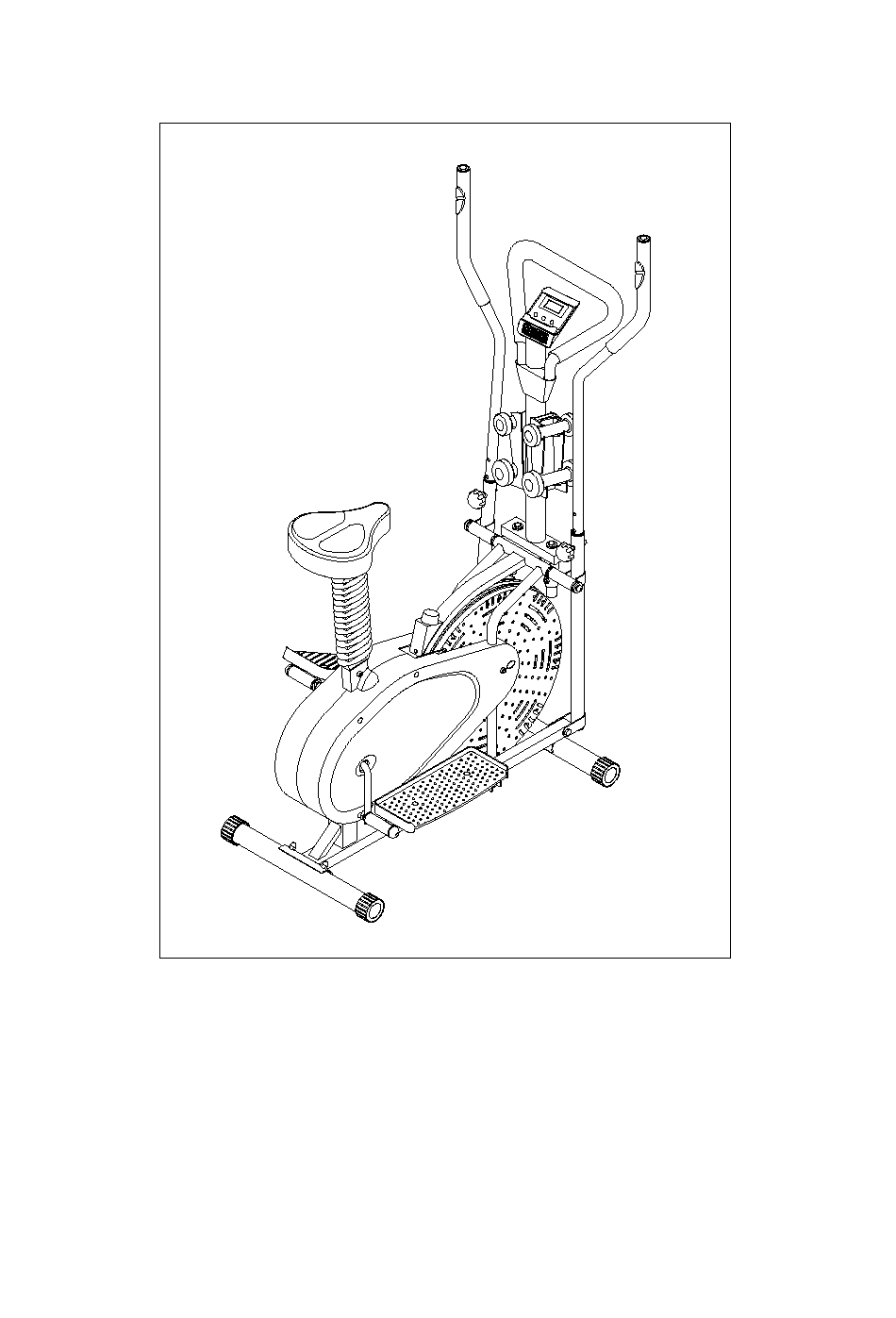

  • Page 1 MANUAL DE UTILIZARE DHS 3802 IMPORTANT ! VA RUGAM SA CITITI CU ATENTIE ACEST MANUAL INAINTE DE A FOLOSI APARATUL.
  • Page 2 Instructiuni Importante de Siguranta Va multumim ca ati ales acest produs. Pentru a va garanta siguranta si sanatatea dumneavoastra, va rugam sa folositi corect aparatul. Va rugam sa cititi cu atentie acest manual inainte de a folosi aparatul. Va rugam sa pastrati aceste instructiuni si uneltele de asamblare pentru a le avea la indemana. 1.
  • Page 3 LISTA PARTILOR COMPONENTE:...
  • Page 4 LISTA PARTILOR COMPONENTE Denumire Specificatii Denumire Specificatii Spuma protectie Cadru ghidon Suport fata Bolt M10*45 Suport spate Piulita de plastic R Bara cuplare Bolt M10*57 dreapta L Bara cuplare M10*H16*S1 Piulita stanga l/R Suport pedale 48L/ 1/2*20*H8*S1 6L/R Piulita de plastic stanga/dreapta 9 左...
  • Page 5 30L/ Ghidaj volanta Fir 1 Ax pedalier cotit Fir 2 Suport Linie ghidaj Piulita Fire Lant 1/4"*1/8"*214 Curea de frictiune Capac Buton reglaj rezistenta la Capac pedalare Capac Suport haltere Bolt M6*20 Bolt ST4.8*18 Saiba d8*Φ30*2.0 Suport sa...
  • Page 6 Piese si unelte: #48R 1/2*20*H8*S19 1PC Φ #41 d8* 30*2.0 2PCS S6 2PCS...

  • Page 7: Instructiuni De Asamblare

    INSTRUCTIUNI DE ASAMBLARE PASUL 1: #46 M10*57 4PCS Fixati bara stabilizatoare fata (2), bara stabilizatoare spate (3) pe cadrul principal (1) folosind surubul (46) si saiba (68) si piulitele (47).
  • Page 8 PASUL 2: Φ 13*B0.5 2PCS Prindeti bratul pedalier (27) la tubul pedalier (6 St./Dr.) cu surubul pedalier (12L/R), saibele (51) , pilitele nylon (48 St./Dr.) apoi puneti toate capacele (82). Inserati axul lung (18) in cadrul principal (1), si prindeti-l cu suruburi (58), saibe (52) si saibe in forma D (49).
  • Page 9 PASUL 3: Prindeti pedalele (11) la tubul pedalier (6 St./Dr.) cu suruburile (44) si piulitele nylon (45).
  • Page 10 PASUL 4: Φ #17 M8*36*15* 48 2PCS #81 S13 2PCS Prindeti ghidonul (7 St./Dr.) de tubul stang si drept (5) cu suruburile (17) si apoi puneti capacul (81).
  • Page 11 PASUL 5: 1. Prindeti saua (59) de suportul de sa (42) cu saibele(61) si piulitele nylont (60). 2. Puneti suportul de sa(42) in tubul suportului sa (62) si fixate cu surubul (69).
  • Page 12 PASUL 6: Inserati tubul extensie (10) in cadrul principal (1) si fixate cu suruburile (17).
  • Page 13 PASUL 7: Fixati suportul de ghidon(54) la cadrul principal(1) cu surubul (50) si saibele (41).
  • Page 14 PASUL 8: #62 M8*62 1PC S6 1PC Prindeti Ghidonul central (55) la suportul ghidon (54) si prindeti capacele (70), (71) cu ajutoul suruburilor (62), (63) si a piulitelor (60).
  • Page 15 PASUL 9: Fixati suportul de haltere (38) la tubul central (54) cu suruburile (39), apoi plasati halterele (66), (67) in suport (38).
  • Page 16 PASUL 10: 1. Conectati firul sensor (78) cu firul computerului (consolei) 1(72), apoi conectati firul computerului 2(73) cu firul senzorului (77). 2. Fixati consola/computer (64) pe suportul de ghidon (54). Asamblarea a luat sfarsit.
  • Page 17 USER’S MANUAL Important! Please read this manual carefully before use this equipment...

  • Page 18: Important Safety Information

    Important Safety Information Please keep this manual with you always! 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 19: Exploded View

    Exploded view:...
  • Page 20 Parts list Parts name Specification Parts name Specification Main frame Foam Grip M10*45 Front stabilizer Bolt Rear stabilizer Nylon Nut M10*57 R Coupler Bar Bolt M10*H16*S17 L Coupler Bar 48L/R Nylon Nut 1/2*20*H8*S19 左 6L/R l/R Pedal tube Φ16.2*Φ28*5 7L/R D Waher Handle Bar M8*20...

  • Page 21: Accessories And Tools

    Accessories and Tools: #48R 1/2*20*H8*S19 1PC #41 d8* 3 0*2.0 2PCS ¦ µ S6 2PCS...

  • Page 22: Assembly Instruction

    Assembly Instruction Step 1: #46 M10*57 4PCS Attach the Front stabilizer (2), Rear Stabilizer (3) to the rear of the Main Frame (1 )., Secure them together using bolt (46). Arc-washer (68) and nut (47)
  • Page 23 Step 2: 1 3*B0.5 2PCS ¦ µ 1. Lock the crank (27) onto Pedal tube (6L/R) with pedal bolt(12L/R), spring washer (51), nylon nut (48L/R) and then put on all the end cap (82). 2. Insert the long axle (18) into main frame (1), then secure it with the bolts (58), spring washers (52) and D shape washers (49).
  • Page 24 Step 3 Lock the pedal (11) to the Pedal tube (6L/R) with bolt (44) and nylon nut (45).
  • Page 25 Step 4: #17 M8*36*15* 4 8 2PCS ¦ µ #81 S13 2PCS Lock the handlebar (7L/R) to the L/R Coupler Bar (5) with bolts (17), then put on the end cap (81).
  • Page 26 Step 5: 1. Lock the saddle (59) onto the saddle post (42) with washer(61) and nylon nut (60). 2. Put the saddle post(42) into the saddle post (62), and then tighten the knob (69).
  • Page 27 Step 6: Insert the extension tube(10) into main frame (1) with knob bolt (17).
  • Page 28 Step 7: Lock the handlebar post(54) onto the main frame(1) with bolt(50) and washer(41).
  • Page 29 Step 8: #62 M8*62 1PC S6 1PC Attach the Center Handle Bar (55) onto the handlebar post (54) and fix the covers (70), (71) with screws (62), screws (63), nut(60).
  • Page 30 Step 9: Lock the dumbbell holder (38) onto the center post (54) with screws (39), and then put the dumbbells (66), (67) into the holder (38).
  • Page 31 Step 10: 1. Connect the sensor wire(78) with the computer wire 1(72), then connect the computer wire 2(73) with the sensor wire (77) 2. Insert the computer (64) to the bracket on the handlebar post (54). Assembly finished.
