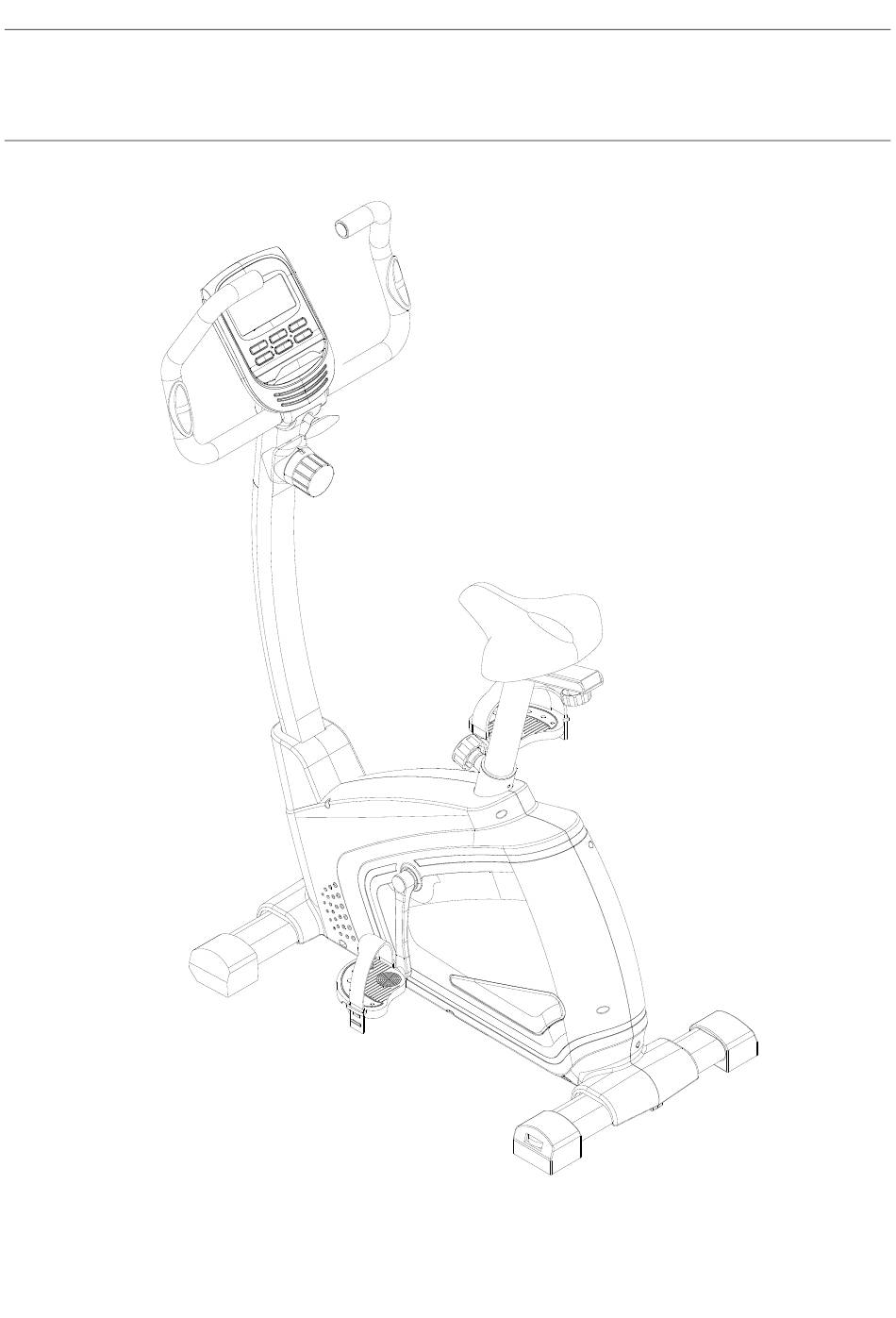

- Page 1 MANUAL DE UTILIZARE DHS 2615 IMPORTANT! VA RUGAM SA CITITI CU ATENTIE ACEST MANUAL INAINTE DE A FOLOSI APARATUL.
- Page 2 Instructiuni Importante de Siguranta Va multumim ca ati ales acest produs. Pentru a va garanta siguranta si sanatatea dumneavoastra, va rugam sa folositi corect aparatul. Va rugam sa pastrati acest manual la indemana! 1. Este important sa cititi intregul manual inainte de a incepe asamblarea si de a folosi aparatul.
- Page 3 LISTA PARTILOR COMPONENTE...
- Page 5 LISTA PARTILOR COMPONENTE Descriere CANT Descriere CANT Computer Pedala dreapta HD-22B 1/2” Firele de conectare a Maner M16*1.5*22*Φ56 computerului Surub M5*10*Φ10 Bucsa Φ60*D50*L150*22 Capac spate ghidon Buton reglare rezistenta la pedalare Surub ST4.2*19 Suport sa vertical Surub ST4.2*25 Maner M8*20*Φ50 Spuma, protectie ghidon Suport sa orizontal Φ23*3*570...
- Page 6 Capac plastic Curea 6PJ410 PT80*40*71.5*90*65 Suport spate Ax Φ17*190 Pedala stanga HD-22B 1/2” Piulita M6*H6*S10 Surub M8*12*5.5 Piulita M6*H5*S10 Capac dreapta lant Inertia rotii Partea dreapta a rotii 165 1/2” Piulita M8*H7.5*S13 Capac Suport roata Saiba d5*φ10*1.0 Arc Φ2.2*Φ18*78*N18 Inel Saiba d12*φ17*0.5 Piulita M10*1*H5*S17 Saiba plata d12*Φ15.5*0.3...
- Page 7 ASAMBLAREA PASUL 1 1. Asamblati bara stabilizatoare fata (24) si bara stabilizatoare spate (30) la cadrul principal (22) folosind suruburile (28) si saibele (19); 2. Asamblati pedalele(31) (32) pe bratul pedalier al cadrului principal (22)
- Page 8 STEP 2: 1. Inserati ansamblu support maner (16) in capacul decorative al ansamblului (20); 2. Conectati firul trunchi 1 (2) cu firul trunchi 2 (21), si conectati reglajul de tensiune (35) cu firul reglaj tensiune (42); 3. Prindeti suportul de maner (16) la cadrul principal (22) cu ajutorul surubului (18), si a saibelor (19) si (17).
- Page 9 STEP 3: Introduceti suportul sa (36) in cadrul principal (22), apoi fixati -l folosind surubul (33); Prindeti suportul orizontal al seii (38) pe suportul sa (36), ajustandu-l la pozitia dorita apoi fixate-l folosind surubul (37) si saibele (19); Prindeti saua (27)de suportul orizontal al seii (38).
- Page 10 STEP 4: 1. Asamblati ghidonul (8) pe suportul ghidonului (16); 2. Inserati firele senzorului de puls(13) prin canalul suportului de ghidon (16) si scoatetile prin suportul de computer ca in poza 2; 3. Prindeti capacul decorativ al ghidonului (14), apoi prindeti ghidonul (8) de suportul de ghidon (16) cu surubul (15).
- Page 11 STEP 5: 1. Conectati firele computerului (1) cu firele trunchiului 1 (2), si conectati firele computerului (1) cu firele senzorului de puls (13), apoi prindeti consola (computer) (1) pe suportul de ghidon (16) cu ajutorul surubelnitei (3); 2. Prindeti capacul decorativ spate al ghidonului (4) la capacul decorativ fata (14) cu ajutorul surubelnitei (5) (6).
- Page 12 USER’S MANUAL Important! Please read this manual carefully before using this equipment！...
-
Page 13: Important Safety Notice
IMPORTANT SAFETY NOTICE Thank you for purchasing our product. Proper use can ensure your safety and health, so please read the following text carefully before using this equipment. 1. It is very important to read all the instructions carefully before assembling or operating this product. -
Page 14: Exploded View
EXPLODED VIEW... - Page 15 EXPLODED VIEW...
-
Page 16: Parts List
PARTS LIST Description Description Right pedal HD-22B 1/2” Computer Knob M16*1.5*22*Φ56 Trunk wire 1 Screw M5*10*Φ10 D shape bushing Φ60*D50*L150*22 Rear cover for handlebar Tension control Screw ST4.2*19 Saddle post Knob M8*20*Φ50 Screw ST4.2*25 Foam grip Φ23*3*570 Saddle across tube Handlebar End cap F40*20*17 End cap ф25*16... - Page 17 Screw M8*12*5.5 Nut M6*H5*S10 Right chain cover Inertia wheel Right crank 165 1/2” Nut M8*H7.5*S13 Right small chain cover Idler wheel connect staff Washer d5*φ10*1.0 Spring Φ2.2*Φ18*78*N18 Washer d12*φ17*0.5 Ring Nut M10*1*H5*S17 Wave washer d12*Φ15.5*0.3 Adjusting screw M6*40*Φ10*2.5 Adjusting U seat 30*10*1.5...
-
Page 18: Assembly Steps
ASSEMBLY STEPS STEP 1: 1. Secure front stabilizer (24) and rear stabilizer (30) to main frame (22) with bolt (28) and washer (19); 2. Secure pedal (31) (32) to the crank of main frame (22) - Page 19 STEP 2: 1. Insert handlebar post (16) through cover for handlebar post (20); 2. Connect trunk wire 1 (2) with trunk wire 2 (21), and connect tension control (35) with tension wire (42); 3. Secure handlebar post (16) to main frame (22) with bolt (18), washer (19) and arc washer (17).
- Page 20 STEP 3: 1. Insert saddle post (36) into main frame (22), then tighten it with knob (33); 2. Attach saddle across tube (38) to saddle post (36), and adjust it to desired position, then tighten it with knob (37) and washer (19); 3.
- Page 21 STEP 4: 1. Attach handlebar (8) to the clamp of handlebar post (16); 2. Insert handle pulse wire (13) through the grommet of handlebar post (16) and get out from the computer holder, as picture 2; 3. Cover front cover for handlebar (14), then secure handlebar (8) to handlebar post (16) with knob (15).
- Page 22 STEP 5: 1. Connect the link wire of computer (1) with trunk wire 1 (2), and connect the link wire of computer (1) with handle pulse wire (13), then secure computer (1) to handlebar post (16) with screw (3); 2. Secure rear cover for handlebar (4) to front cover for handlebar (14) with screw (5) (6). Assembly is finished.
