Hard Folding Cover
Fits:
47113550
- 07-13 Silverado/Sierra 5.8' bed w/out bed caps
47113650
- 07-13 Silverado/Sierra 6.5' bed w/out bed caps

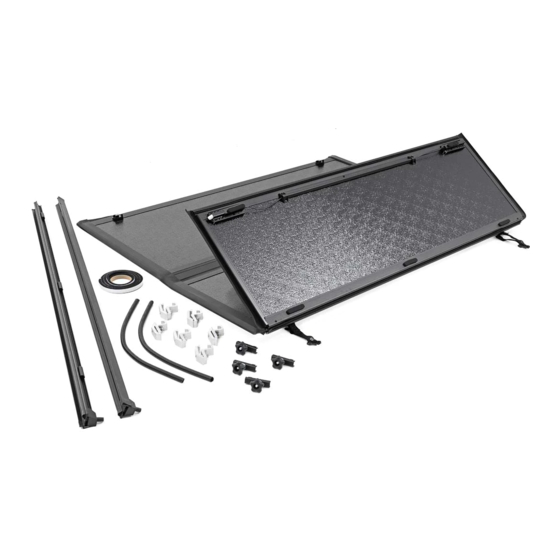

THE ROUGH COUNTRY HARD FOLDING COVER COMES FULLY ASSEMBLED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. A TORQUE WRENCH IS NOT NECESSARY.
IF PREFERRED, TORQUE IS APX 120 INCH LBS.

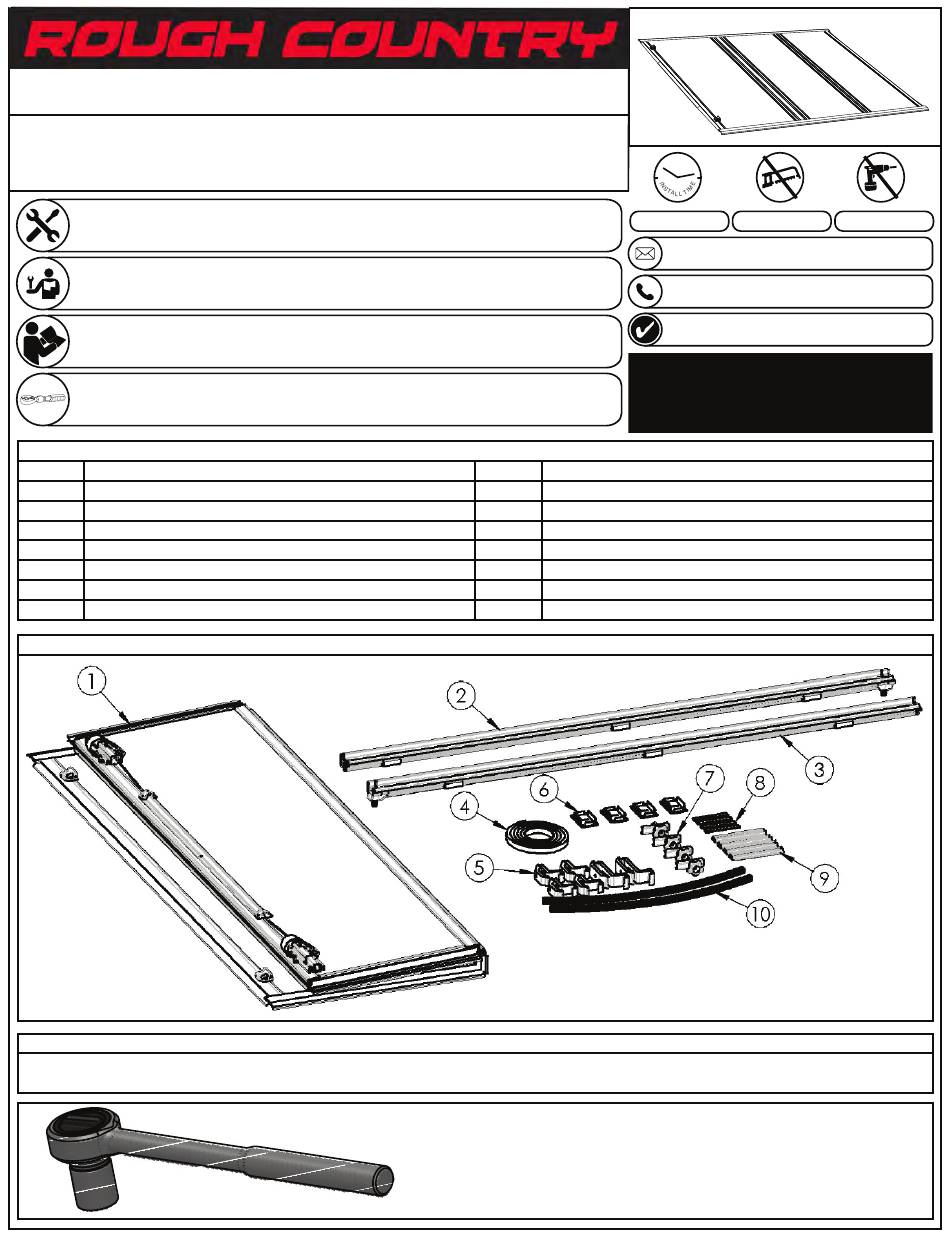

PN
1
Hard Folding Cover (1)
2
Driver (Left) Mounting Rail (1)
3
Passenger (Right) Mounting Rail (1)
4
Bulkhead Seal (1)
5
Clamps (x6)
6
Stake Pocket Clamps (x4)
7
Front Mounting Retainer (x4)
Ratchet & 1/2" Socket
Page 1 of 7
PARTS LIST OF COMPONENTS
Part Description/ Qty
PN
8
Rubber Filler Strips (x4)
9
Clamp Force Spreader (x4)
10
Drain Tubes (x2)
Components
Tools Required
30-60 min
Cutting Not Required
www.roughcountry.com
1-800-222-7023
3-YEAR WARRANTY
RC-W5
Part Description/ Qty
Drilling Not Required
Advertisement
Table of Contents
Related Manuals for rough country RC-W5
Summary of Contents for rough country RC-W5
- Page 1 47113650 - 07-13 Silverado/Sierra 6.5' bed w/out bed caps 30-60 min Cutting Not Required Drilling Not Required THE ROUGH COUNTRY HARD FOLDING COVER COMES FULLY ASSEMBLED. www.roughcountry.com REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. 1-800-222-7023 3-YEAR WARRANTY READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 INSTALLATION PROCEDURE Stick each one of the rubber ller strips to the bed rail, adjacent to the front and middle clamps, prior to install- ing the mounting rail, see the gure below. 1. Attach both left and right side rails to the truck bed. The end of the mounting rail with the drain tube fitting will go towards the cab of the truck, position flush to bulkhead.
- Page 3 5. Set the tonneau onto the mounting rails, the buckles should be to the front. 6 & 7. Assemble the four retainer clamps, slide each of them into the track on the underside of the tonneau, slide into position, but do not tighten at this time. Page 3 of 7...
- Page 4 8. Carefully unfold the cover. Position the cover so it is centered side to side and front to back on the truck bed. 9. Test the rear latching assembly for smooth operation as this is the best indicator of the cover being posi- tioned correctly.
- Page 5 12 & 13. Once in the open position double check the clamp engagement to the side rail and tighten. Test the cover again for proper operation, adjust as needed, then tighten the star knobs. of the truck bed. This can be done by placing the tube behind a bed liner, through an existing hole in the bed, or by drilling a 5/8”...
- Page 6 OPERATION INSTRUCTIONS 1 & 2. To open the cover: Lower the tailgate and pull the cable. While pulling on the cable lift the panel up and towards the cab. 3, 4 & 5. Release the strap from the stowed position by squeezing the tabs. Attach the buckle at the bulk- head, pull the strap to take up the slack and secure the cover.
- Page 7 WARRANTY COVERAGE Terms of Warranty The structure of your cover is warranted to be structurally free from defects in material and workmanship for (3) three years from the retail date of purchase. The hinges, seals, and hardware are warranted to be free from defects in material and workmanship for (3) three years from the retail date of purchase.
