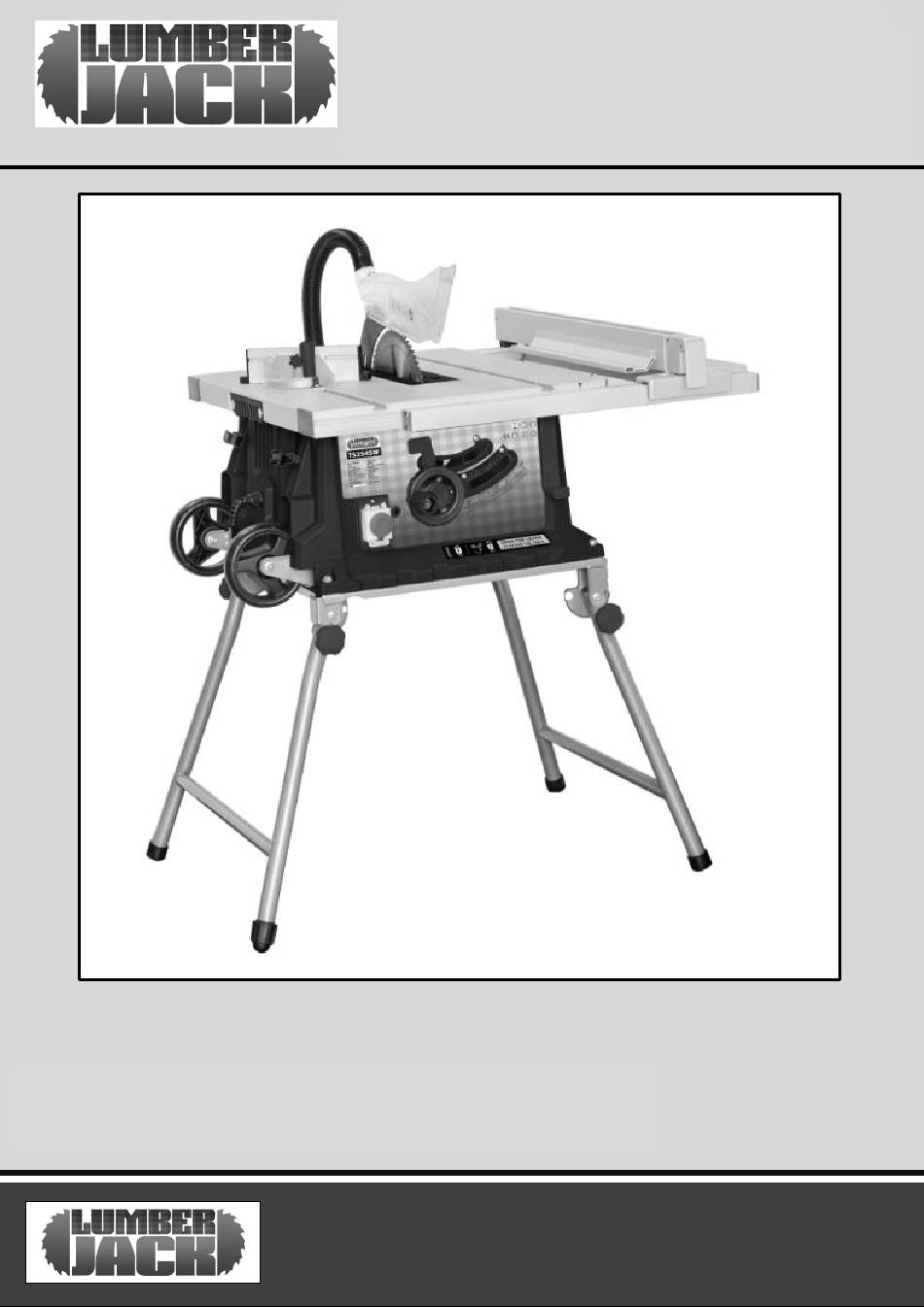

- Page 1 SAFETY AND OPERATING MANUAL 254mm Table Saw with Side Extension & Foldable Stand TS254SW ORIGINAL INSTRUCTIONS TS254SW...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. TS254SW... - Page 4 Use power tools only with specifically operate the power tool. Power tools are designated battery packs. Use of any other dangerous in the hands of untrained users. battery packs may create a risk of injury or fire. TS254SW...
- Page 5 Always adjust the blade guard in such a manner that it faces loosely against the work piece when sawing. Never clamp the blade guard when it is open. TS254SW...
- Page 6 Store the machine in a safe manner when not being used. The storage location must be dry and lockable. This prevents the machine from storage damage, and from being operated by untrained persons. TS254SW...
-
Page 7: Symbols & Cable Rating Chart
Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 TS254SW... -
Page 8: Machine Details And Product Features
Saw blade 7. Mitre fence Push stick 8. Mitre gauge Mitre Gauge 9. Blade bevel adjustment lock Parallel Guide Fence 10. On/Off Switch Blade Wrench 11. Transportation wheels 12. Leg stand 13. Blade elevation handle TS254SW AIR6V AIR6V AIR6V AIR6V... - Page 9 PRODUCT FEATURES TS254SW...
-
Page 10: Assembly
Certain dusts such as oak or beech dust are considered carcinogenic, particularly in combination with wood treatment additives(chromate, wood preservatives). Materials containing asbestos may only be processed by experts. TS254SW... - Page 11 Stand the table on end, fold up and lock the lower legs, unlock the upper legs (B3). Swing down the legs and lock (B4). – There is a adjustable spring leg as shown in Fig. A5. You can rotate it clockwise or anticlockwise for your desired length. (A5) TS254SW...
- Page 12 The splitter should be under the saw table. To adjust the height of the splitter Loosen the two screws (a). Adjust the two adjusting screws to make sure the splitter is about 1/8” (3mm) above the blade tips. Tighten the two screws again. TS254SW...
- Page 13 – Place protective cover (1) above the splitting wedge (14), so that the screw fits into the slit of the splitting wedge. – Push the Protective cover (1) in to the bottom of the opening. Open the extension table when you need (See Fig. G3). TS254SW...
- Page 14 Fig.I2) Elevating & lowering handle Mount the blade elevation handle (13) on the wheel by tightening the nut in the handle. Unclipping the rip fence Release via the locking handle TS254SW...
- Page 15 “0” mark on the scale. If it is not, loosen the screw(c) and position the indicator on”0” and then retighten the screw. (See Fig. J2) NOTE: The Blade Guard and splitter will need to be removed to perform this adjustment. TS254SW...
-
Page 16: Operation
Then tighten the locking tightened to prevent the blade from shifting knob. during operation. NOTE: The mitre gauge body has marks at 5- degree increments. The sliding bar has marks at 1- degree increments. Read both to get an accurate angle degree. TS254SW... - Page 17 This is done with the mitre gauge set than 2”(50mm). at “0”. Before using the mitre gauge, make sure it is locked. The mitre gauge can be used in either of the grooves in the table. TS254SW...
- Page 18 90° to both the edge and the flat side of the wood. Adjust the mitre gauge and the blade bevel to the desired angle and be sure that the mitre gauge and blade bevel adjustment lock are locked. TS254SW...
- Page 19 Never make a cut with a dull blade. 8. When making a cut, use steady, even pressure. Never force a cut. 9. DO NOT cut wet or warped lumber. 10. Always hold your work-piece firmly with both hands or use a push stick or push block. TS254SW...
-
Page 20: Working Advice
Observe the following instructions: – Hold the work piece securely with both hands and press it firmly against the saw table. – When sawing narrow work pieces and bevel angles, always use the supplied hold-down stick. TS254SW... -
Page 21: Maintenance And Service
– For safe and proper working, always keep the 6. Remove the flange and pull the blade off the power to land its ventilation slots clean. motor shaft. – Remove dust and chips after each working procedure by blowing out with compressed air or with a brush. TS254SW... - Page 22 2.Contact electrician 2.Low house voltage Saw vibrates excessively 1.Saw is not mounted securely 1.Tighten all mounting hardware to work bench 2.Re-position on flat, level floor 2.Bench or stand is on uneven 3.Replace blade floor 3. Damaged saw blade TS254SW...
-
Page 23: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at your own cost to Lumberjack’s or supplying... - Page 24 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 25: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP Tel: 01902 450 470 Declares that the TABLE SAW (TS254SW) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV SÜD Product Service GmbH-Zerifizierstelle –... -
Page 26: Parts List
Pointer of body Eccentric wheel Ø4 spring Handle body M4 screw Handle cover M4x8 screw Scale label Machine body Closure plate B Foot washer Front rail Small label of body Rotate bar(1) Main working table Rotate location block TS254SW AIR6V AIR6V AIR6V... - Page 27 Carbon brush Outer pressure board Brush holder cover Saw blade (Motor)connection Clamp(2) Cable plug Push sticker Cable plug Saw balde location ring M5x30 screw Inner pressure board Ø5 spring M5x12 screw Ø5 flat washer Bearing housing ST3.9x12screw TS254SW AIR6V AIR6V AIR6V...
- Page 28 Small connecting rod M6x12 screw Connecting rod1 Location block Ø5x11 pin M6 screw Fence lock block1 Spout Ø5x28 pin Extension bar1 Ø5x30 pin Extension table cover2 Fence fasten piece Extension table2 Fence movable Extension table cover1 TS254SW AIR6V AIR6V AIR6V...
- Page 29 Control bar1 Fence for cross cut gauge Control bar2 Screw Plastic cover for fence in Ø3x12 rivet cross cut gauge(2) Fasten block T-adapter Ø4.5x19 pin Hose Extension fasten block2 Extension fasten block 1 Ø12 shaft jump ring TS254SW AIR6V AIR6V AIR6V...
-
Page 30: Parts Diagram
Parts Diagram TS254SW... - Page 31 M6×8 inner hex screw M6×45 outer hex bolt Ø20 shaft jump ring Locking cap Ø20× ø32×1.5 flat washer ST4.8×12 cross self- Cylinder pin 2.5×14 tapping screw Locking knob Hex boltm8×35 ∅8 flat washer Locking knob's spring TS254SW AIR6V AIR6V AIR6V...
- Page 32 Parts Diagram TS254SW...
