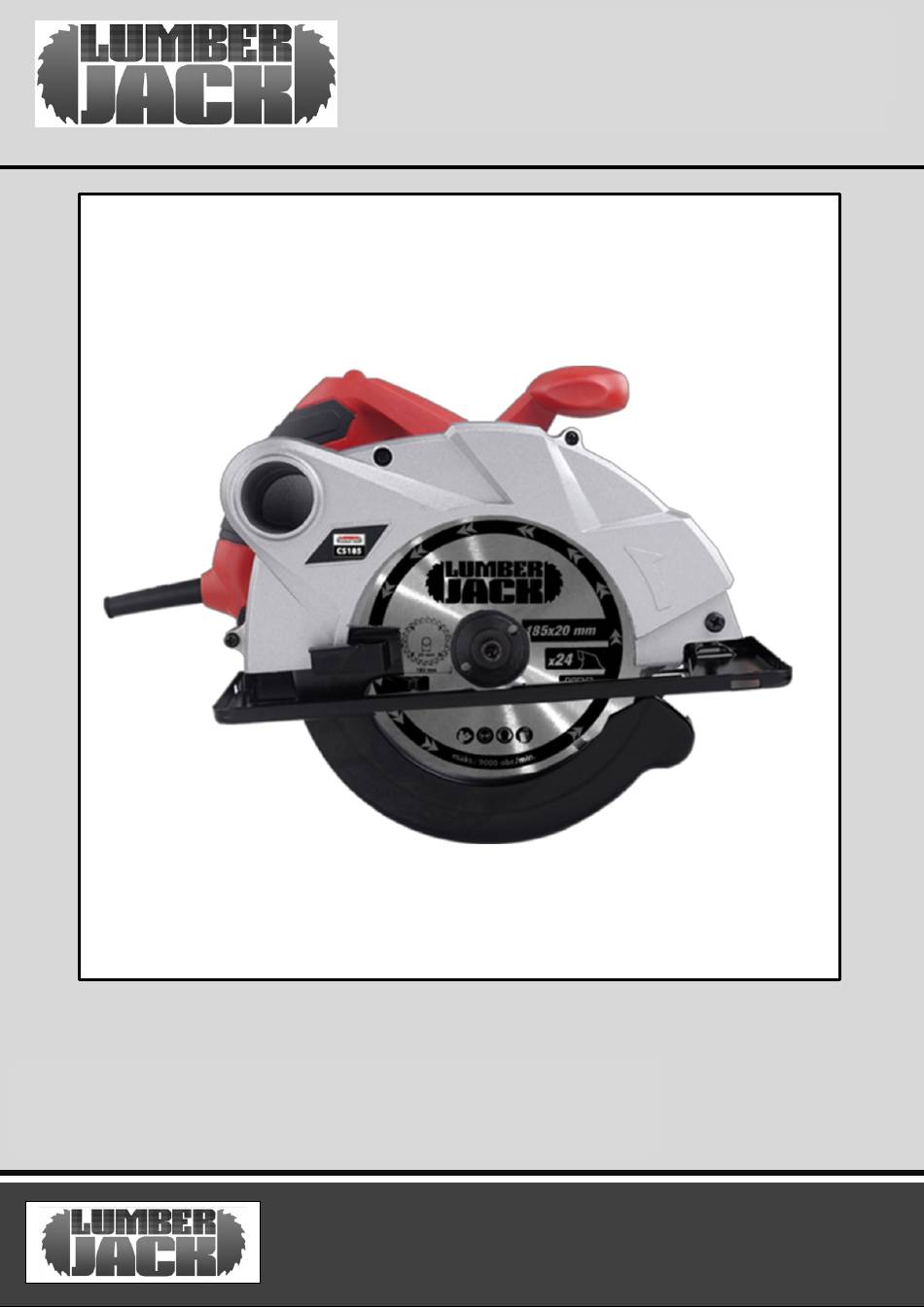

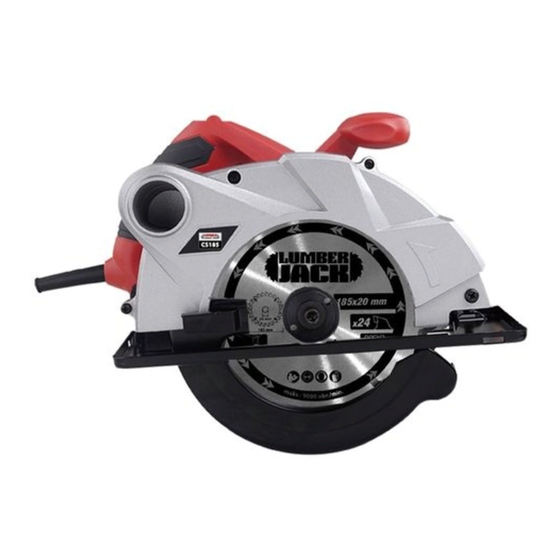

- Page 1 SAFETY AND OPERATING MANUAL 185mm Circular Saw CS185 ORIGINAL INSTRUCTIONS CS185...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. CS185... - Page 4 Materials containing asbestos may only be operate the power tool. Power tools are worked by specialists. Observe the relevant dangerous in the hands of untrained users. regulations in your country for the materials to be worked. CS185...
- Page 5 7.10 Always unplug the power plug when not in use, before maintaining or changing the saw blade. CS185...
- Page 6 Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 CS185...
-
Page 7: Machine Details And Product Features
1 x Wrench 9. .Base Plate 1 x Instruction manual 10..Outer Flange 11.Blade Bolt 12.Saw Blade 13.Lower Guard Lever 14.Fixed Guard 15.Safety ON/OFF Switch 16.Lock-off Button 17.Depth Of Cut Adjustment Lever 18.Spindle Lock Button 19.Allen Key AIR6V AIR6V AIR6V AIR6V CS185... - Page 8 MACHINE DETAILS AND PRODUCT FEATURES AIR6V AIR6V AIR6V AIR6V CS185...
-
Page 10: Operation
1/4 turn more than finger tight. Check if the blade is securely clamped. WARNING: Blade teeth are very sharp. For best cutting results ensure you use a saw blade suited to the material and cut quality you need. CS185... - Page 11 Tighten the bevel lock by turning it in clockwise direction. Do not use the depth of cut scale when making bevel cuts due to possible inaccuracy. CS185...
- Page 12 0° guide mark to align with your parallel guide scale. For a 45° bevel cut, use the 45° guide mark to align with your parallel guide scale. Securely clamp the parallel guide. NOTE: It is best to carry out a trial cut. CS185...
-
Page 13: Maintenance And Service
Only use sharp saw blades of the correct type. persons in order to avoid a hazard. CS185... -
Page 14: Lumberjack Guarantee
If a return is requested by the Authorised Dealer or 1.2.3 If asked to do so by Lumberjack or its Lumberjack, you will be provided with a Returns Authorised dealer, you return the product at Material Authorisation number which must be your own cost to Lumberjack’s or supplying... - Page 15 Lumberjack. If you include a contact number with this it will speed your claim 2.4 Please note that it is essential that the letter of claim reaches Lumberjack on the last day of this Guarantee at the latest. Late claims will not be considered.
-
Page 16: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the Circular Saw (CS185) Is in compliance with the regulations included in the Directives:2014/30/EU EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Products Gmbh - Tillystraß...
