4
Gently push the lever located at the bottom of the
pendant to lower it and connect the cable.
5

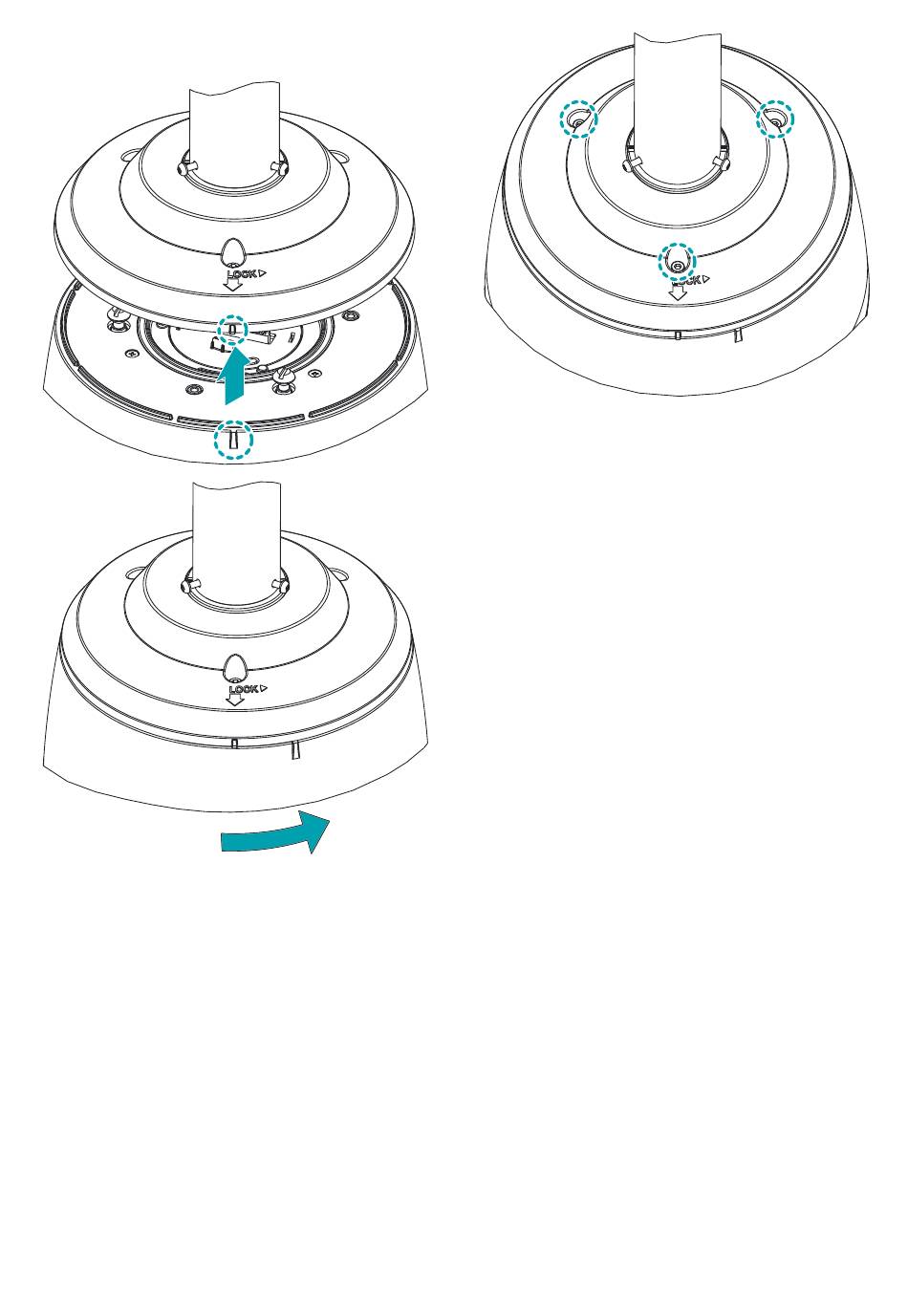

Assemble the pendant and the body by matching
the installation direction guides. Rotate the
camera body clockwise to position the reference
mark in the upper section and the lower section
as shown in the figure.
6
6
Use the allen wrench provided with the camera to
secure the 3 screws on the pendant.
7
the power.
Supply
