Connects2 CAM-31 User Manual

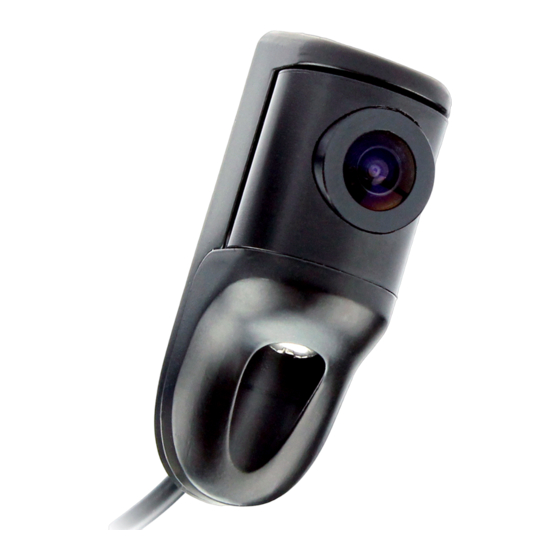

Side view camera

U s e r M a n u a l

CAM-31

Side View Camera

PRODUCT FEATURES:

Image Sensor: 1/4" DSC

TV System: PAL

Pixels: 720 x 480

TV Lines: 420

Diagonal Degrees: 180

Illumination: 0.3 Lux

Electronic Shutter: 50/60 fps

Gamma Correction: 0.45

Video Output: 1.0V p-p 75ohm

Enhanced Performance In Low Light: Yes

Operating Temperature: -30 Degrees C to +75 Degrees C

Operating Voltage: 6-24V DC (Negative Ground)

Current Consumption: 37mA @ 13.8V

Image Adjustment: Yes (Normal/Mirror)

Camera Mounting Orientation: Vertical

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

Please ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any

technical issues. With this in mind, when contacting Connects2, try to provide as

much Information as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

Table of Contents

Do you have a question about the CAM-31 and is the answer not in the manual?

Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
Page 2 If adjustment is required, loosen the screw located in the camera housing, adjust the camera and tighten the screw to lock the camera in position. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
