U s e r M a n u a l

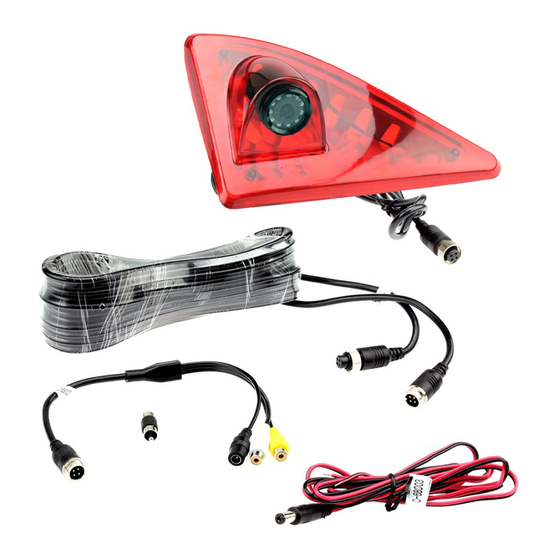

CAM-VX5
PRODUCT FEATURES:
Image Sensor: 1/3" CCD
Resolution: NTSC 510 x 492, PAL 500 x 582
TV Lines: 650
Lens: 1.7mm
Minimum Illumination: 0 Lux (LED's on)
Infra-Red LED's: Yes
Night Vision Distance: 35ft
Waterproof Rating: IP68
Viewing Angle: 170 Degrees
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 80mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
Image: Mirror
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any tech-
nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-
mation as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Vauxhall/Opel Reverse Camera
Vauxhall/Opel Movano (X62) 2010>
Advertisement
Related Manuals for Connects2 CAM-VX5
Summary of Contents for Connects2 CAM-VX5
- Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
- Page 2 6. Connect the Yellow RCA Female connector to the display monitor using the sup- plied RCA splice. 7. Engage reverse gear and ensure that the image is displayed correctly. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
