U s e r M a n u a l
CAM-JP2
PRODUCT FEATURES:
Image Sensor: 1/4"
TV Lines: 480
Resolution: 720 x 480
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP67
Viewing Angle: 210 Degrees
Parking Lines: Yes (Removable)
Image Adjustment: Yes (up to 5 different viewing modes)
Enhanced Performance In Low Light: Yes
Operating Voltage: 12-24V DC (Negative Ground)
Operating Temperature: -20 Degrees C to +75 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
The place of installation must be free of moisture and away from heat sources. Please
ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

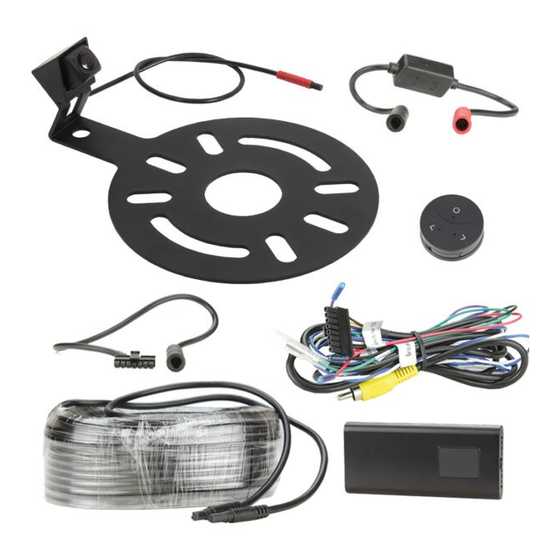

Universal Wheel Mount Reverse Camera
with a spare wheel mount bracket. Includes 5 different
viewing angles viewable with a Wireless Controller
Connects2Vision
Advertisement
Table of Contents
Related Manuals for Connects2 Vision CAM-JP2
Summary of Contents for Connects2 Vision CAM-JP2
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 Connects2Vision INSTALLATION Wiring Diagram Power Adapter Cable CAM-JP2 Make Connections to Vehicle/Unit Wireless Controller (Mount on dashboard) Extension Cable Control Unit Acc 12V Connect to vehicle 12V Accessory feed Black Ground Connect to source of ground Green Reverse Output Connect to aftermarket radio reverse trigger input Purple Reverse Trigger Connect to vehicles reverse light for reverse gear trigger*...
- Page 3 Connects2Vision USING THE WIRELESS CONTROLLER Start-Up The wireless controller included in the kit can be used to change the viewing mode of the camera, as well as adjust key parameters for each viewing mode. Currently selected view To bring up the HUD menu, put Go to Settings the vehicle into reverse gear and press A.
- Page 4 Connects2Vision Adjusting Settings To adjust settings for all viewing modes, press A from the HUD menu to enter the settings menu. Once in the settings menu, short press A to cycle through the various settings screens available. Screens include camera angle and position for each mode, and guideline width for parking lines. Once in a settings screen, the selected setting is indicated by the icon in the centre of the display.
