U s e r M a n u a l
CAM-KIT16
PRODUCT FEATURES:
CAMERA
Image Sensor: 1080P
TV Lines: 800
Resolution: 1280 x 720
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Horizontal Angle: 160 Degrees
Vertical Angle: 140 Degrees
Parking Lines: Yes (Removable)
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Operating Temperature: -20 to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com

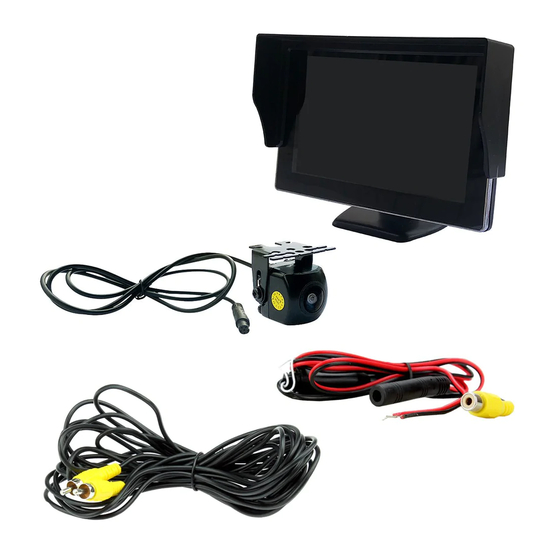

Universal AHD/CVBS Camera & Monitor
with Vertical Adjustment
MONITOR
Digital TFT LCD
Display size: 5-inch
Display format: 16:9
Contrast: 350:1
Operating Voltage: 12V DC
Advertisement
Table of Contents
Related Manuals for Connects2 CAM-KIT16
Summary of Contents for Connects2 CAM-KIT16
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 CONTENTS Connects2Vision • Camera with 1m cable to Female DC connector and RCA Female connector • 1m DC power cable with Male DC connector • 6m Male to Male RCA extension cable • 5-inch Digital TFT LCD Display (with 2x AV ports and power connection cable) •...
