Connects2 CAM-KIT1 User Manual

U s e r M a n u a l
CAM-KIT1

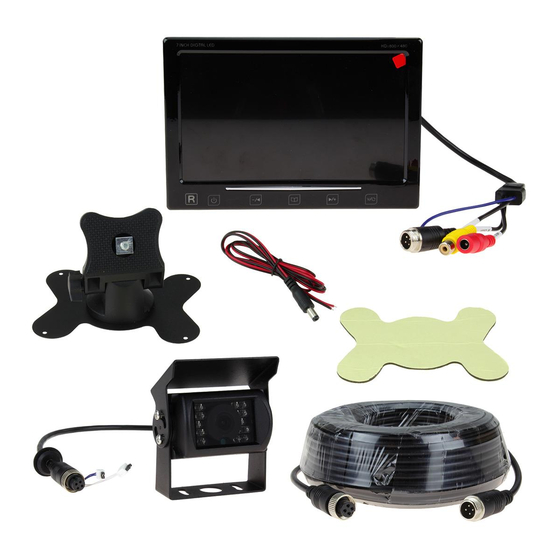

PRODUCT FEATURES:

- 7" TFT colour display with soft touch buttons and built-in speaker
- 3 inputs (2x video, 1x power) with auto-switching function
- Adjustable monitor image (normal, mirror, inverted, inverted mirror)
- A variety of menus including brightness, contrast, colour, hue, language,
volume, input and image adjustment
- IP68 rated waterproof design
- Removable parking lines for further assistance when parking

TECHNICAL SPECIFICATION:

• Camera Image Sensor: 1/3" HD CCD
• Image: 800 x 480
• TV System: NTSC/PAL
• TV Lines: 560
• Sensitivity: 0 Lux (LED's on)
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: 12-32V DC (Negative Ground)
• Current Consumption: 360mA @ 13.8V (Including Camera)
• Stand-by Current: 100mA @ 13.8V
• Operating Temperature: -10 Degrees C to +65 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Camper Van Camera Package
Connects2Vision
