Connects2 Vision CAM-AD3 User Manual

Replacement boot/trunk release handle with reversing camera audi a5, q2 2017 skoda kodiak 2017

U s e r M a n u a l

CAM-AD3

PRODUCT FEATURES:

Image Sensor: CMOS 7080

Effective Pixels: 728 x 492

TV System: NTSC

TV Lines: 600

Viewing Angle: 170 Degrees

Waterproof Rating: IP67

Operating Voltage: 12V DC (Negative Ground)

Parking Lines: Yes

Removable Lines: Yes

Image Adjustment: Yes (Mirror/Normal)

Operating Temperature: -20 Degrees C to +70 Degrees C

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

Please ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any tech-

nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-

mation as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

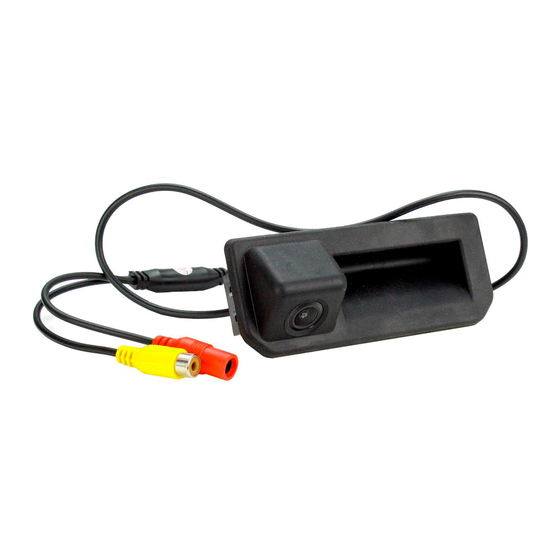

Replacement Boot/Trunk Release Handle with

Reversing Camera

Audi A5, Q2

2017>

Skoda Kodiak

2017>

Table of Contents

Do you have a question about the Vision CAM-AD3 and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
Page 2 (Monitor/Interface etc.) and ensure that the image is displayed correctly. 9. Once testing indicates a successful result, complete the installation of handle/ camera assembly at the back of the vehicle. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
