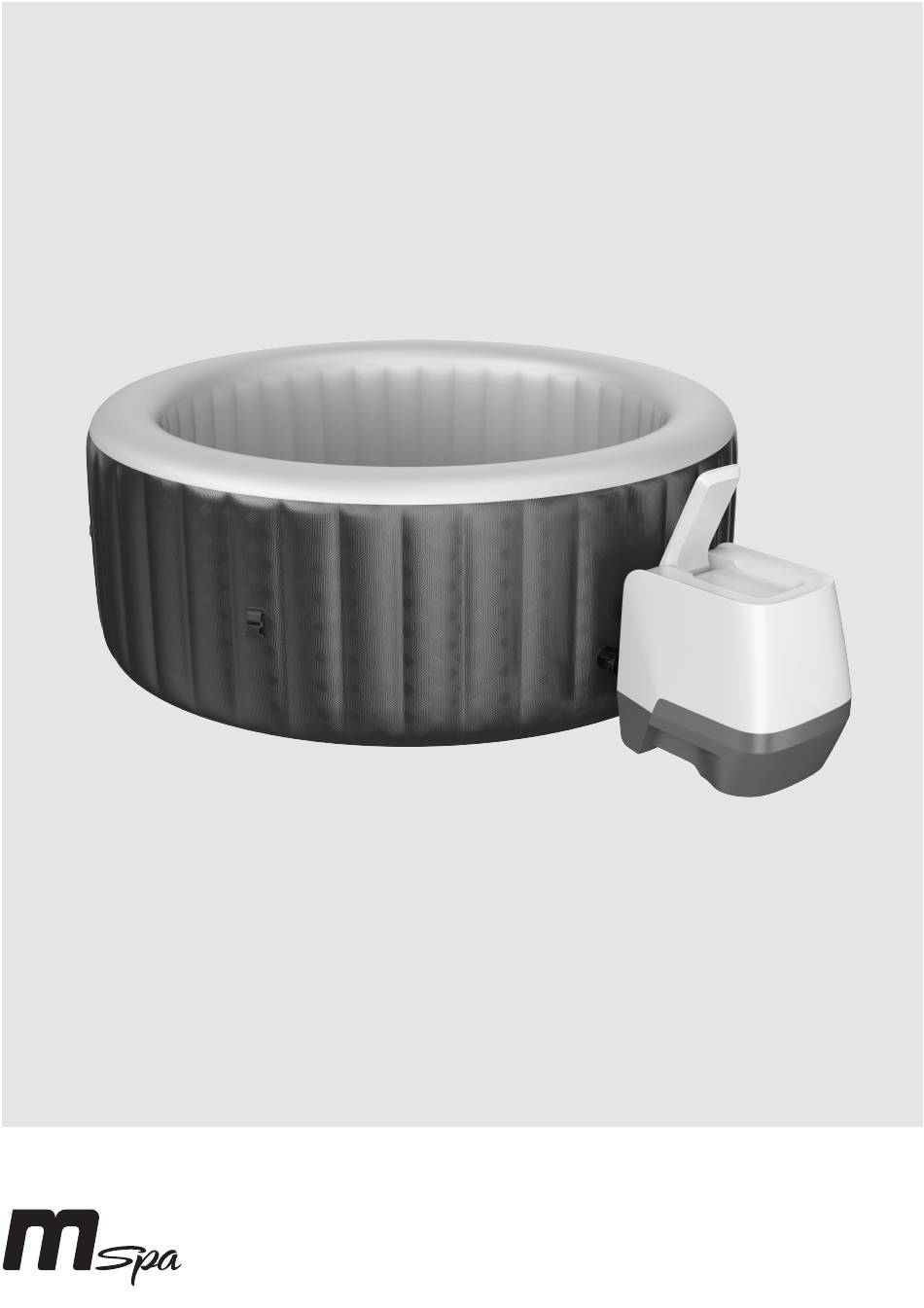

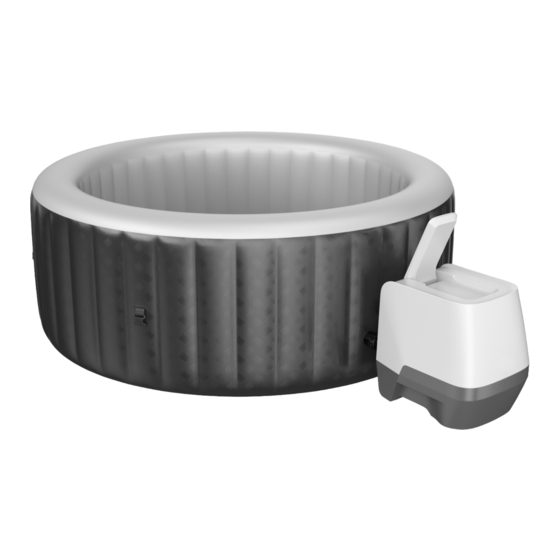

- Page 1 Owner’s Manual INDIGO M-IN063W...
-
Page 2: Table Of Contents
For FAQ, Manuals, Videos or Spare Parts, please visit www.the-mspa.com/support Due to MSpa's continuous product improvement process, MSpa reserves the right to change the specifications and appearance of its products, which may result in updates to the instruction manual without prior notice. MSpa Official Site... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS For your own safety and that of your product, please make sure to follow the safety precautions below. Failure to follow the instructions may result in serious injury, property damage or death. Improper installation or operation will void the warranty. PLEASE ENSURE THAT YOU READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE DANGER... - Page 4 ● Children being supervised not to play with the appliance. ● Make sure that the floor is able to support the expected load, which can be found on the specifications sheet. You will need to calculate the expected water capacity load plus the total weight. ●...
- Page 5 ● Do not use the spa if it is damaged on delivery and/or if it malfunctions in any way. ● Contact the MSpa service center for further instructions. ● Keep all pets away from the spa to avoid any damage.
- Page 6 Warning: The appliance's water protection levels vary across different product zones, as shown in the following diagram. (The installation regulations comply with IEC 60364-7-702.) 2.5 m Zone 2 Zone 1 Zone 2 2.5 m Zone 0 Zone 0 1.5 m 2.0 m 2.0 m 1.5 m...
-
Page 7: Specifications
NOTE: The drawings are for reference only. Actual products may vary. Not to scale. Use accessories exclusively provided by MSpa for safety reasons. When ordering parts, be sure to quote the MSpa model number and description. -
Page 8: First Use And Setup Preparation
FIRST USE AND SETUP PREPARATION Site preparation and requirements ● The spa can be installed indoors or outdoors in around 10 minutes by 1 persons. For household use only. ● The spa must be set up on a flat, smooth and supporting surface that is able to bear the maximum load of the filled spa with the listed maximum number of occupants. -
Page 9: Spa Setup
Do not use faulty sockets or plug boards. Indicator LINE LINE RESET RESET TEST TEST RESET TEST √ Spa Control Unit Connected External Equipotential Bonding Conductors A qualified electrician should wire the spa control unit to the household equipotential terminal using a minimum 1.5mm² solid copper conductor. SPA SETUP For inflation BUBBLE... - Page 10 BUBBLE BUBBLE DOWN min.
-
Page 11: Control Operation
CONTROLLER OPERATION Wi-Fi Icon Low Temperature Warning LED Display Filter Button HEATER Button Ozone Button BUBBLE Button Timer Button Adjust the bubble level by pressing the button (L1:300W, L2:500W, L3:720W ) Up Button DOWN Button JET Button UVC Button LED display °C °F Once powered-up, press the RESET on the PRCD. - Page 12 IMPORTANT: The following conditions will lead to slow water heating ● An ambient temperature lower than 10°C (50°F). ● An outdoor wind speed above 3.5-5.4m/s (8-12mph). ● If the air bubble function is activated when the heater is on. ● If the spa cover is not properly in place when the heater is on.
-
Page 13: Maintenanace
Celsius/Fahrenheit Toggle Button The temperature can be displayed in either Celsius or Fahrenheit. Press the DOWN button for 3 seconds to toggle between the two options. SAFETY LOCK Press the UP and DOWN buttons at the same time for 3 seconds to lock/unlock the controller. In safety lock mode, the controller is disabled and the spa retains all previous settings. - Page 14 NOTE: Change the filter cartridge every 3-5 days, or if the filter cartridge remains soiled and discolored. NOTE: When the spa is filled with water, there should always be a filter cartridge installed on the base. NOTE: Turn off all the functions before changing or cleaning the filter cartridge. 2.
-
Page 15: Drainage, Cleaning And Storage
Water Treatment: ● It is good practice with an existing spa to keep all air jets open and valves closed to allow chemically treated water to flush through all pipework. ● Always follow the chemical manufacturer’s directions, and the health and hazard warning. ●... - Page 16 Deflation Instructions BUBBLE Inflation hose Spa Tub and Air Bladder Repair Use the enclosed repair patch to repair any puncture: 1. Clean and dry the area to be repaired thoroughly 2. Apply the glue to the PVC patch and quickly attach it onto the damaged surface. (Glue is not included) 3.
-
Page 17: Precautions For Seasonal Use
How to use water / air channel stoppers Storage and Preparation for Future Use 1. Drain and clean the spa by following the “Drainage” and “Spa Cleaning” sections. 2. Refer to the instructions to deflate the spa tub and air bladder. 3. -
Page 18: Disposal And Environmental Protection
Clean the parts and tubes that the water goes through HEATING or UVC 1. Add more water to the minimum line F1 shows 15s after pressing FILTER, 2. Clean the parts and tubes that water goes through HEATING or UVC 3. Contact local MSpa Service Center... - Page 19 Contact local MSpa Service Center Spa in&outlet connection not Tighten the in&outlet connection securely tight Drainage valve is not closed Close the drainage valve. Contact the MSpa Service Center, SPA LEAKING completely if spa is still leaking Water leaks from the spa...
-
Page 20: Mspa Limited Warranty
● This warranty is valid only in the country of purchase in such countries where MSpa sells and services the same model with identical technical specifications.Warranty service outside the country of purchase is limited to the terms and conditions of the corresponding warranty in the country of service.
