- Page 1 User Guide Ramblewood Green Gas Cooktop GC2-37P GC2-37N www.ramblewoodgreen.com sales@ramblewoodhk.com 1-888-880-8351...
-
Page 2: Important Safety Instructions
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTATNT. BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. AND SAVE FOR LOCAL GAS AND ELECTRICAL INSPECTOR’S USE. WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Page 3 Disconnect the electrical supply before servicing the cooktop. Injuries may result from the misuse of the cooktop such as stepping, leaning, or sitting on the top surface. Maintenance – Keep cooktop area clear and free from combustible materials, gasoline, and other ...
-
Page 4: Installation
INSTALLATION Installation and service must be conducted by qualified / licensed technician, in accordance with national & local regulation. Failure to comply will void the product warranty. Always disconnect the appliance power before installation & maintenance. These cooktops are designed to be dropped into counter top measuring ~3 inches in depth. Please use the “Cutting size board”... - Page 5 INSTALLATION IN KITCHEN CABINET WITH DOOR (Fig.2) It is recommended that a 30 mm clearance be left between the cooker top and the fixture surface (Fig.2). Note: The adjacent furniture and all materials used in installation must be able to withstand a...
- Page 6 minimum of 85°C above the ambient temperature. However certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discoloration at temperatures below 85°C. DISCHARGING PRODUCTS OF COMBUSTION Extractor hoods connected directly to the outside should be provided, to allow the products of combustion of the cooktop to be discharged (fig.3), (fig.4).
- Page 7 (for 3 or 4 cm thick work top). BUILT-IN DIMENSION MODEL CUT OUT DIMENSION (Inch) 18.9" x 10.6" (W x D) GC2-37P (480mm x 270mm) 18.9" x 10.6" (W x D) GC2-37N (480mm x 270mm) A cardboard with cut out hole size is packed in each box. Please use it to outline & cut hole in the...
-
Page 8: Connect The Cooktop To Gas
CONNECT THE COOKTOP TO GAS Shut off the main gas supply valve before disconnecting the old cooktop and leave it off until the new hook-up has been completed. Don’t forget to relight the pilot on other gas appliances when you turn the gas back on. ... - Page 9 ADAPTING THE COOKTOP FOR DIFFERENT TYPES OF GAS To adapt the cooktop to a different type of gas than th at for which it was designed, (see the sticker under the hob or on the package), the burner nozzles must be changed, as follows: ...
- Page 10 Turn the knob to minimum level The adjustment screw is located in the center of the shaft (fig.9). Please remove/pull out the control knob to access it. Using a screwdriver with max. Diameter 3 mm, turn the screw inside the tap until the correct ...
-
Page 11: Installing The Battery
BATTERY IGNITION (Certain models) If the auto ignition does not work, make sure that the battery, installed at the back of the cooker, is not flat and has been installed correctly. INSTALLING THE BATTERY Insert a DC1.5V battery into the battery compartment (see below Fig.10, Fig.11) in the cover. This battery is the power supply for the electronic ignition of gas burners. - Page 12 ELECTRICAL CONNECTION (110V-120V AC input, certain models) 110V-120V, 60 Hertz, properly grounded dedicated circuit protected by a 15-amp or 20-amp circuit breaker or time-delay fuse. Note: Use of automatic, wireless, or wired external switches that shut off power to the appliance are not recommended for this product.
- Page 13 DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THIS POER CORD. Temporary Method (Adapter plugs not permitted Canada) CAUTION: Attaching adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, not insulated, and the wall receptacle is grounded through the house wiring.
-
Page 14: How To Use The Cooktop

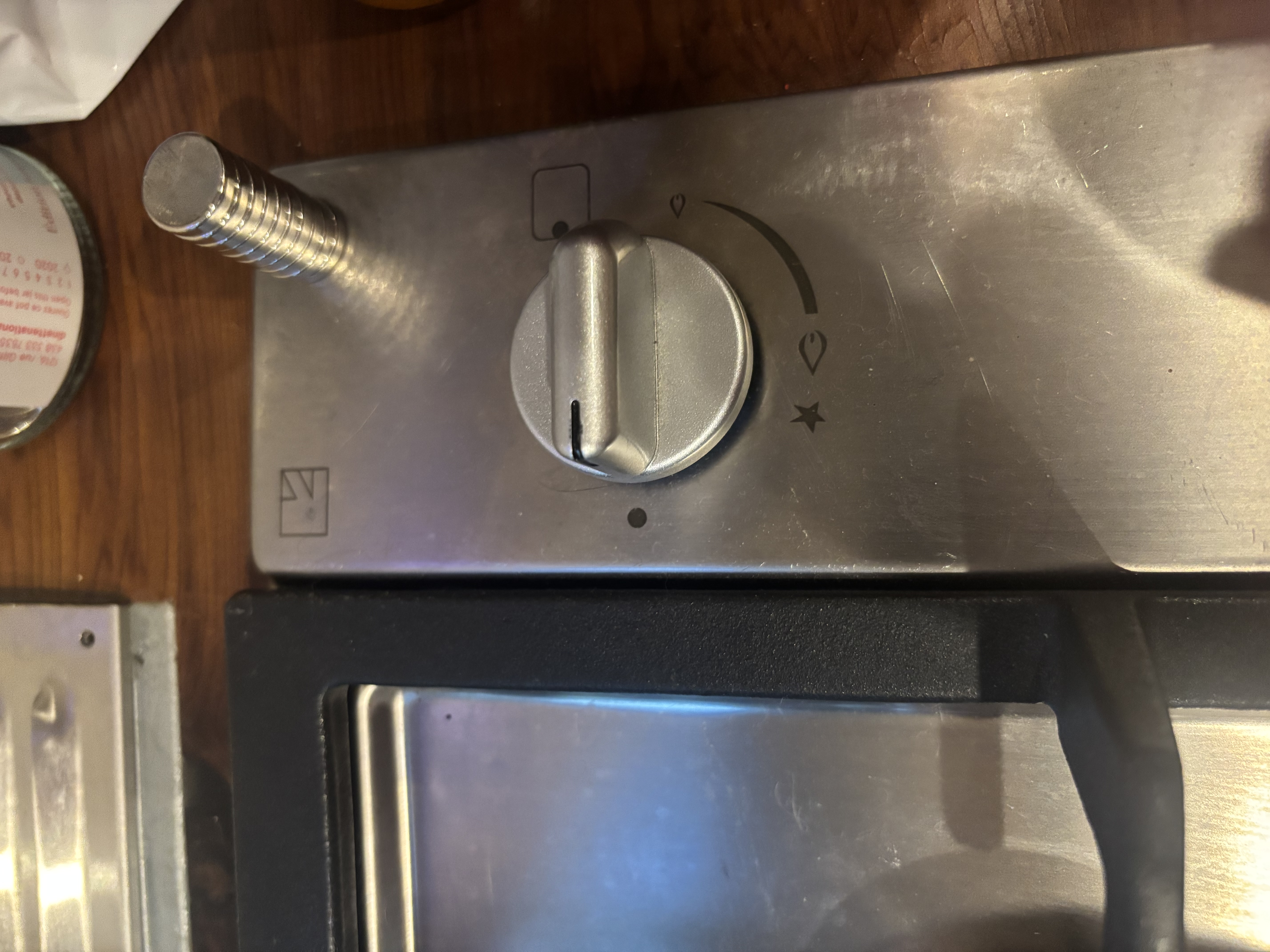

HOW TO USE THE COOKTOP GAS BURNERS Gas flow to the burners is adjusted by turning the knobs which control the valves. Turning the knob so that the indicator line points to the symbols printed on the panel achieves the following functions: ... - Page 15 CHOSE OF THE BURNERS AND PANS For greater efficiency and lesser gas consumption, use the pots and pans with the right diameters of the burners. Avoid having flames extending out from underneath the pans (refer to the table). A smaller diameter pot or pan placed on a larger burner does not necessarily mean that the boiling conditions are reach quicker.
- Page 16 Cleaning and Maintenance Cleaning IMPORTANT: Before any operation of cleaning and maintenance disconnect the appliance from the electrical supply. It’s advisable to clean when the appliance is cold and especially for cleaning the enameled parts. Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces. ...
- Page 17 TRIPLE RING BURNER The triple ring burner must be correctly positioned (seen fig.7); the burner rib must be entering in their ligament as shown by the arrow. The burner correctly positioned must not be able to rotate (fig.8). Then position the cap A and the ring B (fig.8). ...
- Page 18 DEBUG GUIDELINE It may occur that the cooktop does not function properly. Before calling customer service for assistance, let’s see what can be done. First of all, check to see that there are no interruptions in the gas and electrical supplies, and in particular, that the gas valve for the main is open.
- Page 19 The burner does not stay on when set to "Low". Check to make sure that: The gas hose are not clogged. There are no draught near the cooking surface. Tile minimum has been adjusted correctly (see the section entitled, "Minimum Regulation").
