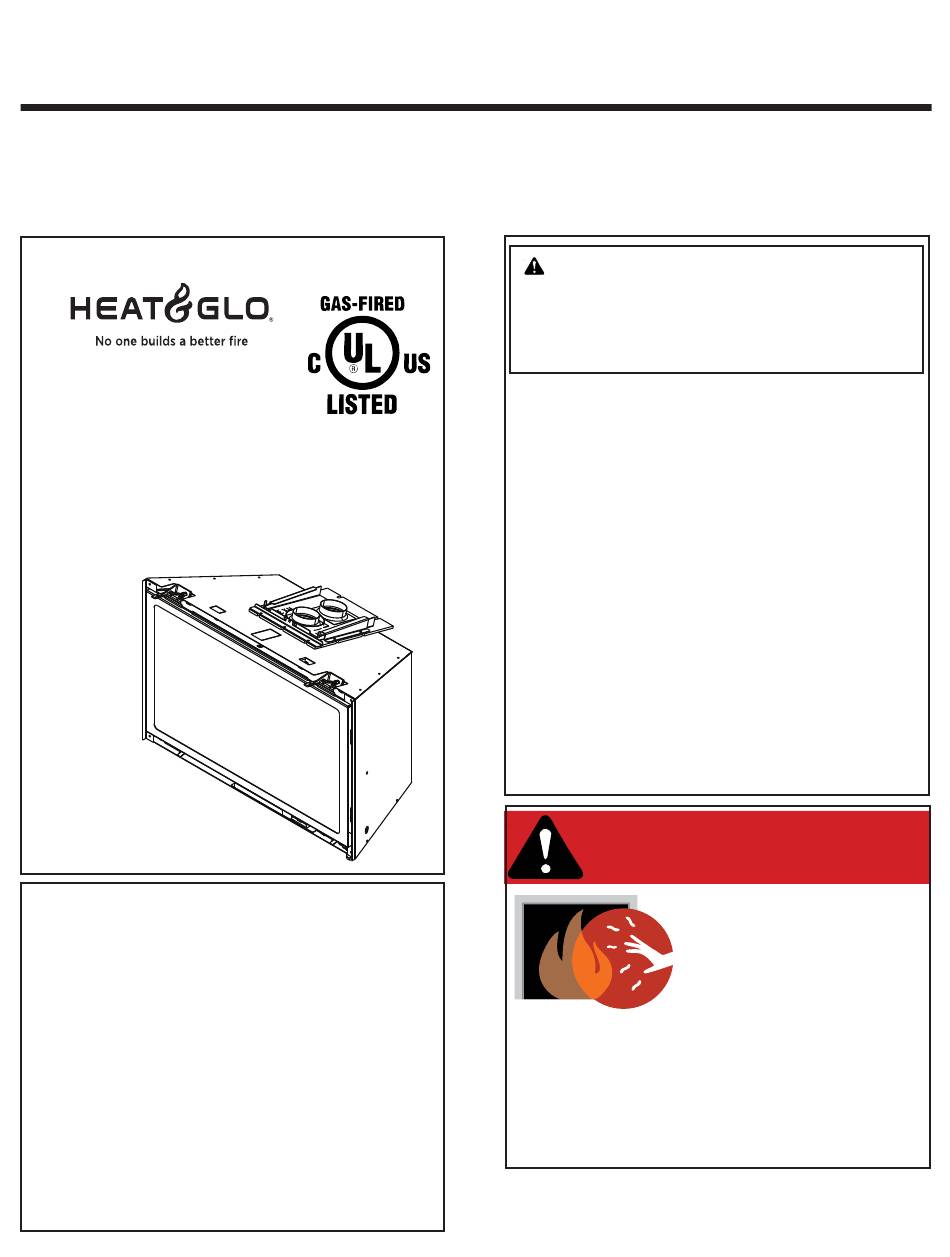

CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity. High temperatures
could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance
NOTICE: DO NOT discard this manual!
Models:
SUPREME-I25-IFT
SUPREME-I30-IFT
SUPREME-I30-BIR
SUPRM-I30LP-IFT
SUPREME-I35-IFT
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21
Installation Manual
Installation and Appliance Setup
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Pour demander un exemplaire en français de ce manuel
d'installation, visitez www.heatnglo.com.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPREME-I30-BIR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HEAT GLO SUPREME-I30-BIR

Summary of Contents for HEAT GLO SUPREME-I30-BIR

  • Page 1 • DO NOT store or use gasoline or other flam- SUPREME-I25-IFT mable vapors and liquids in the vicinity of this SUPREME-I30-IFT or any other appliance. SUPREME-I30-BIR • What to do if you smell gas SUPRM-I30LP-IFT - DO NOT try to light any appliance. SUPREME-I35-IFT - DO NOT touch any electrical switch.

  • Page 2: Table Of Contents

    Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. •...

  • Page 3: Installation Standard Work Checklist

    Location of Fireplace: Lot/Address: Installer: Dealer/Distributor Phone # Model (circle one): SUPREME-I25-IFT, SUPREME-I30-BIR SUPREME-I30-IFT, SUPRM-I30LP-IFT, SUPREME-I35-IFT Serial #: WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could lead to a  re or explosion. Install ONLY components and accessories approved by Hearth & Home Technologies.

  • Page 4: Product Specific And Important Safety Information

    D. High Altitude Installations NOTICE: If the heating value of the gas has been reduced, these rules do not apply. Check with your local gas utility MODELS: SUPREME-I25-IFT, SUPREME-I30-IFT, SUPREME-I30-BIR, SUPRM-I30LP-IFT, or authorities having jurisdiction. SUPREME-I35-IFT When installing above 2000 feet elevation: LABORATORY: Underwriters Laboratories, Inc.

  • Page 5: Getting Started

    Getting Started A. Design and Installation Considerations Multi-Purpose Tool WARNING! Risk of Fire or Explosion! Read all instruc- • See Figure 2.1 for multi-purpose tool functions and tions before starting the installation features. • See Figure 2.2 for multi-purpose tool shipping location. Gas inserts are designed for installations into solid fuel masonry or UL127 listed factory built fireplaces.
  • Page 6 Multi-Purpose Tool - Shipping Location Multi-Purpose Tool - Storage Options OPTION A Multi-purpose tool can be stored behind the appliance front. MULTI-PURPOSE TOOL SHIPPED ZIP- TIED IN THIS AREA OF THE APPLIANCE MULTI-PURPOSE TOOL NOTE: This is not an option for all Inside Fit (INFIT) fronts.

  • Page 7: Good Faith Wall Surface

    B. Good Faith Wall Surface D. Inspect Appliance and Components • Carefully remove the appliance and components from CEILING the packaging. 106 ºF • The vent system components, decorative barrier fronts SURROUND 108 ºF OPENING and surrounds are shipped in separate packages. 52 IN.

  • Page 8: Appliance / Fireplace Requirements And Clearances

    Appliance / Fireplace Requirements and Clearances A. Appliance/Decorative Barrier Front Dimension Diagrams Dimensions are actual appliance dimensions. Use for reference only. For addditional clearances refer to Sections 3.D and 3.E. TOP VIEW ELECTRICAL ACCESS GAS LINE ACCESS FRONT VIEW RIGHT SIDE LEFT SIDE MODEL DIMENSIONS MODEL DIMENSIONS...
  • Page 9 1-7/8 25-5/8 16-1/2 SUPREME-I25-IFT INFIT-25 SUPREME-I30-IFT 27-5/8 16-1/16 1-7/8 30-5/8 20-1/2 SUPREME-I30-BIR INFIT-30 SUPRM-I30LP-IFT 32-5/8 19-9/16 1-7/8 35-5/8 23-1/2 SUPREME-I35-IFT INFIT-35 Figure 3.2 Decorative Barrier Front Dimensions - Inside Fit Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21...
  • Page 10 27-5/16 15-1/8 2-1/4 19-1/2 SUPREME-I25-IFT FS-MI25 SUPREME-I30-IFT 32-5/16 19-1/2 2-1/4 23-1/2 SUPREME-I30-BIR FS-MI30 SUPRM-I30LP-IFT 37-5/16 23-1/2 2-1/4 26-1/2 SUPREME-I35-IFT FS-MI35 1041 Figure 3.3 Decorative Barrier Front Dimensions - Firescreen Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21...
  • Page 11 23-5/8 13-7/16 2-3/8 19-1/2 SUPREME-I25-IFT IA-MI25 SUPREME-I30-IFT 28-9/16 17-1/16 2-3/8 23-1/2 SUPREME-I30-BIR IA-MI30 SUPRM-I30LP-IFT 33-9/16 20-1/2 2-3/8 26-1/2 SUPREME-I35-IFT IA-MI35 1041 Figure 3.4 Decorative Barrier Front Dimensions - Iron Age Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21...
  • Page 12 12-1/16 3-7/8 31-1/4 19-1/2 SUPREME-I25-IFT HARC-MI25 SUPREME-I30-IFT 31-3/8 15-9/16 3-7/8 36-1/4 23-1/2 SUPREME-I30-BIR HARC-MI30 SUPRM-I30LP-IFT 36-3/8 19-1/16 3-7/8 41-1/4 26-1/2 SUPREME-I35-IFT HARC-MI35 1048 Figure 3.5 Decorative Barrier Front Dimensions - Halston Arch Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21...

  • Page 13: Minimum Fireplace Opening

    • The metal floor of the solid fuel firebox may be removed B. Minimum Fireplace Opening to facilitate the installation of the insert. Minimum fireplace opening requirements for a standard 3/4 • A metal lip protuding above the hearth pad of the solid inch deep surround are shown in Figure 3.8.
  • Page 14 TOP VIEW FRONT VIEW SIDE VIEW 7/8 in. (Standard) 2 in. (Deep) STANDARD SURROUND MINIMUM FIREBOX OPENING 25 inch 30 inch 35 inch Location Inches Millimeters Inches Millimeters Inches Millimeters Opening Width - Rear 15-1/8 20-1/8 25-1/8 Opening Width - Front 26-5/8 31-5/8 36-5/8...

  • Page 15: Zero Clearance Wall Extension

    C. Zero Clearance Wall Extension UNIT (min) (min) Surrounds MUST overlap wall extension. 25 in. 30 in. 33-1/2 A non-combustible wall extension can be used to cover 35 in. an existing masonry surface. Wall extensions are typically used to improve cosmetics. WARNING! Risk of Fire! Comply with all minimum clear- ances to combustibles as specified.
  • Page 16 Painting If desired finishing includes a painted wall, a high-quality 100% acrylic latex paint with a high-quality latex primer base coat are recommended around the appliance to limit STEEL STUD SIDE VIEW discoloration. Oil-based or standard acrylic paints may be more prone to discoloration due to heat exposure. MASONRY 12 in.

  • Page 17: Mantel, Wall Projections, & Hearth Extensions

    D. Mantel, Wall Projections, & Hearth Mantels or Wall Projections - Non-Combustible Extensions WARNING! Risk of Fire! Comply with all minimum clear- ances to combustibles as specified. Framing or finishing 12 in. material closer than the minimums listed must be construct- ed entirely of noncombustible materials (i.e., steel studs, concrete board, etc).

  • Page 18: Hearth Extension / Vinyl Flooring

    Mantels - Combustible E. Hearth Extension 12 in. 12 in. 1/2 in. Measurement to bottom Measurement of appliance: from surround = 29-1/4 in. (25") opening. = 32-3/4 IN. (30") Figure 3.17 Minimum Required 1/2 in. Gap to Bottom of Front = 36-1/4 IN.
  • Page 19 Vinyl Flooring SIDE VIEW Vinyl flooring is sensitive to heat. To avoid damage to the vinyl flooring, a 12 inch minimum x 12 inch mini- mum hearth is recommended when using vinyl flooring up to the wall. See Figure 3.19. If no hearth is used, it is recommended to provide a minimum of 24 inches of clearance in front of the appliance to the vinyl floor- ing OR the bottom of the appliance should be raised a...

  • Page 20: Installation Preparation

    Installation Preparation D. Fireplace Conversion Notice Prepare the existing solid fuel masonry or factory built non-combustible firebox for installation. The fireplace conversion notice is included in the appliance manual bag. Permanently attach the label with the follow- A. Cleaning ing warning to the inside lower back of the fireplace firebox Prior to installing the gas insert: into which the insert is being installed.

  • Page 21: Installing Vent Pipe And Appliance

    Installing Vent Pipe and Appliance A. Vent Limits CAUTION! ALL vent specifications MUST be followed. This product is tested and listed to these specifications. The abbreviations listed in this vent table key are used in Appliance performance will suffer if specifications are not the vent diagrams.

  • Page 22: Using Vertical Restrictor

    B. Using Vertical Restrictor When 20-25+ feet of vertical venting is used, vertical restrictors will need to be adjusted. See Figure 5.2 and 5.3. TERMINATION INLET COLLAR EXHAUST COLLAR EXHAUST VENT PIPE V = 10 FT. MINIMUM 50 FT. MAXIMUM RESTRICTOR DOORS FRONT VIEW SHOWS RESTRICTORS IN THE OPEN POSITION AND BENT AT 90º...

  • Page 23: Venting Components

    C. Venting Components To prevent odors and cold air drafts, it may be necessary to place non-combustible insulation or field fabricated metal CAUTION! Risk of Cuts/Abrasions/Flying Debris. plates around the vent pipe flues as they go through the Wear protective gloves and safety glasses during instal- damper.

  • Page 24: Connecting To Slp

    D. Connecting to SLP This appliance is listed for use with LINK-DV systems and components only. It is permissible to extend venting Terminating horizontally is not allowed. above existing chimney (within specified maximum ver- Vertical terminations are measured to top of chimney. tical limits) using SLP series 6-5/8 inch gas direct-vent pipe.

  • Page 25: Connecting Vent Pipe

    E. Connecting Vent Pipe Reference instructions in the termination kit. • Install the 3 in. flexible vent pipe(s) down through the chimney. • Secure the exhaust flexible vent pipe to the exhaust starting collar on top of the appliance with three screws. See Figure 5.1.

  • Page 26: Placing, Securing And Leveling The Appliance

    F. Placing, Securing and Leveling the Appliance WARNING! Risk of Explosion/Combustion Fumes! Connect vent sections per installation instructions. NOTE: Use Allen bolts to • Connect exhaust vent pipe ONLY to exhaust starting adjust rear level legs. collar and termination cap center collar. •...

  • Page 27: Installing Termination Cap

    G. Installing Termination Cap WARNING Fire Risk. Maintain vent clearance to combustibles as specified. • DO NOT pack air space with insulation or other materials. Failure to keep insulation or other materials away from vent pipe may cause overheating and fire. CAUTION! Risk of Cuts/Abrasions/Flying Debris.

  • Page 28: Electrical Information

    Electrical Information A. General Information Appliance Cord Length (approximate) WARNING! Risk of Shock or Explosion! DO NOT wire Appliance Size Left Side Right Side 110-120 VAC to the valve or to the appliance wall switch. 25 in. 10 ft. 6 in. 8 ft.

  • Page 29: Wiring Requirements

    B. Wiring Requirements IntelliFire™ Touch Ignition System Wiring WARNING! Risk of Shock or Explosion! DO NOT wire IPI controlled appliance power cord to a switched circuit. Incorrect wiring will override IPI safety lockout. • Refer to Figure 6.2, IntelliFire Touch (IPI) Wiring Diagram.

  • Page 30: Installation / Service For Fan

    Battery Pack C. Installation / Service for Fan Battery pack is not factory installed in appliances. See On units already installed, removal of decorative barrier appliance manual bag for battery pack. Battery pack front and gas insert may be required. may be installed without batteries during normal opera- Option 1: tion.

  • Page 31: Installation / Service For Halogens

    D. Installation / Service for Halogens On units already installed, removal of decorative barrier front and gas insert may be required. Option 1: Option 2: • Detach flexible liner from top of unit if insert is installed by • Remove appliance front, glass, logs, base pan assem- removing the collar slide plate screw.

  • Page 32: Gas Information

    Gas Information A. Fuel Conversion COMPONENT • Make sure the appliance is compatible with available gas TRAY RECEIVER types. • Conversions must be made by a qualified service PRESS TAB TO technician using Hearth & Home Technologies specified RELEASE and approved parts. COMPONENT •...

  • Page 33: Gas Pressure

    B. Gas Pressure C. Gas Connection • Optimum appliance performance requires proper input • Refer to Reference Section 3 for location of gas line pressures. access in appliance. • Gas line sizing requirements will be determined in ANSI • The gap between supply piping and gas access hole Z223.1 National Fuel Gas Code in the USA and CAN/ may be caulked with caulk with a minimum of 300 CGA B149 in Canada.

  • Page 34: High Altitude Installations

    Figure 7.5 Air Shutter Air Shutter Settings Propane SUPREME-I25-IFT 1/2 in. 1/2 in. SUPREME-I30-IFT 1/2 in. Full Open SUPREME-I30-BIR 1/2 in. Full Open SUPRM-I30LP-IFT 1/2 in. Full Open SUPREME-I35-IFT 3/8 in. Full Open Heat & Glo • SUPREME-I25/30/35-IFT, SUPRME-I30-BIR, SUPRM-I30LP-IFT Installation Manual • 2532-980 Rev. X • 12/21...

  • Page 35: Finishing

    Finishing A. Mantel, Wall Projections & Hearth Mantels or Wall Projections - Non-Combustible Extensions WARNING! Risk of Fire! Comply with all minimum clear- ances to combustibles as specified. Framing or finishing 12 in. material closer than the minimums listed must be construct- ed entirely of noncombustible materials (i.e., steel studs, concrete board, etc).

  • Page 36: Hearth Extension

    Mantels - Combustible B. Hearth Extension 12 in. 12 in. 1/2 in. Measurement to bottom Measurement of appliance: from surround = 29-1/4 in. (25") opening. Figure 8.4 Minimum Required 1/2 in. Gap = 32-3/4 IN. (30") = 36-1/4 IN. (35") •...
  • Page 37 NO VINYL / ADHESIVE FLOORING Figure 8.6 Hearth - Combustible Material Exception Vinyl / Adhesive Flooring - Minimums Appliance Size Depth (X) Width (Y) 25 in. 16 in 25-3/4 in. 30 in. 16 in 30-3/4 in. 35 in. 16 in 35-3/4 in.

  • Page 38: Appliance Setup

    Appliance Setup A. Fixed Glass Assembly WARNING! Risk of Asphyxiation! Handle fixed glass assembly with care. Inspect the gasket to ensure it is undamaged and inspect the glass for cracks, chips or scratches. • DO NOT strike, slam or scratch glass. •...

  • Page 39: Remove The Shipping Materials

    B. Remove the Shipping Materials Remove shipping brace and screws supporting logs and discard (on SUPREME-I30-BIR appliance only) materials from inside or underneath the firebox. Remove shipping materials from inside or underneath the firebox. Note: Remove the zip ties from the appliance that hold the electrical cord, gas flexline and multi-purpose tool in place for shipping.

  • Page 40: Install The Log Assembly

    LOG PLACEMENT INSTRUCTIONS G. Install the Log Assembly Log Set Assembly: LOGS-2531, LOGS-2532, LOGS-2533, LOGS-2532-BIRCH Models: SUPREME-I25-IFT, SUPREME-I30-IFT, SUPREME-I30-BIR SUPRM-I30LP-IFT, SUPREME-I35-IFT MODEL: SUPREME-I25-IFT Leave this manual with party responsible for use and operation. SUPREME-I25-IFT SRV LOGS LOG ID SRV PART # MOLDED LOG # CAUTION! Risk of Cuts or Abrasions.
  • Page 41 LOG #3: With the burnout of Log #3 facing left, line the big end up with the edge of the basepan and the firebox wall or refractory. The small end will sit half on the end of Log #2 and half on the air scoop as shown in Figure 5. LOG #4: The Y-end of Log #4 should sit on the flat spot of Log #2, the other end will sit on the flat spot of Log #1.
  • Page 42 MODELS: SUPREME-I30-IFT, SUPREME-I30-BIR, SUPRM-I30LP-IFT, I30X-AU SUPREME-I30-IFT, SUPRM-I30LP-IFT I30X-AU SRV LOGS SUPREME-I30-BIR SRV LOGS LOG ID SRV PART # MOLDED LOG # LOG ID SRV PART # MOLDED LOG # SRV2532-711 32-1 SRV2532-741 SRV2532-712 32-2 SRV2532-742 SRV2532-743 SRV2532-713 32-3 SRV2532-744 SRV2532-714...
  • Page 43 LOG #2: With the bark end of Log #2 towards the back of the firebox, set the log onto the burner behind log pins B and C as shown in Figure 13. Rotate the log counter clockwise so that it contacts the air scoop, along with pins B and C. LOG #3: With the burnout of Log #3 facing left, set the large end against log pin D, place the small end on the flat spot of Log #1.
  • Page 44 MODELS: SUPREME-I35-IFT SUPREME-I35-IFT SRV LOGS LOG ID SRV PART # MOLDED LOG # SRV2533-711 33-1 SRV2533-712 33-2 SRV2533-713 33-3 SRV2533-714 33-4 SRV2532-715 33-5 SRV2538-715 33-5 NOTICE: To simplify the installation process, use Figure 17 to positively identify each individual log before beginning installation.
  • Page 45 LOG #3: With the burnout facing left, place the big end of Log #3 against log pin F and slide back until it contacts log pin G as shown in Figure 21. The small end will sit on the flat spot of Log #2. LOG #4: Set the non-Y end of log 4 on the flat spot of Log #1.

  • Page 46: Install Decorative Barrier Front And Surround

    H. Install Decorative Barrier Front and Surround A decorative barrier front and surround is required to complete this installation. Installation instructions are included with the decorative barrier front and surround. Consult your dealer for a list of decorative barrier front and surround options.

  • Page 47: Appliance Break-In

    I. Appliance Break-In J. Heat Management Follow the initial break-in procedure below to cure the Heat Output materials used to manufacture the fireplace and the Heat Output is managed through the RC400 remote con- finishing materials around it. trol that comes standard with the fireplace. •...

  • Page 48: Reference Materials

    Reference Materials A. Vent Components Direct Vent Flex Liner Kits (see Figure 10.1) LINK-DV30B: Masonry 3 inch flex liner kit. Expands to 30 feet. Includes: two liners, termination cap and flashing. LINK-DV4-30B: Masonry 3 inch flex liner kit. Expands to 30 feet and 4 feet respectively.

  • Page 49: Accessories

    B. Accessories Optional Halogen Lights Install approved accessories per instructions included If desired, a halogen light kit may be added. Contact your with accessories. Contact your dealer for a list of ap- dealer to order the correct halogen light kit. Follow the proved accessories.
