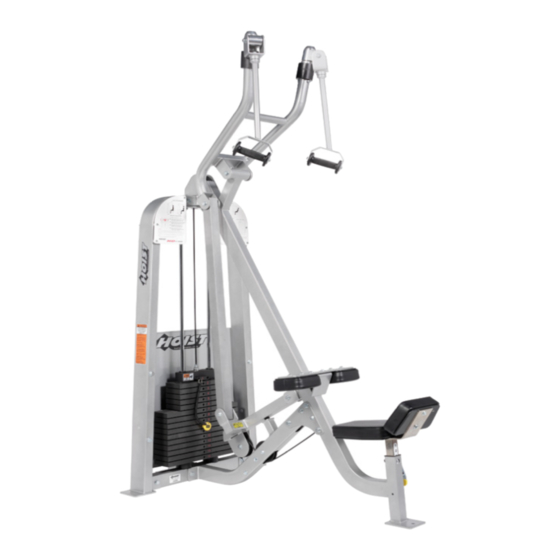

Summary of Contents for Hoist Fitness HD1700
- Page 1 HD1700 LAT/HIGH ROW Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676 CATALOG NUMBER (858) 578-9558 0102-003...
-
Page 2: Table Of Contents
HARDWARE LISTING ..............BOLT SIZING CHART ..............WASHER SIZING CHART ............WEIGHT RATIOS ............... DECAL PLACEMENT ..............WEIGHT TRAINING TIPS ............WEIGHT TRAINING EXERCISE LOG ........GENERAL MAINTENANCE INFORMATION ......MAINTENANCE SCHEDULE............LIMITED WARRANTY ..............Page - 1 HD1700 Assembly... -
Page 3: Instructions (Step 1)
Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on . TOOLS REQUIRED Socket Wrench 1/2”, 9/16" and 3/4" Sockets 3/4” Open End Wrench Crescent Wrench Rubber Mallet Tape Measure HD1700 Assembly Page - 2... - Page 4 O W N E R S Page - 3 HD1700 Assembly...
-
Page 5: Frame Assembly (Step 2)
O W N E R S Step 2 F R A M E A S S E M B L Y HD1700 Assembly Page - 4... - Page 6 2 - Top Pulley Mount B - 1/2”-13UNC x 3” Hex Head Bolt (WZ) 3 - Weight Stack Mount AA - 1/2” Washer 4 - Rear Tie BA - 1/2” Nylok Nut 5 - Front Support Page - 5 HD1700 Assembly...
- Page 7 O W N E R S HD1700 Assembly Page - 6...
- Page 8 6 - Front Upright AA - 1/2” Washer 7 - Gusset Plate BA - 1/2” Nylok Nut CA - Rubber Foot Pad CS - 19mm dia. x 57.5mm lg. Axle CT - 11/16” Flanged Spacer Page - 7 HD1700 Assembly...
- Page 9 SPACER FOR A PULLEY WHICH IS INSTALLED IN A LATER STEP . A LATER STEP . STEP -3- STEP -3- STEP -2- STEP -2- *ASSEMBLY SHOWN IN THREE *ASSEMBLY SHOWN IN THREE STEPS FOR CLARITY. STEPS FOR CLARITY. HD1700 Assembly Page - 8...
- Page 10 AE - 3/8” Lock Washer BA - 1/2” Nylok Nut CS - 19mm dia. x 57.5mm lg. Axle CE - 25.4mm dia. x 120mm lg. Axle CF - Rubber Sleeve CG - Aluminum Bolt on Cap Page - 9 HD1700 Assembly...
- Page 11 STEP -3- STEP -3- STEP -2- STEP -2- *ASSEMBLY SHOWN IN THREE *ASSEMBLY SHOWN IN THREE NOTE: REPEAT ASSEMBLY ON NOTE: REPEAT ASSEMBLY ON STEPS FOR CLARITY. STEPS FOR CLARITY. OPPOSITE SIDE. OPPOSITE SIDE. HD1700 Assembly Page - 10...
- Page 12 15 - Guide Rod CK - Latch Spring 22 - 20 lb. Intermediate Weight CL - Latch Pin 23 - 12 1/2 lb. Intermediate Weight CM - C-Clip 24 - 8 1/4 lb. Top Plate Page - 11 HD1700 Assembly...
- Page 13 O W N E R S HD1700 Assembly Page - 12...
- Page 14 AF - 5/16” Lock Washer BA - 1/2” Nylok Nut CB - 25.4mm dia. x 63mm lg. Axle CN - Handle CP - 25.4mm dia. x 148mm lg. Axle CQ - 3/4” Thrust Washer CR - 3/4” Thrust Bearing Page - 13 HD1700 Assembly...
- Page 15 O W N E R S HD1700 Assembly Page - 14...
- Page 16 8 - Resistance Lever Arm L - 3/8”-16UNC x 1 3/4” Hex Head Bolt (WZ) AB - 3/8” Washer BB - 3/8” Nylok Nut CC - 1/2” Flanged spacer CD - 4 1/2” Pulley CT - 11/16” Flanged Spacer Page - 15 HD1700 Assembly...
- Page 17 *SEE DETAIL -A- FOR PULLEY ASSEMBLY. PULLEY ASSEMBLY. DETAIL -B- DETAIL -B- *SEE DETAIL -B- FOR *SEE DETAIL -B- FOR PULLEY ASSEMBLY. PULLEY ASSEMBLY. *SEE DETAIL -C- FOR *SEE DETAIL -C- FOR PULLEY ASSEMBLY. PULLEY ASSEMBLY. HD1700 Assembly Page - 16...
-
Page 18: Cable Assembly (Step 3)
Part Descriptions Hardware Descriptions 5 - Front Support K - 3/8”-16UNC x 2 1/2” Hex Head Bolt (WZ) 25 - HD1700 Lat/Highrow Cable BB - 3/8” Nylok Nut CC - 1/2” Flanged Spacer CV - Cable Mount Page - 17... -
Page 19: Cable Adjustment/General Maintenance
WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. ENSURE PROPER CONNECTION. NOTE: NOTE: BE SURE CABLE RUNS BETWEEN BE SURE CABLE RUNS BETWEEN PULLEY AND FRAME BOLT. PULLEY AND FRAME BOLT. 136 13/16” [3475mm] 136 13/16” [3475mm] HD1700 Assembly Page - 18... - Page 20 Q - 5/16”-18UNC x 1 1/4” Button Head Botl (WZ) 19 - Leg Upholstery AB - 3/8” Washer 20 - Back Upholstery AC - 5/16” Washer 21 - Seat Upholstery AF - 5/16” Lock Washer BB - 3/8” Nylok Nut Page - 19 HD1700 Assembly...
- Page 21 O W N E R S HD1700 Assembly Page - 20...
- Page 22 Wrench Tighten *IMPORTANT* Now that the Hd1700 machine is completely assembled take time to assure that your unit is assembled square and perpendicular. To check this use a Level to check that the Guide Rods are perpendicular in both directions.
- Page 23 O W N E R S *REPEAT PLACARD ASSEMBLY ON *REPEAT PLACARD ASSEMBLY ON OPPOSITE SIDE. ONE SIDE SHOWN OPPOSITE SIDE. ONE SIDE SHOWN ASSEMBLED FOR CLARITY. ASSEMBLED FOR CLARITY. HD1700 Assembly Page - 22...
-
Page 24: Pre-Assembled Parts
22 - 12 1/2 lb. Intermediate Weight DN - Bushing 23 - 20 lb. Intermediate Weight DP - Bumper 24 - 8 1/4 lb. Top Plate DQ - 2” Dia. End Cap DR - 3/4” Flanged Bearing. Page - 23 HD1700 Assembly... - Page 25 O W N E R S 10 1 HD1700 Assembly Page - 24...
-
Page 26: Parts Listing
Leg Upolstery 022-01PD0048 Back Upolstery 022-01PD0047 Seat Upolstery 26-STD-SW104 20 LB Intermediate Weight 26-STD-SW101 12 1/2 LB Intermediate Weight 026-1300034 8 1/4 LB Top Plate 026-01C248T HD1700 Lat/High Row Cable 026-1100089 Shield 026-01X0997 Handle Weldment Page - 25 HD1700 Assembly... -
Page 27: Hardware Listing
Rubber Foot Pad 26-STD-05-0280 25.4mm dia. x 63mm lg. Axle 26-STD-08-0010 1/2" Flanged Spacer 26-STD-06-0025 4 1/2" Pulley 26-STD-05-0281 25.4mm dia. x 120mm lg. Axle 026-01PL292 Rubber Sleeve 026-01M0519 Aluminum Bolt on Cap 26-STD-06-0253 Weight Stack Bumper HD1700 Assembly Page - 26... - Page 28 26-STD-05-0290 19mm dia. x 57.5mm lg. Axle 11/16" Flanged Spacer 026-01M0532 026-01M0586 Cable Mount 26-STD-06-0326 White Spacer 021-0013099 HD1700 Placard (Left) HD1700 Placard (Right) 021-0013100 26-STD-06-0329 Plug 014-0009007 1" Flanged Ball Bearing 026-01PL134 Guide Rod Bushing 7/16" Roll Pin x 2 3/4" LG...
-
Page 29: Bolt Sizing Chart
O W N E R S B O L T S I Z I N G C H A R T Page - 28 HD1700 Assembly... -
Page 30: Washer Sizing Chart
O W N E R S W A S H E R S I Z I N G C H A R T 1” LONG HEAVY 11/16” LONG HEAVY FLANGED SPACER FLANGED SPACER Page - 29 HD1700 Assembly... - Page 31 O W N E R S W A S H E R S I Z I N G C H A R T SMALL, SAE, 26mm LARGE, USS, 34mm LARGE, USS, 25mm HD1700 Assembly Page - 30...
-
Page 32: Weight Ratios
Hoist reserves the right to modify the weight stack from the one shown without prior notice. Page - 31 HD1700 Assembly... - Page 33 O W N E R S HD1700 Assembly Page - 32...
-
Page 34: Decal Placement
10 - 021-0004064 11 - 021-0003221 12 - 021-0003113 Place the #1 decal on the Place the #1 decal on the right side of the weight right side of the weight selector pin holder. selector pin holder. Page - 33 HD1700 Assembly... - Page 35 SERIAL # DECAL; Always refer to the number Shown on your piece of equipment when talking to customer service or ordering parts. 1-800-548-5438 www.hoistfitness.com SERIAL # 00-00-000000 021-0003254 00-00-000000 SERIAL # DECAL 021-0003221 WARNING WARNING PINCH PINCH POINTS POINTS 021-0003138 021-0003113 HD1700 Assembly Page - 34...
- Page 36 D E C A L P L A C E M E N T This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0003130 NOTICE 021-0003131 Page - 35 HD1700 Assembly...
- Page 37 O W N E R S M A N U A L D E C A L P L A C E M E N T 021-0003334 021-0003011 HD1700 Assembly Page - 36...
- Page 38 This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0004064 CAUTION CAUTION MOVING PARTS MOVING PARTS 021-0003093 021-0003137 Page - 37 HD1700 Assembly...
- Page 39 O W N E R S HD1700 Assembly Page - 38...
-
Page 40: Weight Training Tips
Pay attention to your breathing. Exhale when you exert is a general rule of thumb. Never hold your breath. Page - 39 HD1700 Assembly... -
Page 41: Weight Training Exercise Log
O W N E R S HD1700 Assembly Page - 40... - Page 42 O W N E R S Page - 41 HD1700 Assembly...
-
Page 43: General Maintenance Information
O W N E R S M A N U A L HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Locks, Swivels, Weight Stack Pins: Check all pieces for signs of visible wear or damage. Check springs in snap hooks and pull-pins for proper tension and alignment. - Page 44 (lithium, super lube, etc.) into the inside of the bearing. Using your finger, press the grease into the ball-bearings and their tracks. Repeat until the ball-bearing tracks are full of grease. Insert the shaft back into the bearing and wipe off excess grease. PLEASE KEEP THIS FOR YOUR RECORDS. Page - 43 HD1700 Assembly...
-
Page 45: Maintenance Schedule
6 MONTHS YEARLY Linear Bearings Replace; YEARLY 3 YEARS Cables, Belts and Connecting Parts Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. HD1700 Assembly Page - 44... -
Page 46: Limited Warranty
Hoist Fitness Systems warrants this product to the original purchaser to be free from defects in workmanship and/or materials under normal use or service. If at any time a component part is defective, Hoist Fitness Systems shall repair or replace it (at Hoist Fitness Systems option) within a reasonable period of time. This warranty does not cover costs of removal.
