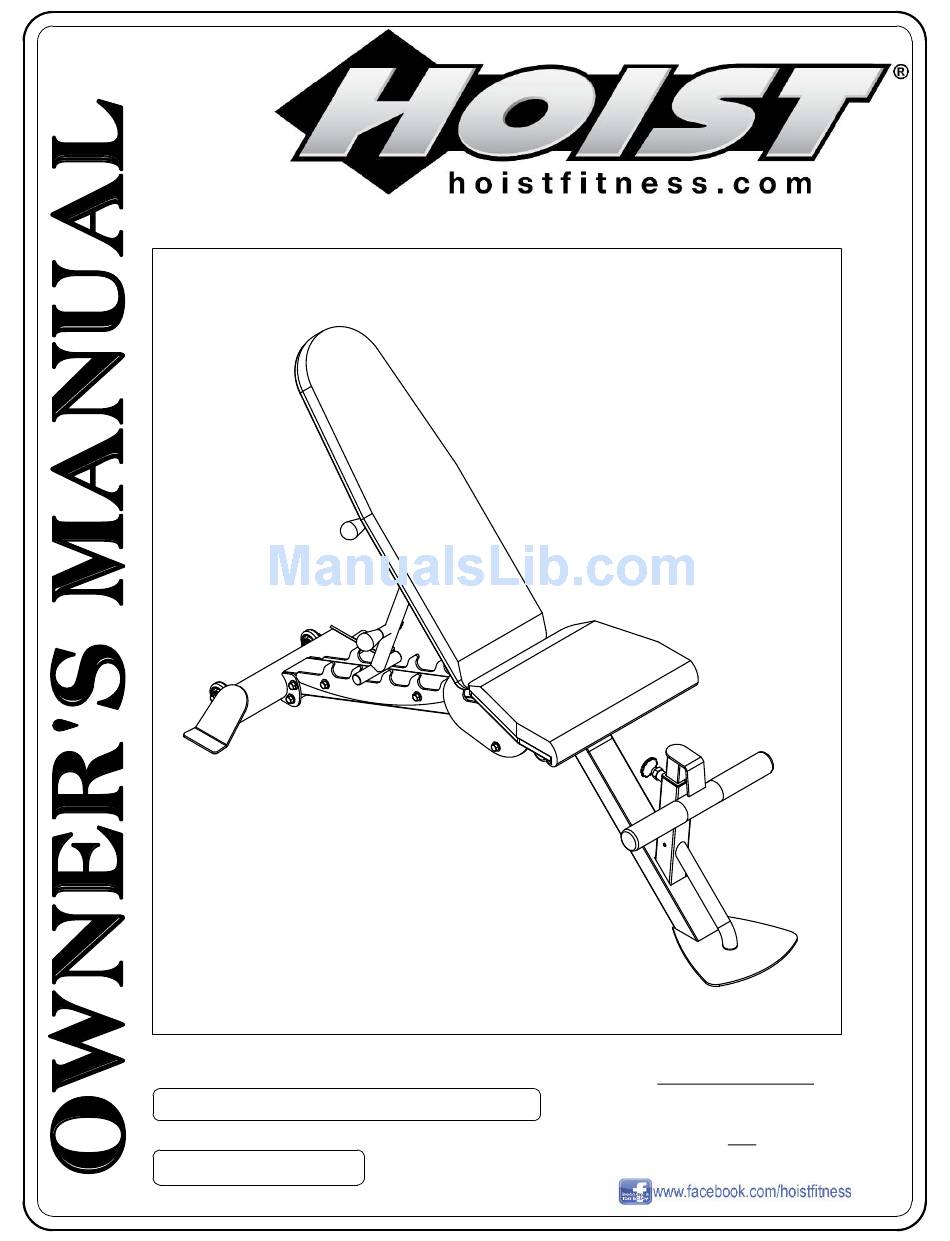

- Page 1 HF4165 6 POSITION F.I.D. Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (858) 578-7676 MACHINE CODE (858) 578-9558...
-
Page 5: Frame Assembly
OWNERS MANUAL FRAME ASSEMBLY PAGE 04 HF-4165... - Page 6 FRAME ASSEMBLY STEP 1 ITEM NO. PART NUMBER DESCRIPTION 026-01X2240 REAR BASE ASSEMBLY 026-01X5414 MAIN FRAME ASSEMBLY 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 011-0407025 3/8"-16UNC X 4.00" HHB (WZ) 012-0104008 3/8"-16 UNC THIN NYLOCK NUT (WZ) HF4165 ASSEMBLY PAGE 05...
- Page 7 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. PAGE 06 HF-4165 ASSEMBLY...
- Page 8 5/16" SAE FLAT WASHER (WZ) 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 011-0107029 5/16"-18UNC X 1.00" HHB (WZ) 011-0407022 3/8"-16UNC X 1.00" HHB (WZ) 011-0407025 3/8"-16UNC X 4.00" HHB (WZ) 012-0104008 3/8"-16 UNC THIN NYLOCK NUT (WZ) HF4165 ASSEMBLY PAGE 07...
- Page 9 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. NOTE: - ASSEMBLE PAD (7) BEFORE INSTALLING SHAFT (16). - WRENCH TIGHTEN BOLTS. PAGE 08 HF4165 ASSEMBLY...
- Page 10 MAIN FRAME ASSEMBLY 026-01X2782 BACK PAD MOUNT 026-01X5413 SEAT MOUNT 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 011-0307060 1/2"-13UNC X 6.00" HHB (WZ) 012-0304011 1/2"-13 UNC THIN NYLOCK NUT (WZ) 013-0102006 1/2" FLAT NYLON WASHER HF4165 ASSEMBLY PAGE 09...
- Page 11 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLT (33) THEN LOOSEN NUT JUST ENOUGH FOR (3) & (17) TO PIVOT FREELY. - WRENCH TIGHTEN ALL OTHER HARDWARE. PAGE 10 HF4165 ASSEMBLY...
- Page 12 OWNERS MANUAL FRAME ASSEMBLY STEP 4 ITEM NO. PART NUMBER DESCRIPTION 026-01M0888 SHAFT 1.00" X 5.00" LG. 026-01X5413 SEAT MOUNT 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 011-0407022 3/8"-16UNC X 1.00" HHB (WZ) HF4165 ASSEMBLY PAGE 11...
- Page 13 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. PAGE 12 HF4165 ASSEMBLY...
- Page 14 FRAME ASSEMBLY STEP 5 ITEM NO. PART NUMBER DESCRIPTION 026-01X2782 BACK PAD MOUNT 026-01X2250 SUPPORT ASSEMBLY 013-0102003 1/2" X 27mm SAE FLAT WASHER (WZ) 011-0407000 1/2"-13UNC X 3.50" HHB (WZ) 012-0304011 1/2"-13 UNC THIN NYLOCK NUT (WZ) HF4165 ASSEMBLY PAGE 13...
- Page 15 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLT (32). THEN LOOSEN NUT JUST ENOUGH FOR SUPPPORT ASSEMBLY (4) TO PIVOT FREELY. PAGE 14 HF4165 ASSEMBLY...
- Page 16 1.00" X 7.12" LG. 013-0402007 3/8" X 22mm FLAT WASHER (WZ) 011-0112004 1/2" X 1.50" SHSS (WZ) 012-0104008 3/8"-16 UNC THIN NYLOCK NUT (WZ) 013-0602005 .52" ID X .88" OD NYLON F/W 026-01X2536 FOOT PEG ASSEMBLY HF4165 ASSEMBLY PAGE 15...
- Page 17 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLT (28). THEN LOOSEN NUT JUST ENOUGH FOR SHAFT (15) TO PIVOT FREELY. PAGE 16 HF4165 ASSEMBLY...
- Page 18 OWNERS MANUAL FRAME ASSEMBLY STEP 7 ITEM NO. PART NUMBER DESCRIPTION 026-01X2782 BACK PAD MOUNT 022-01PD2042-A UPHOLSTERY PAD W/ACX BACKING 013-0302008 5/16" SAE FLAT WASHER (WZ) 011-0007069 5/16"-18UNC X 2.50" HHB (WZ) HF4165 ASSEMBLY PAGE 17...
- Page 19 OWNERS MANUAL NOTE: - WRENCH TIGHTEN BOLTS. *IMPORTANT* NOW THAT THE HF4165 IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. PAGE 18 HF4165 ASSEMBLY...
-
Page 20: Pre-Assembly
3/8"-16UNC X 2.75" HHB (WZ) 012-0104008 3/8"-16 UNC THIN NYLOCK NUT (WZ) 026-01X2536 FOOT PEG ASSEMBLY 016-0201017 END CAP 2.00" X .06" WALL (BLACK) 019-0002002 CLOSED END GRIP 2.00" 030-0303015 ROLL PIN .25" X .75" LONG HF4165 ASSEMBLY PAGE 19... - Page 21 OWNERS MANUAL HF4165 ASSEMBLY PAGE 20...
-
Page 22: Decal Placement
DECAL SERIAL # 1.63" X 2.63" 021-0003229 DECAL 1000 LB. WEIGHT RATING 1.63" X 1.63" 021-0003332 DECAL CLEAR VELVET LEXAN 2.00" X 2.00" NOTE: ALL DECALS ARE CENTERED UNLESS OTHERWISE STATED. SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 21 HF4165 ASSEMBLY... -
Page 23: Decal Reference
OWNERS MANUAL DECAL REFERENCE 1000 LBS. MAXIMUM WEIGHT RATING 021-0003229 SERIAL # DECAL 021-0003113 021-0003135 021-0003008 021-0003230 PAGE 22 HF4165 ASSEMBLY... -
Page 24: Part List
