Summary of Contents for Body Solid VDRA30

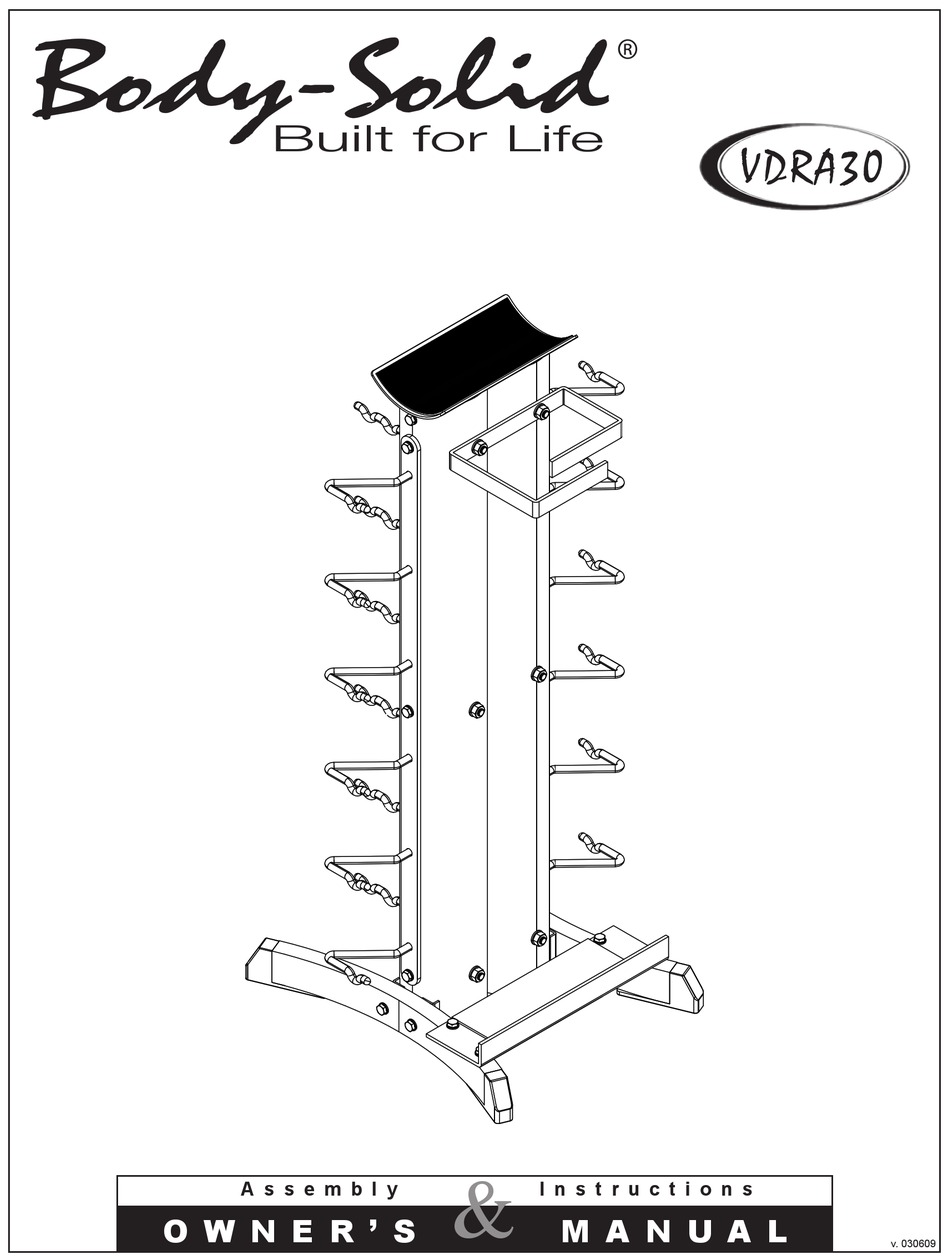

- Page 1 ® VDRA30 ® ® & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. 030609...
- Page 2 If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. m Assemble and operate the VDRA30 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access.
- Page 3 B e f o r e Y o u B e g i n Thank you for purchasing the VDRA30. This gym is part of the Body-Solid line of quality strength training machines, which let you target specific muscle groups to achieve better muscle tone and overall body conditioning.
- Page 4 CAUTION: To set up this unit, you will need assistance. Do not attempt assembly by yourself. You must review and follow the instructions in this Owner’s Manual. If you do not assemble and use the VDRA30 according to these guidelines, you could void the Body-Solid warranty.
- Page 5 A s s e m b l y I n s t r u c t i o n s Assembly of the VDRA30 takes professional installers about 1 hour to complete. If this is the first time you have assembled this type of equipment, plan on significantly more time.
- Page 6 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step unless otherwise noted. Insert Foot Caps (8) into Legs (B). (pre-installed) Connect both Legs (B) to Main Body (A) using: Four 11 (M8x40 hex head bolt) Four 12 (M8 washer) NOTE:...
- Page 7 S T E P Above shows Step 1 assembled and completed.
- Page 8 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step unless otherwise noted. Connect Bar Shelf (C) to Legs (B) using: Four 10 (M8x20 hex head bolt) Four 12 (M8 washer) Connect both Bent Hangers (D) to Main Body (A) using: Six 10 (M8x20 hex head bolt)
- Page 9 S T E P Above shows Step 2 assembled and completed.
- Page 10 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step unless otherwise noted. Connect both Straight Hangers (E) to Main Body (A) and Bar Catch (F) by using: Two 13 (M10x140 hex head bolt) Four 16 (M10x135 hex head bolt)
- Page 11 S T E P Above shows Step 3 assembled and completed.
- Page 12 H a r d w a r e L i s t Part# Description Main Body Bar Shelf Bent Hangers Straight Hangers Bar Catch Foot Cap Rubber Pad 240mm x 130mm Hex Head Bolt M8x20 Hex Head Bolt M8x40 Washer Hex Head Bolt M10x140 Nylon Nut...
- Page 13 H a r d w a r e ( T o S c a l e )
- Page 14 E x P L O D E D V I E W D I A g R A M V D R A 3 0...
- Page 16 ® 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
