- Page 1 ® SCB-26 ® ® & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. 112409...
-
Page 2: Personal Safety During Assembly
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. - Page 3 B e f o r e Y o u B e g i n Thank you for purchasing the SCB26. This gym is part of the Body-Solid line of quality strength training machines, which let you target specific muscle groups to achieve better muscle tone and overall body conditioning.
-
Page 4: Required Tools
P r e p a r a t i o n s CAUTION: To set up this unit, you will need assistance. Do not attempt assembly by yourself. You must review and follow the instructions in this Owner’s Manual. If you do not assemble and use the SCB26 according to these guidelines, you could void the Body-Solid warranty. -
Page 5: Assembly Tips

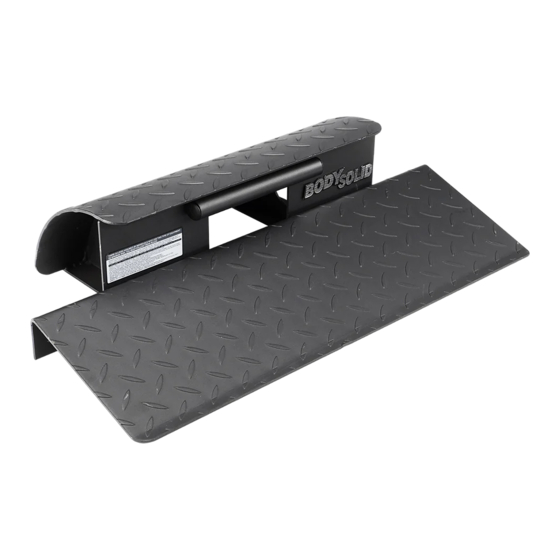

A s s e m b l y I n s t r u c t i o n s Assembly of the SCB26 takes professional installers about 1/2 hour to complete. If this is the first time you have assembled this type of equipment, plan on significantly more time. - Page 6 S T E P Be careful to assemble all components in the sequence they are presented. Place the Squat/Calf block in the desired location of use. Ensure that Calf Block (A) and Squat Wedge (B) are both level on the floor. Secure Calf Block (A) to Squat Wedge (B) using: Two M10x25 hex head bolt Four M10 flat washer...
- Page 7 S T E P Above shows Step 1 assembled and completed.
- Page 8 H a r d w a r e L i s t Part# Description CALF BLOCK SQUAT WEDGE HEX HEAD BOLT M10x25 FLAT WASHER NYLON LOCK NUT Part numbers are required when ordering parts.
- Page 9 H a r d w a r e ( T o S c a l e ) 45 9...
- Page 10 ® 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 www.bodysolid.com © Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
