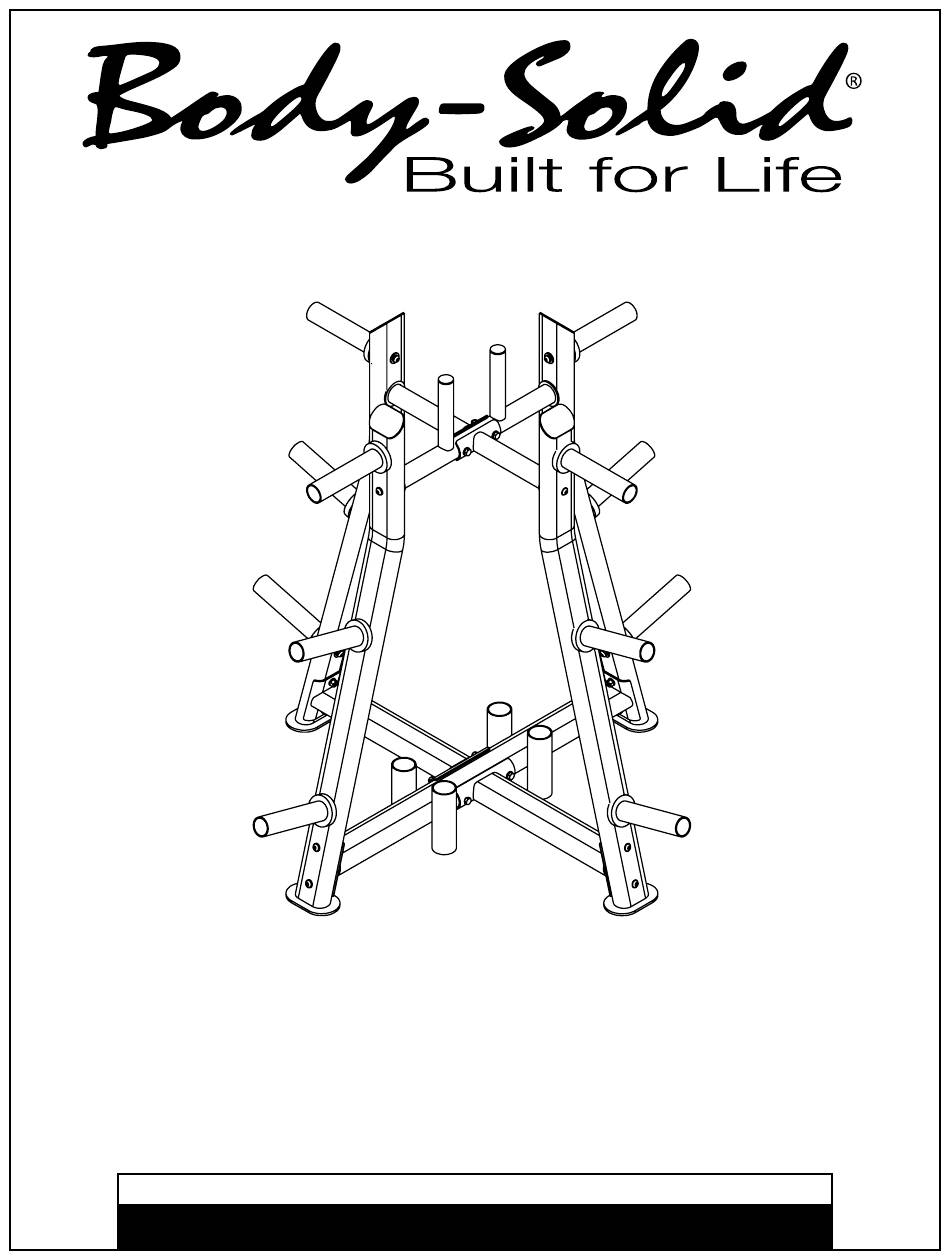

- Page 1 SWT1000 & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. SWT1000-090815...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE LIST........... PAGE 6 • PARTS LIST............ PAGE 7 • HARDWARE ILLUSTRATION......PAGE 8 • ASSEMBLY INSTRUCTIONS......PAGE 10 • EXPLODED VIEW......... -
Page 4: Safety Instructions
Before beginning assembly, please take the time that we can assist you better. to read the instructions thoroughly. 1. Model Number m Read each step in the assembly instructions and 2. Place of Purchase follow the steps in sequence. Do not skip ahead. 3. Serial Number (S/N) If you skip ahead, you may learn later that you 4. Part # and Description have to disassemble components and that you may have damaged the equipment. m Assemble and operate the SWT1000 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access. -
Page 5: Preparation
P r e p a r a t i o n Thank you for purchasing the SWT1000. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the SWT1000 include but are not limited to: step. While you may be able to assemble the SWT1000 using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text. -
Page 6: Hardware List
S W T 1 0 0 0 H a r d w a r e L i s t Part# Size Description Quantity M10x125mm HEX HEAD BOLT 2 PCS. M10x75mm HEX HEAD BOLT 2 PCS. M10x70mm BUTTON HEAD CAP SCREW 8 PCS. -
Page 7: Parts List
S W T 1 0 0 0 P a r t s L i s t Part# Description Quantity UPRIGHT 4 PCS. LOWER CENTER CROSS FRAME 1 PCS. LOWER SIDE CROSS FRAME 2 PCS. UPPER CENTER CROSS FRAME 1 PCS. UPPER SIDE CROSS FRAME 2 PCS. -
Page 8: Hardware Illustration
S W T 1 0 0 0 H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M10x125mm QTY. 2... - Page 9 S W T 1 0 0 0 H a r d w a r e I l l u s t r a t i o n Part #6 LARGE FLAT WASHER ID11xOD28mm QTY. 24...
-
Page 10: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. - Page 11 S T E P Above shows Step 1 assembled and completed.
- Page 12 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 2B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 13 S T E P Above shows Step 2 assembled and completed.
-
Page 14: Exploded View
S W T 1 0 0 0 E x p l o d e d V i e w... - Page 15 N o t e s...
-
Page 16: Contact Page
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 010185-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, Il 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
