Summary of Contents for Body Solid Pro Club SFID425

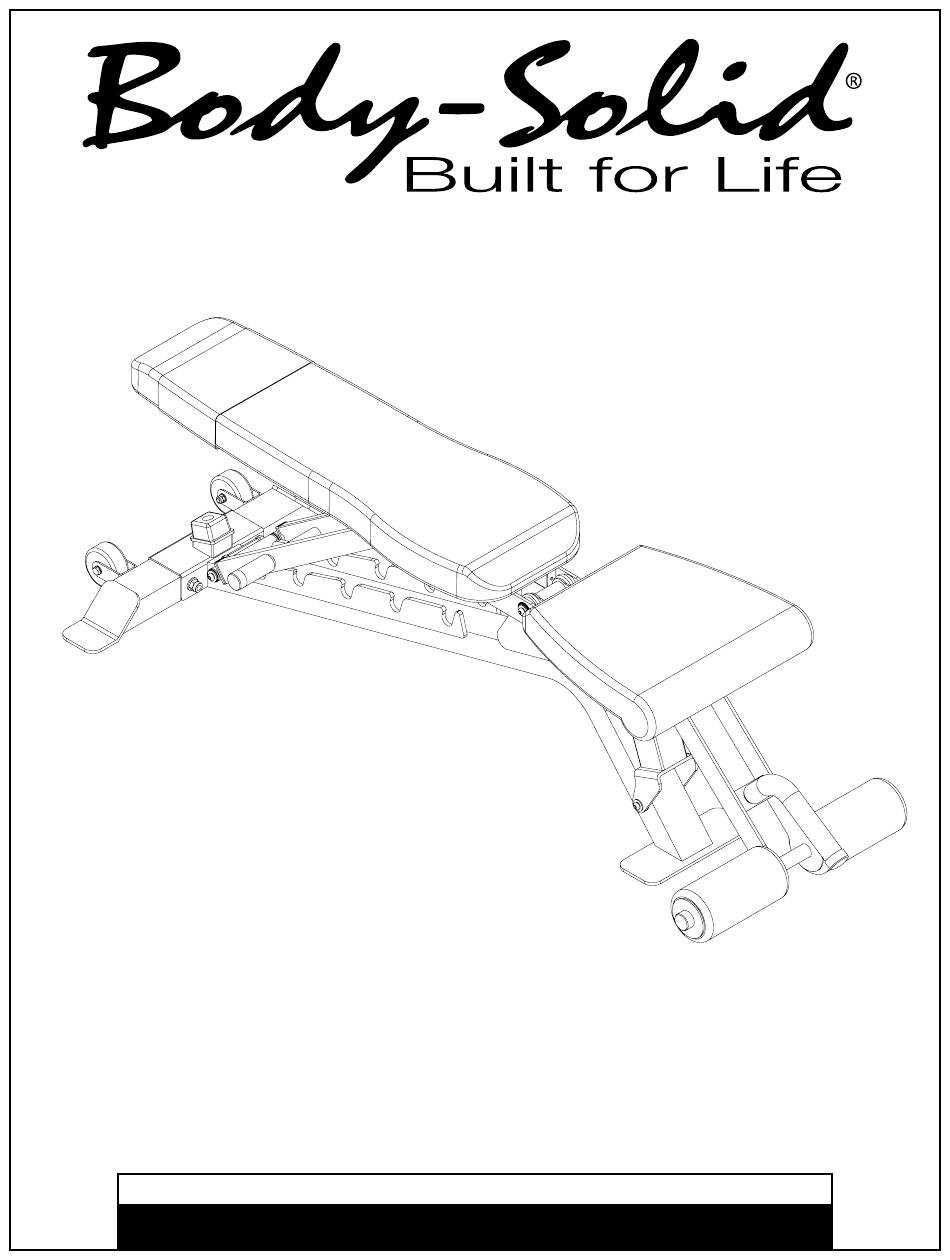

- Page 1 SFID425 & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. SFID425-060817...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Be sure that all users carefully read and understand all warning, safety and maintenance labels on the machine before each use.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE LIST........... PAGE 6 • PARTS LIST............ PAGE 7 • HARDWARE ILLUSTRATION......PAGE 9 • ASSEMBLY INSTRUCTIONS......PAGE 12 • EXPLODED VIEW......... -
Page 4: Safety Instructions
I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. -
Page 5: Preparation
P r e p a r a t i o n Thank you for purchasing the SFID425. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the SFID425 include but are not limited to: step. While you may be able to assemble the SFID425 using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text. m Standard Allen Key Set m Standard Wrench Set Some pieces may have extra holes that you will not use. -
Page 6: Hardware List
S F I D 4 2 5 H a r d w a r e L i s t Part# Size Description Quantity M12X105mm HEX HEAD BOLT 2 PCS. M10X20mm BUTTON HEAD CAP SCREW 1 PCS. M8X60mm HEX HEAD BOLT 4 PCS. -
Page 7: Parts List
S F I D 4 2 5 P a r t s L i s t Part# Description Quantity BASE FRAME 1 PCS. BACK REST ADJUSTMENT FRAME 1 PCS. REAR STABILIZER 1 PCS. SEAT FRAME 1 PCS. BACK FRAME 1 PCS. SEAT ADJUSTMENT FRAME 1 PCS. - Page 8 S F I D 4 2 5 P a r t s L i s t Part# Description Quantity FRONT HANDLE FOAM GRIP 1 PCS. ø39mm END CAP, 1 PCS. ø28x ø12.5x8mm SPACER, 2 PCS. END CAP, 40x20mm 2 PCS. ø12.5x95mm SHAFT, 1 PCS. ø12x117.5mm SHAFT, 1PCS.
-
Page 9: Hardware Illustration
Part #1 HEX HEAD BOLT M12x105mm QTY. 2 Part #2 BUTTON HEAD CAP SCREW M10x20mm QTY. 1 Part #3 HEX HEAD BOLT M8x60mm QTY. 4 ... - Page 10 S F I D 4 2 5 H a r d w a r e I l l u s t r a t i o n Part #6 BUTTON HEAD CAP SCREW M8x20mm QTY. 4...
- Page 11 S F I D 4 2 5 H a r d w a r e I l l u s t r a t i o n PART #40 FLANGE NUT M16 PART #40...
-
Page 12: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. - Page 13 S T E P Above shows Step 1 assembled and completed.
- Page 14 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 2C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 15 S T E P Above shows Step 2 assembled and completed.
-
Page 16: Exploded View
S F I D 4 2 5 E x p l o d e d V i e w... - Page 17 N o t e s...
-
Page 18: Contact Page
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 012622-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, Il 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
