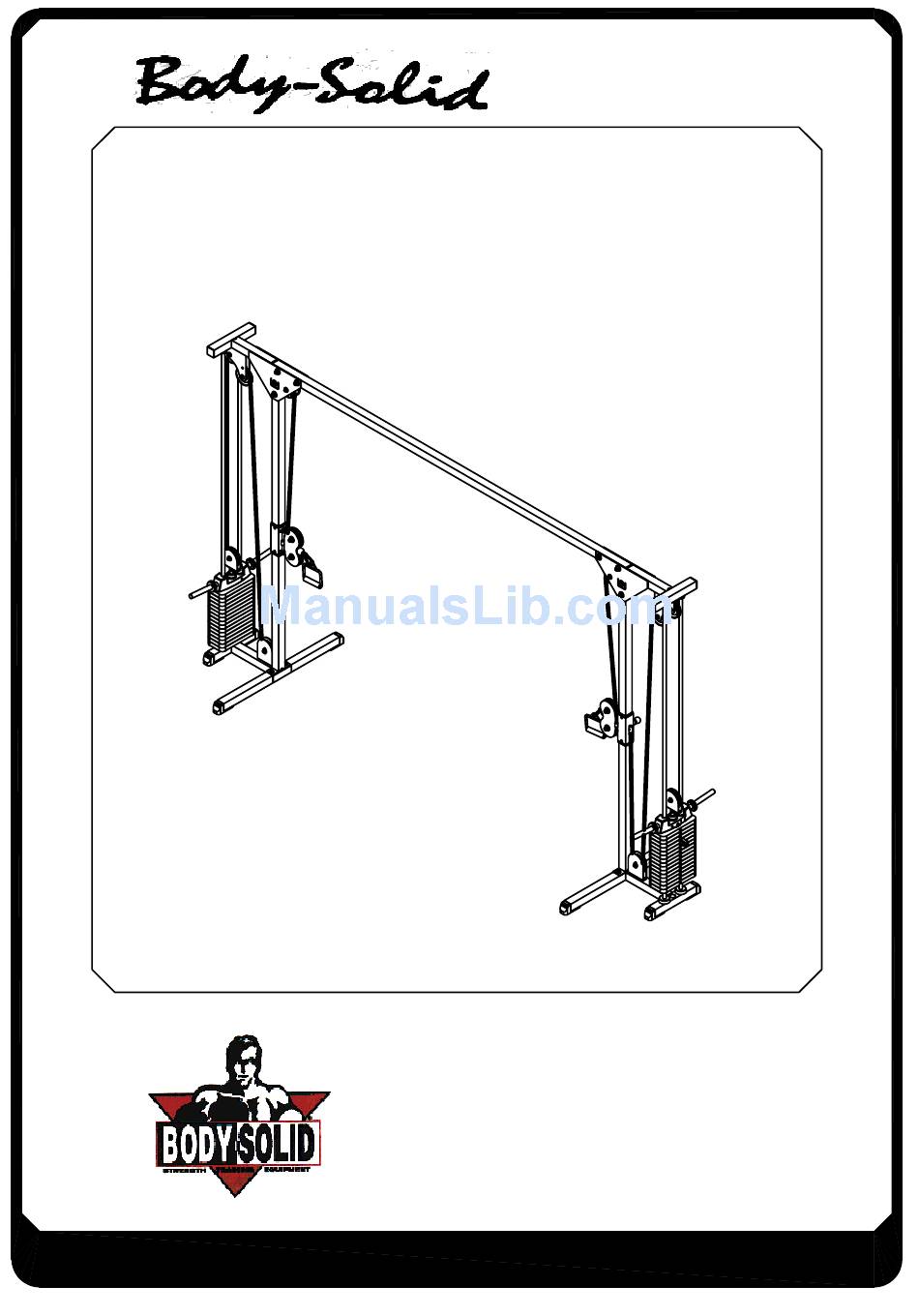

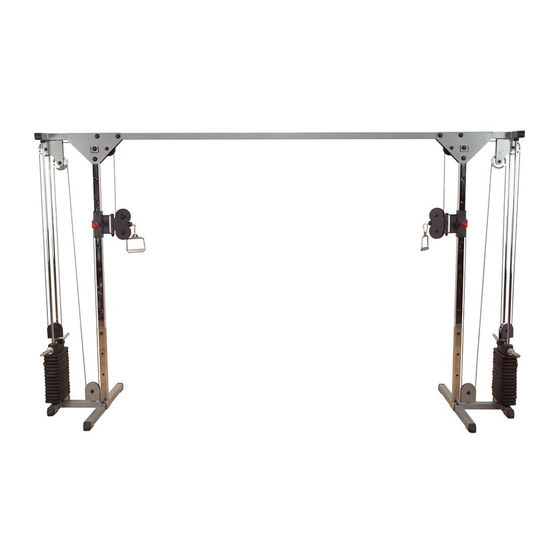

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL CCO-150.1...
-
Page 2: Hardware Illustration
ASSEMBLY INSTRUCTIONS CCO-150 HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"X2 1/4"L PARTIAL THREAD QTY.4 (A2)HEX BOLT 1/2"X3 1/4"L PARTIAL THREAD QTY.8 (A3)HEX BOLT 1/2"X6 1/2"L PARTIAL THREAD QTY.2 (A4)HEX BOLT 3/8"X1 3/4"L PARTIAL THREAD QTY.8 (A5)HEX BOLT 3/8"X3"L PARTIAL THREAD QTY.2 (A6)ROUND HEAD SQUARE NECK BOLT 3/8"X2 3/4"L PARTIAL THREAD QTY.4 (A7)ROUND BOLT 3/8"X1 1/2"L PARTIAL THREAD QTY.2 CCO150.1-112004 Page... - Page 3 ASSEMBLY INSTRUCTIONS CCO-150 HARDWARE ILLUSTRATION (A8)10LB PIN(8250-019) QTY.1 CCO150.1-112004 Page...
- Page 4 ASSEMBLY INSTRUCTIONS CCO-150 HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT 1/2" QTY.14 (C4)3/8"(I.D.)FLAT WASHER 27 QTY.24 (B2)LOCK NUT 1/2" QTY.2 (C5)3/8" SPRING WASHER QTY.2 (B3)NYLON LOCK NUT 3/8" QTY.14 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.4 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.24 (C3)1/2" SPRING WASHER QTY.2 CCO150.1-112004 Page...
- Page 5 ASSEMBLY INSTRUCTIONS CCO-150 HARDWARE ILLUSTRATION D1. 2"X2" END CAP(9211-006)-----------------------------------------------[4PCS] D2. 2"X2"(2.5t)FOOT CAP(9211-025)---------------------------------------[8PCS] D3. 60x50 NYLON BUSHING(9211-033)-----------------------------------[4PCS] 3/4" SHAFT COLLAR(9211-046)--------------------------------------[4PCS] 2 1/2" RUBBER DOUNT(9310-010)---------------------------------[4PCS] 2 1/2" RUBBER DOUNT(9310-011) --------------------------------[4PCS] D7. 130mm PULL UTENSIL(8290-006)------------------------------------[2PCS] 8mm SPRING SNAP LINK(8810-001)------------------------------[2PCS] 330mm STEEL CABLE--------------------------------------------------[2PCS] D10. EIGHT SELECTOR BAR(8210-052)-------------------------------[2PCS] D11.
-
Page 6: Cco150.1-112004 Page
ASSEMBLY INSTRUCTIONS CCO-150 HARDWARE ILLUSTRATION D14. TOP PLATE(8400-009)-----------------------------------------------[2PCS] CCO150.1-112004 Page... - Page 7 CCO-150 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[1PCS] C1[1PCS] B1[1PCS] G1[2PCS] D[2PCS] E[2PCS] F[1PCS] H[1PCS] CCO150.1-112004 Page...
- Page 8 CCO-150 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET I[1PCS] J[4PCS] CCO150.1-112004 Page...
-
Page 9: Assembly Step
CCO-150 ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 1 B1x2 C2x2 D12x2 C2x2 A1x2 B1x2 C2x2 D12x2 C2x2 A1x2 CCO150.1-112004 Page... -
Page 10: Cco150
ASSEMBLY INSTRUCTIONS CCO-150 ASSEMBLY STEP 2 B3x2 C4x2 C4x2 A4x2 CCO150.1-112004 Page... - Page 11 CCO-150 ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 3 B3x2 C4x2 D2x2 B3x2 A6x2 C4x2 D2x2 A6x2 CCO150.1-112004 Page...
-
Page 12: Setp
ASSEMBLY INSTRUCTIONS CCO-150 ASSEMBLY STEP 4 SETP 3 SETP 3 *:Before the assembling of the weight stacks: Finish (step 3) and adjust the distance between the two bases to 2640mm(104in) CCO150.1-112004 Page... - Page 13 ASSEMBLY INSTRUCTIONS CCO-150 ASSEMBLY STEP 5 STEP 2 B1x2 C2x2 STEP 1 C2x2 A2x2 STEP 3 DETECT A D6x2 D5x2 CCO150.1-112004 Page...
- Page 14 CCO-150 ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 6 B1x2 C2x2 C2x2 A2x2 B1x2 C2x2 STEP-5 A2x2 C2x2 STEP-5 weight stack weight stack CCO150.1-112004 Page...
- Page 15 CCO-150 ASSEMBLY INSTRUCTIONS Wire Rope illustration NEED TO LOOSEH BOTH ALLEN HEAD BOLT IN ORDER TO REMOVE SHAFT CCO150.1-112004 Page...
