SAB500
&
A s s e m b l y
I n s t r u c t i o n s
O W N E R ' S
M A N U A L
v. SAB500-042815

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAB500B and is the answer not in the manual?

Questions and answers

Summary of Contents for Body Solid SAB500B

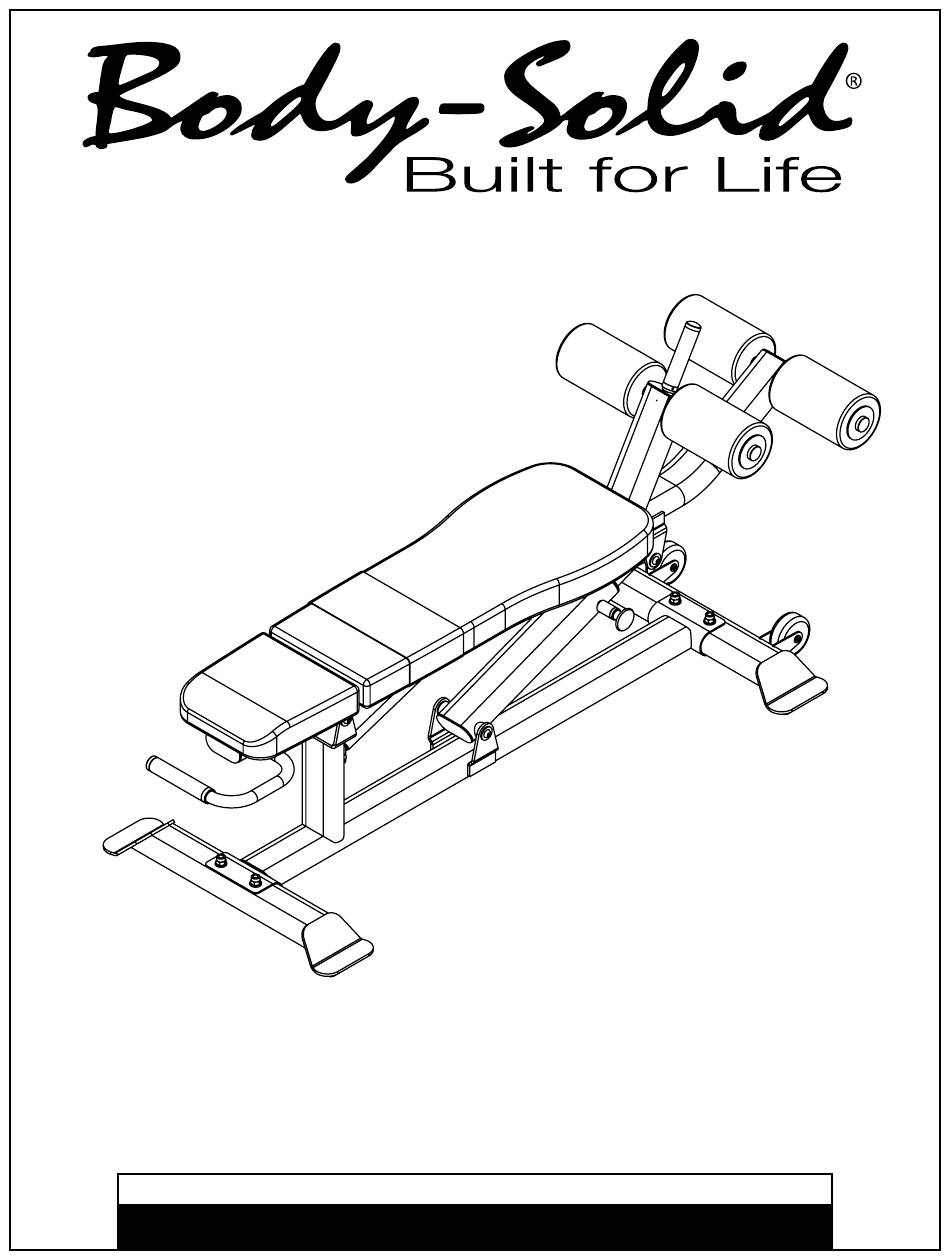

  • Page 1 SAB500 & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. SAB500-042815...
  • Page 2 before each use. Failure to do so may result in serious injury. It is imperative that you retain this Owner’s Manual and be sure all warning labels are legible and intact. Replacement Owner’s Manuals and labels are available from your local W a r n i n g , S a f e t y &...
  • Page 3: Table Of Contents

    T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE LIST........... PAGE 6 • PARTS LIST............ PAGE 7 • HARDWARE ILLUSTRATION......PAGE 8 • ASSEMBLY INSTRUCTIONS......PAGE 10 • EXPLODED VIEW.........
  • Page 4: Safety Instructions

    I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
  • Page 5: Preparation

    P r e p a r a t i o n Thank you for purchasing the SAB500. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the SAB500 include but are not limited to: step. While you may be able to assemble the SAB500 using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text. m Standard Allen Key Set m Standard Wrench Set Some pieces may have extra holes that you will not use.
  • Page 6: Hardware List

    S A B 5 0 0 H a r d w a r e L i s t Part# Size Description Quantity M12X75mm CARRIAGE BOLT 4 PCS. M10X20mm BUTTON HEAD CAP SCREW 6 PCS. M8X60mm HEX HEAD BOLT 2 PCS. M8X45mm HEX HEAD BOLT 2 PCS.
  • Page 7: Parts List

    S A B 5 0 0 P a r t s L i s t Part# Description Quantity BASE FRAME 1 PCS. FRONT STABILIZER 1 PCS. REAR STABILIZER 1 PCS. PIVOT ADJUSTMENT FRAME 1 PCS. ANGLE ADJUSTMENT FRAME 1 PCS. TOP FRAME 1 PCS.
  • Page 8: Hardware Illustration

    S A B 5 0 0 H a r d w a r e I l l u s t r a t i o n Part #1 QTY. 4 CARRIAGE BOLT M12x75mm Part #2 BUTTON HEAD CAP SCREW M10x20mm QTY. 6 Part #3 HEX HEAD BOLT M8x60mm QTY. 2 Part #4 HEX HEAD BOLT M8x45mm QTY. 2 Part #5 BUTTON HEAD CAP SCREW M8x25mm QTY. 8 Part #6...
  • Page 9                             S A B 5 0 0 H a r d w a r e I l l u s t r a t i o n PART #51 FLAT WASHER 11X 20X2 PART #52...
  • Page 10: Assembly Instructions

    S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 11 S T E P Above shows Step 1 assembled and completed.
  • Page 12 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 2D. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 13 S T E P Above shows Step 2 assembled and completed.
  • Page 14 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 3B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 15 S T E P Above shows Step 3 assembled and completed.
  • Page 16 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 17 S T E P Above shows Step 4 assembled and completed.
  • Page 18: Exploded View

    S A B 5 0 0 E x p l o d e d V i e w...
  • Page 19 N o t e s...
  • Page 20: Contact Page

    PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW S/N # 010345-��-��-����-���� 1900 S. Des Plaines Ave. Forest Park, Il 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs.
