Instruction manual

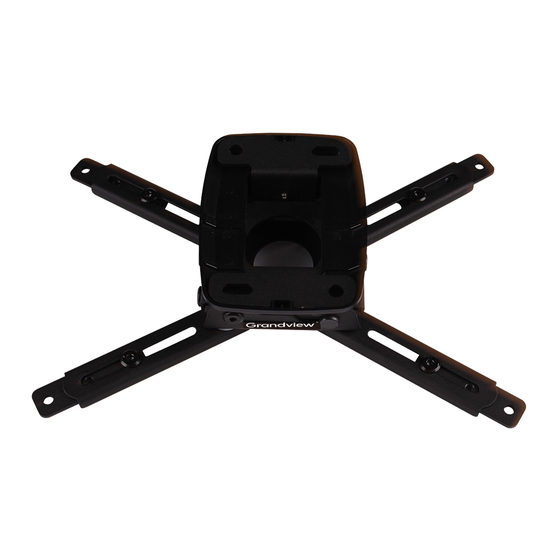

Projector Ceiling Mount
Model: GPCM - J100
Cautious
For safety, the minimum weight of ceiling must be 40KG;
Warning
The maximum loads of installation bracket is 15Kg.
Please do not incline the projector extremely.
Attention
Please do
Please do not take apart the accessories of projector ceiling mount.
not take apart
Advertisement
Table of Contents
Related Manuals for Grandview GPCM-J Series
Summary of Contents for Grandview GPCM-J Series
- Page 1 Instruction manual Projector Ceiling Mount Model: GPCM - J100 Cautious For safety, the minimum weight of ceiling must be 40KG; Warning The maximum loads of installation bracket is 15Kg. Please do not incline the projector extremely. Attention Please do Please do not take apart the accessories of projector ceiling mount. not take apart...
- Page 2 Scope Installation Projector installation 1、 Adjusted the installation arms to match with the Maximum scope for installation: 370mm diameter projector mounting holes.Projecter centered with Minimum scope for installation: 140mm diameter Shortest height of the mount is 74mm the angle adjuster. 2、Angle adjuster align with the projection direction.
