Grandview GPCN-E200 Instruction Manual

Details of installation
Height Adjustment
Adjust the main bar (2-1) to required height after taking apart the front
ornament board (2-3) and loosening the front positioning screw. And
then, re-install the front positioning screw and the front ornament
board (2-3), figure 11. (The height of GPCN-E200 can not be
adjusted )

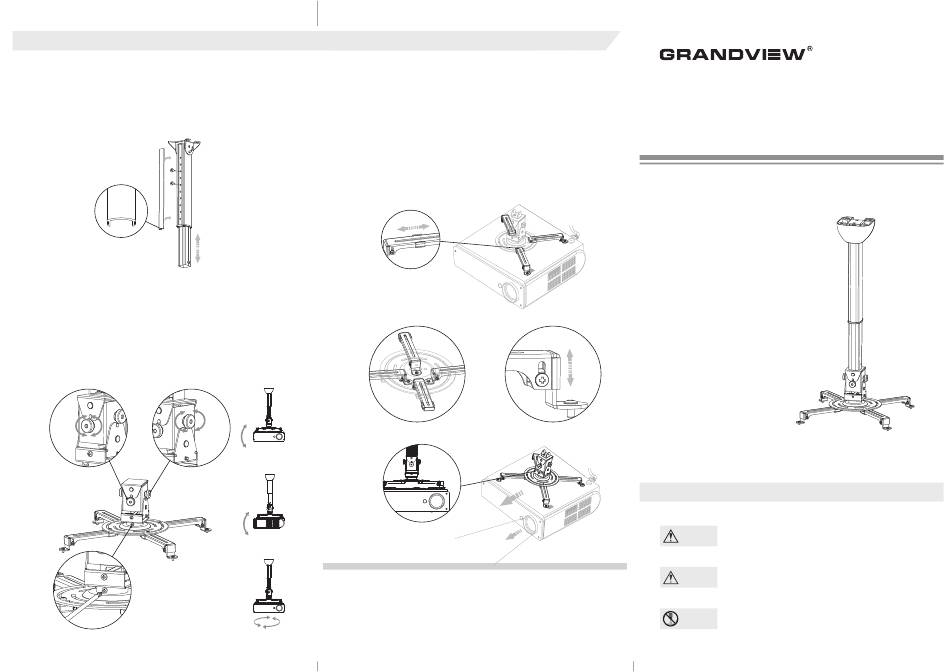

figure 11
Angle Adjustment
1.Vertical adjustment: rotate the adjusting button (3-3) for vertical
angle, figure 12
2.Horizontal adjustment: rotate the adjusting button (3-2) for
horizontal angle, figure 13
3.Horizontal rotation adjustment: loosen the rotation adjusting screw
(3-4), the installation base can be rotated by 360°;fasten the rotation
adjusting screw (3-4) after deciding the angle,figure 14
figure 12 figure 13
figure 14
Installation of main bar
1.Firstly, please confirm how many installation holes the projector has?
3 or 4
2.If there are 3 holes, the installation arms (4-3) need to be taken apart
from Installation bracket firstly. Connect 3 installation arms(4-3) to the
projector, and then connect the installation arms (4-3) to the installation
base (4-6) However,the installation base needs to be the center of
projector. Figure 15.
3.Connect the installation arms to the projector conversely if the
distance of installation holes is less than 120mm. Connect the
installation arms (4-3) to the installation base (4-6) via sliding
installation button (4-3) as figure 16
4.Rotate the adjustable screw (4-4) for adjusting the height of instllation
arms (4-3) if the installation holes are not at the same level as figure 17
5.The front or back of adjuster must be parallel to the surface of
projector as figure 18
figure 16
The nagle of
horizontal tilt :±8°
The front or back of
adjuster must be
The angle of
parallel to the surface
:±15°
vertical tilt
of projector
Grandview Crystal Screen
Canada Ltd.
#11- 3751 North Fraser Way,
Marine Way Business Centre,
Burnaby, BC, Canada V5J 5G4
Tel: 1-604-412-9777 Fax: 1-604-412-9796
Rotation:360°
Website: www.grandviewscreen.ca
figure 15
Scope of
adjustment: 10mm
figure 17
figure 18
Guangzhou Grandview Crystal
Screen Co., Ltd.
No.43,Guomao Road South, Hualong Town,
Panyu District, Guangzhou City, China
Tel: +8620-8489-9499 Fax: +8620-8480-3343
Website: www.grandviewscreen.com
www.grandviewscreen.com.cn
GRANDVIEW REPRODUCING GENUINE COLORS
Instruction Manual

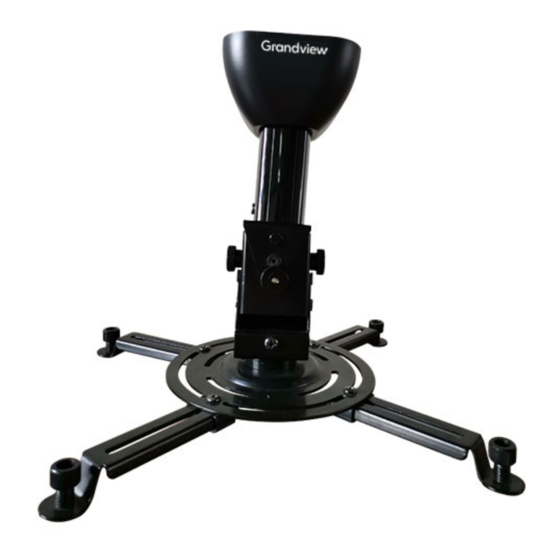

Projector Ceiling Mount
Applicable Model
GPCN-E200
GPCN-E3540
GPCN-E4560
Please read before using
Thank you for purchasing our
products. Please read the
instruction manual carefully
in order to ensure this
projector lift is suitable for
your projection equipment.
Cautious
For safety, the minimum weight of ceiling must be 10KG
Warnings
Please do not incline the projector extremely.
Caution
Please do not take apart the accessories of projector
Do not
ceiling mount.
take apart
