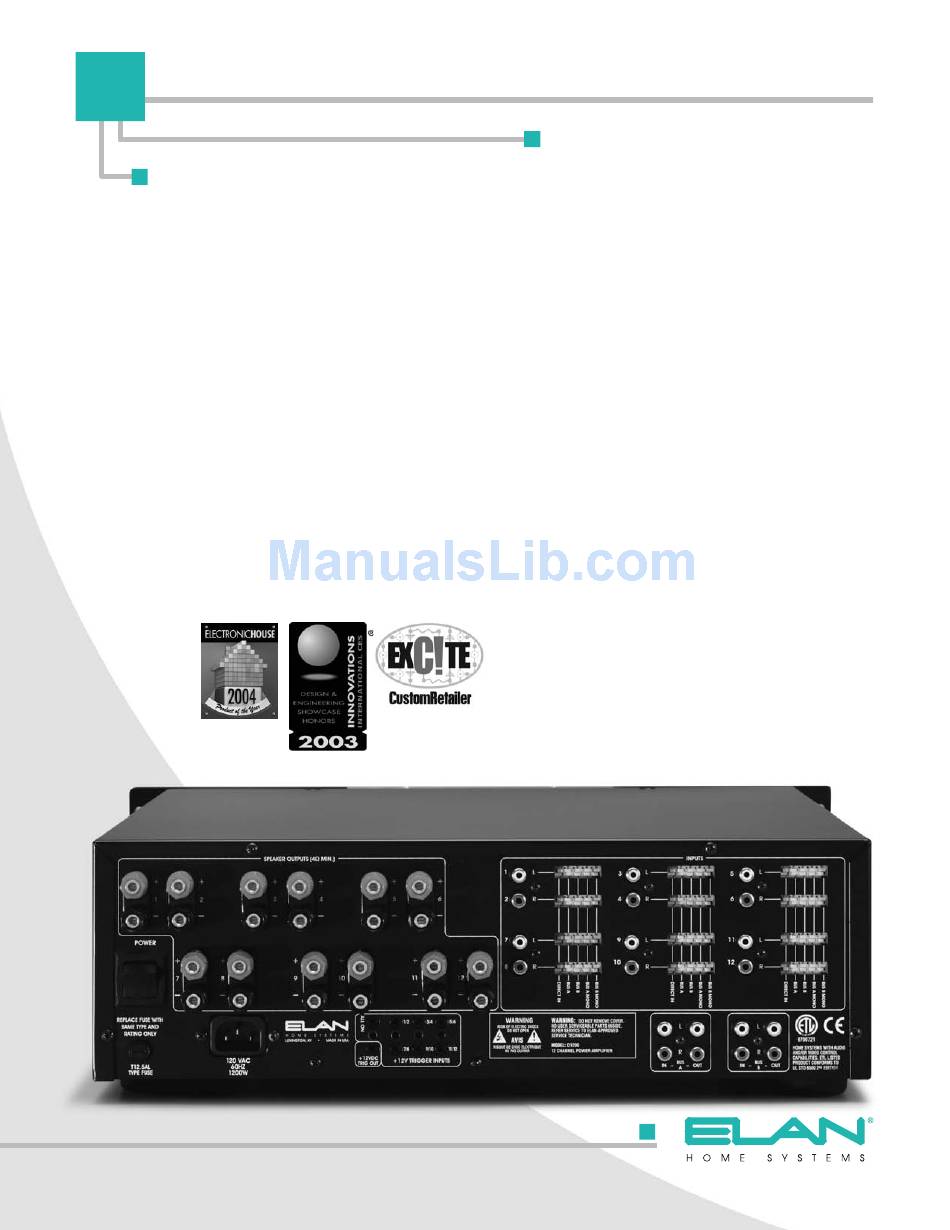

Elan D1200 Specifications page 2

■
Class T Design Ensures Clean, Cool, and Efficient Operation
■
12 Channels x 100 Watts RMS at 4 Ohms, Lots of Power
■
Universal Stereo Bus Allows Extreme Flexibility in Setup
■
ACE ® Automatic Clip Elimination Circuitry Eliminates Distortion
Without Audio Degradation
■
Individual Remote Trigger Inputs/Outputs to Turn On or Mute
Individual Channels or Additional Amplifiers
■
Digital Volume Level Setup and Lockout Features Allow Accurate,
Repeatable Setup. Once Configured, the Front Panel can be Locked
to Avoid Prying Hands From Changing Carefully Set Volume
Levels
■
Advanced Protection Circuitry Completely Disconnects any
Speaker Output That is in a Faulted Condition. The Front Panel
Will Indicate That a Fault is Present
■
Available in Both Shelf and Rack Mount (D1201) Models
■
ETL ® and C-tick Listed, CE Approved
■
Another ELAN Award-winning Product
Two-Year Limited Warranty
www.elanhomesystems.com
© ELAN Home Systems • 2006 • All rights reserved • ELAN Home Systems is a trademark of ELAN Home Systems, LLC • P/N:
Features & Specifications
General
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-channel Audio Amplifier
Power Supply . . . . . . . . . . . . . . . . .Ultra-high Efficiency Toroidal Transformer
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120 Volts AC
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1500 Watts
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 lbs/24 kg
Dimensions D1200 . . . . . . . . . . . . . . . . . . . . . .(in.) 5-1/4 H x 17 W x 15 D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(cm) 13.34 H x 43.18 W x 38.1 D
D1201 . . . . . . . . . . . . . . . . . . . . . .(in.) 5-1/4 H x 19 W x 15 D
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(cm) 13.34 H x 48.26 W x 38.1 D
Connectors
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gold RCA Phono Jacks
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Gold 5-way Binding Posts
Triggers
Remote Trigger Inputs . . . . . . . . . . . . . . . . . . . . . . . .6 Individual Trigger Inputs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 to 24 Volts AC/DC
Trigger Loop Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+12 Volts DC
Audio Section
Power Rating (RMS) . . . . . . . . . . . . . . . . . . . . . . . . . .100 WPC @ 4 Ohms
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 WPC @ 8 Ohms
Frequency response . . . . . . . . . . . . . . . . .20Hz to 20kHz, -3dB into 8 Ohms
Full Power Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Hz to 50kHz
Signal to Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>102dB (A weighted)
Channel separation (@1kHz) . . . . . . .> -70dB channel to channel @ 1kHz
Total harmonic distortion (@1kHz) . . . . . . . . . . . . . . . . . . . . . . . . .<.04%
Intermodulation distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .<0.1%
Voltage Gain (AV) . . . . . . . . . . . . . . . . . . . .Continuously Variable from 0-32
Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>20V/microsecond
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49K Ohms
Input Sensitivity . . . . . . . . . . . . . . . . . . . . . . . .0.635Vrms (60W @ 8 Ohms)
ELAN Home Systems reserves the right to change hardware and specifications without notice.
Life Just Got Better
CSD12REVB
®
