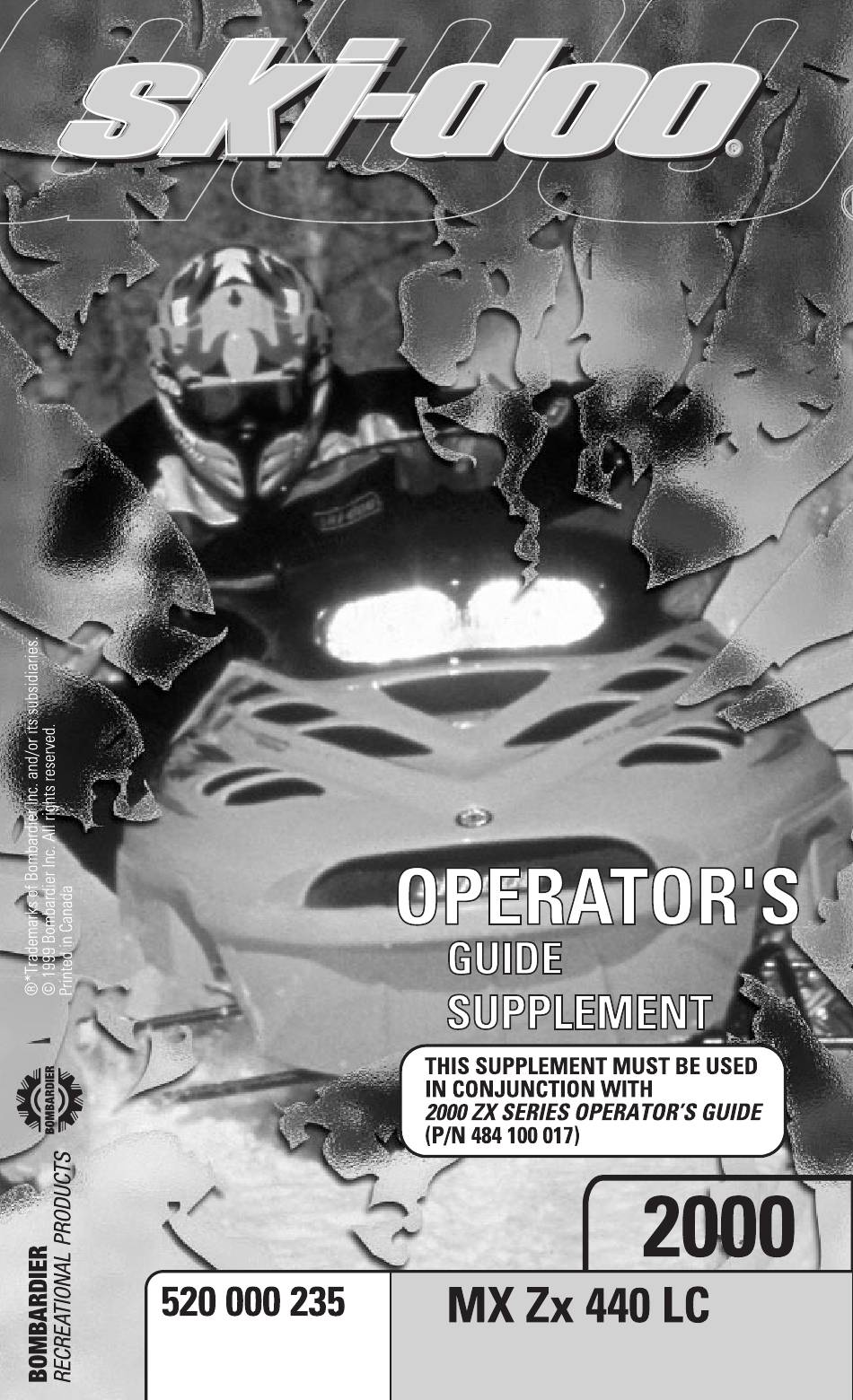

Ski-Doo 2000 MX Zx 440 LC Operator's Manual

Ski-Doo 2000 MX Zx 440 LC Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2000 MX Zx 440 LC and is the answer not in the manual?

Questions and answers

Related Manuals for Ski-Doo 2000 MX Zx 440 LC

Summary of Contents for Ski-Doo 2000 MX Zx 440 LC

  • Page 2: Safety Warning

    SAFETY WARNING Disregarding any of the safety precautions and instructions con- tained in this Operator’s Guide Supplement , Safety Handbook or on-product labels could cause injury, including the possibility of death. This Operator’s Guide handbook should remain with the snowmo- bile at all time.
  • Page 3 484 100 017) also applies to your MX Zx 440 LC except for the following. LIMITED WARRANTY VALIDATION The 2000 MX Zx 440 LC is shipped from the factory with high com- pression ratio (CR) combustion chamber inserts installed. To validate limited warranty coverage, low CR combustion chamber inserts must be installed on engine.

  • Page 4: Tether Cut-Out Switch

    7) Tether Cut-Out Switch Attach tether cord to clothing then snap tether cut-out cap over re- ceptacle before starting engine. To stop engine, completely pull cap from safety switch. 28) Primer Button Pull and push button. It is not necessary when engine is warm. To prime, activate button until a pumping resistance is felt.

  • Page 5: Fuel And Oil

    FUEL AND OIL Recommended Fuel Use super unleaded gasoline, available from most service stations or gasohol containing less than 10% of ethanol or methanol. The gaso- line used must have an octane number (R + M)/2 of 91 or higher. NOTE: In most service station pump octane number corresponds to (R + M)/2 octane number.
  • Page 6 OIL/FUEL 33/1 A32I09A METRIC (SI) 1 L of oil + 33 L of fuel = 33/1 IMPERIAL 35 imp. oz of oil + 7.2 imp. gal of fuel = 33/1 1 L of oil + 7.2 imp. gal of fuel = 33/1 UNITED STATES 34 U.S.

  • Page 7: Starting Procedure

    STARTING PROCEDURE • Re-check throttle control lever operation. • Ensure that the emergency cut-out switch is in the ON position. • Ensure the tether cut-out cap is in position and that the cord is attached to your clothing. • To prime, activate button until a pumping resistance is felt. From this point, pump 2 or 3 times to inject fuel in intake manifold.

  • Page 8: Fluid Level

    FLUID LEVEL Coolant Pump Shaft Oil Reservoir Use BOMBARDIER-ROTAX injection oil (P/N 413 802 900) (12 x 1 L). Fill up to mark. Coolant Reservoir Use ethylene-glycol antifreeze for aluminum engines mixed with wa- ter (3 parts of antifreeze for 2 parts of water). Fill up to mark when engine is cold.

  • Page 9: Maintenance

    MAINTENANCE Track Tension and Alignment Loosen lock nut on both adjustment screws before adjusting track tension and/or alignment. Retighten after adjustments are done. A32F0WA LEFT SIDE SHOWN 1. Lock nut on adjustment screw...

  • Page 10: Specifications

    SPECIFICATIONS GENERAL MX Zx 440 LC Engine – Maximum power engine speed ± 50 RPM 8450 Drive belt – Number 414 860 700 – New belt width mm (in) 34.9 (1-3/8) – Wear limit width mm (in) 32.5 (1-1/4) Spark plug –...
