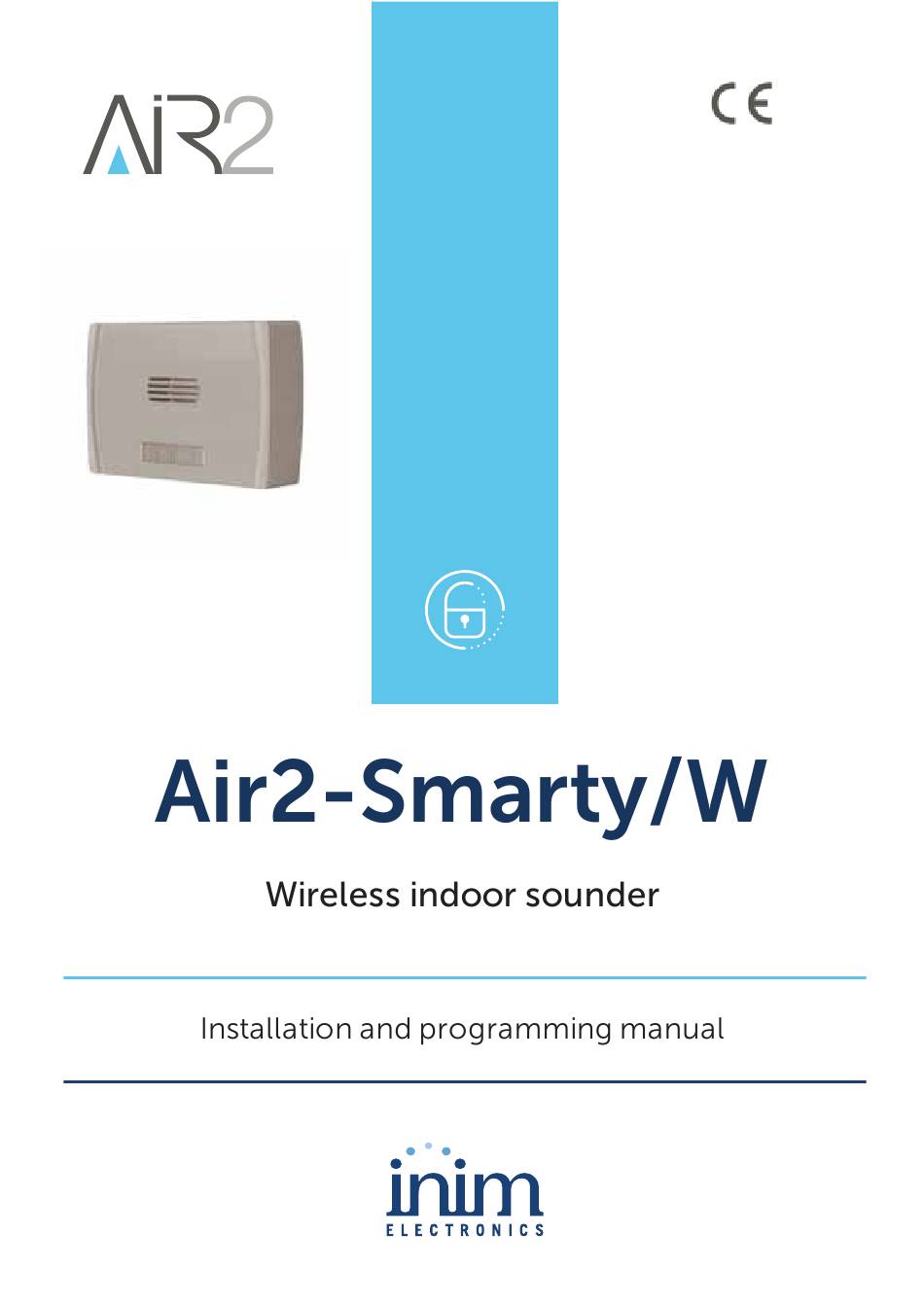

INIM Electronics Air2 Installation And Programming Manual

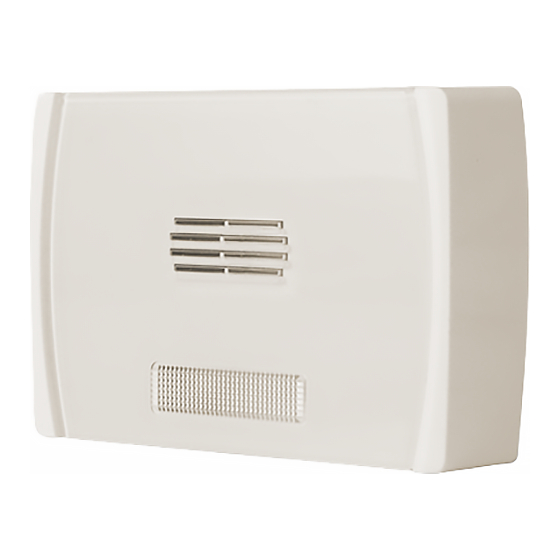

Wireless indoor sounder
Hide thumbs Also See for Air2:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for INIM Electronics Air2

Summary of Contents for INIM Electronics Air2

  • Page 2: Table Of Contents

    Table of contents 1. Air2 system description 2. Description Air2-Smarty/W 2.1 Description of parts 2.2 Technical specifications Air2-Smarty/W 3. Sounder/flasher functions 3.1 Types of signalling 3.2 Sounder/flasher activations 3.3 Faults and tampers 4. Installation of Air2-Smarty/W 4.1 Enrolling a wireless device 4.2 Battery replacement...

  • Page 3: Air2 System Description

    1. Air2 system description All anti-intrusion systems INIM can manage the two-way wireless system Air2 characterized by a MHz carrier frequency 868 MHz. The system components Air2 are: Air2-BS200/50 transceiver module, 50 terminals  Air2-BS200/30 transceiver module, 30 terminals ...

  • Page 4: Description Air2-Smarty/W

    (tone, maximum alarm time, flash rate, signalling activation mode, etc.) and the activ- ation of different signals for different events. The control panel, via wireless system at all times Air2 is capable of monitoring tamper, low battery, fault and battery level signals.

  • Page 5: Description Of Parts

    Cover pin Battery Cable entry Battery connector Mounting screw location ENROLL button Tamper-screw location Piezoelectric horn Tamper microswitch: Dis- lodgement Tamper microswitch: Open cover Red STATUS LED Green PRG LED LED flasher Cover screw Air2-Smarty/W | © 2020 Inim Electronics S.r.l.

  • Page 6: Technical Specifications Air2-Smarty/W

    ≤93% without condensation Relative humidity IP31 Degree of protection Security grade Environmental class 111 x 75 x 30 mm Dimensions (W x H x D) 130 g Weight Maximum 4 Number of sounder/flasher units supported by Air2-BS200 Installation and programming manual- 101...

  • Page 7: Sounder/Flasher Functions

    3.2 Sounder/flasher activations Sounder/Flasher units Air2-Smarty/W can be triggered by signals from the intrusion control panel and also by events generated by the sounder/flasher itself. The occurrence of control-panel events (activations or resets) can activate a sounder/flasher and generate signalling.

  • Page 8: Faults And Tampers

    3. Sounder/flasher functions The “Open casing” event does not trigger audible signals when the connected intrusion control panel is operating in “Programming” mode. Signalling will cease when one of the following conditions occurs: Deactivations from the control panel:  with the “Stop alarms” shortcut ...

  • Page 9: Installation Of Air2-Smarty/W

    7. Close the cover by positioning the pin in its location on the base, then turn it until the catch clicks closed. The STATUS LED will flash with a frequency of one flash per second for 15 seconds. The STATUS LED will stop flashing and the sounder/flasher will be ready to operate. Air2-Smarty/W | © 2020 Inim Electronics S.r.l.

  • Page 10: Enrolling A Wireless Device

    2. Select the device to be enrolled in accordance with its type: an input terminal, for a detector (motion detector, magnetic contact, etc.)  an output terminal, for an output device connected to a terminal of a magnetic contact Air2-  MC300 a keypad ...

  • Page 11: Programming Of Air2-Smarty/W

    5.1 Wireless sounder/flasher parameters 5. Programming of Air2-Smarty/W Programming sounder/flasher units Air2- Smarty/W can only be done through the control panel pro- gramming software. On accessing the software, it is necessary to open a solution, configuration of the real system to be designed.

  • Page 12: Programming The Patterns

    5. Programming of Air2-Smarty/W 5.2 Programming the patterns By selecting the system “Sounder/Flasher” category, it is possible to program the tone types (patterns) for all the sounder/flasher units in the configuration. Burglary  Burglary low volume  Fire  Tamper ...
  • Page 13 Battery Percentage of the sounder/flasher battery charge. charge level This software section starts a monitoring phase on the variation of the signal transmitted by the device and background noise detected over time. Air2-Smarty/W | © 2020 Inim Electronics S.r.l.

  • Page 14: General Information

    6.3 Notes from the Manufacturer The devices Air2 are certified by IMQ-Sistemi di sicurezza (Italian certification body). The information relating to the power-supply batteries required by the devices Air2 are provided in the fol- lowing Technical Specification table. The manufacturer cannot guarantee the declared battery life.

  • Page 15: Documents For The Users

    6.5 Documents for the users 6.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document.
  • Page 16 Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2SMARTYW8E-101-20200921...
