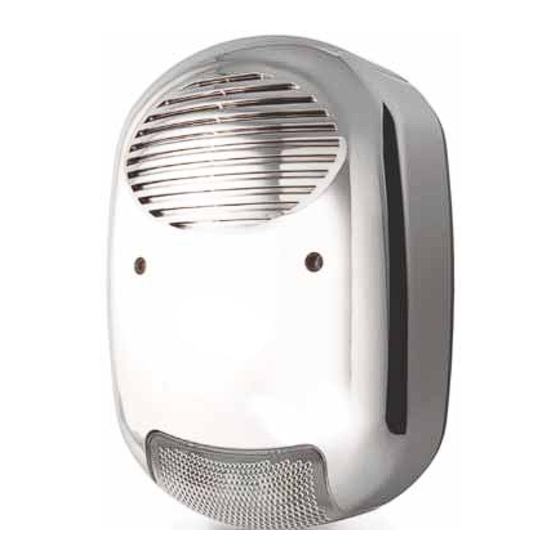

Self-powered sounder/flasher for outdoor use

Advertisement

Quick Links

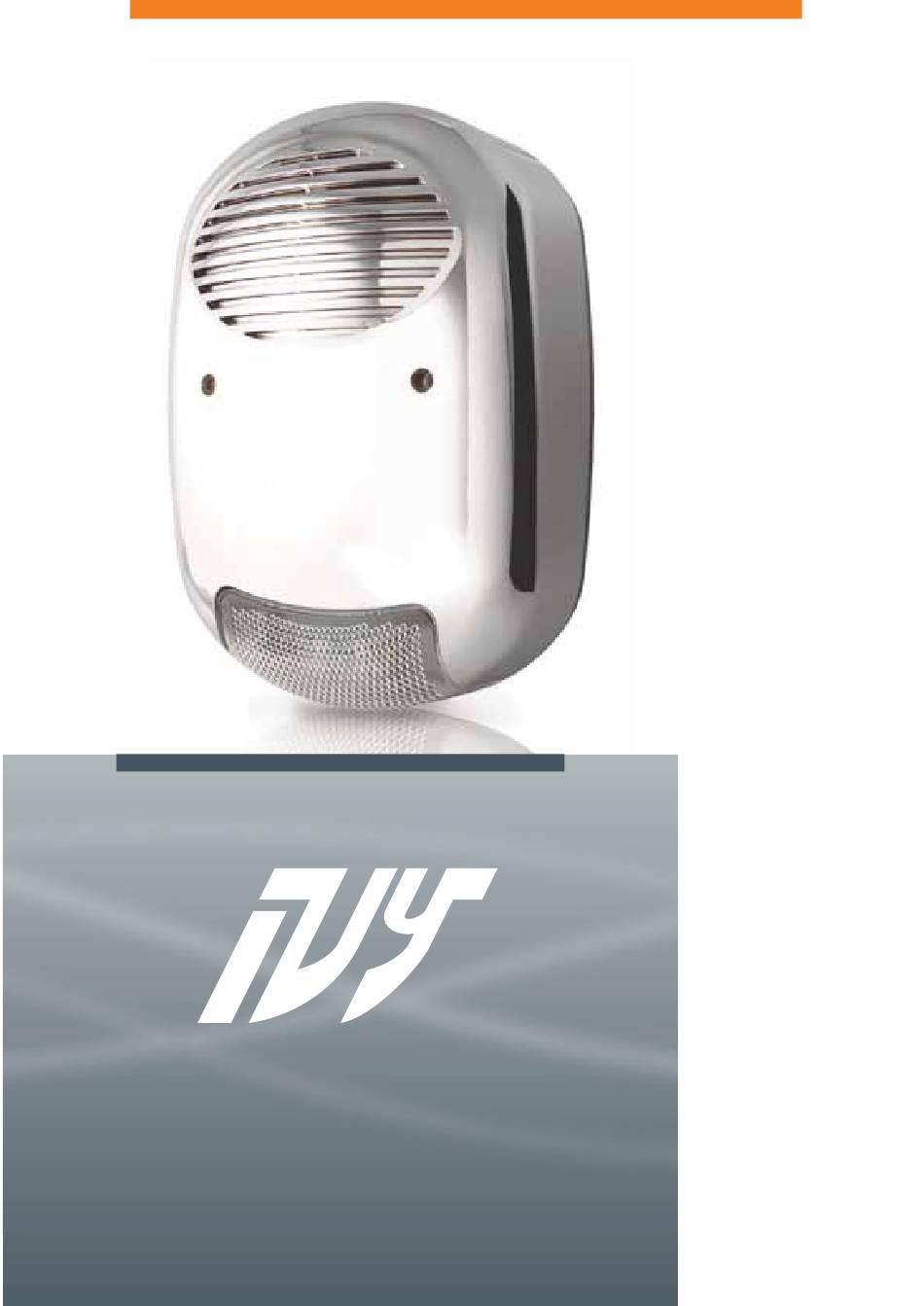

Installation and Programming manual
S E L F - P O W E R E D
S O U N D E R / F L A S H E R
F O R
O U T D O O R
U S E
S I R E N A
A U T O A L I M E N T A T A
P E R
E S T E R N O
INSTALLATION
MANUALE
AND
DI
PROGRAMMING
INSTALLAZIONE
MANUAL
E
PROGRAMMAZIONE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVY series and is the answer not in the manual?

Questions and answers

Summary of Contents for INIM Electronics IVY series

  • Page 1 Installation and Programming manual S E L F - P O W E R E D S O U N D E R / F L A S H E R F O R O U T D O O R U S E S I R E N A A U T O A L I M E N T A T A...
  • Page 2: Table Of Contents

    Installation and Programming manual Table of contents Table of contents....... 2 Chapter 1 Overview .
  • Page 3: Chapter 1 Overview

    Installation and Programming manual Chapter 1 OVERVIEW The IVY series offers a range of self-powered sounder/flashers especially designed to allow maximum outdoor-installation flexibility. The on-board microprocessor monitors the device parameters and assures high-reliability and first-rate performance. A voltage-free- relay manages tamper signals and allows full-integration with every type of system, while a fault output allows remote-management of fault conditions.
  • Page 4: Technical Description

    (programmable) ITALY Assorbimento MAX Maximum alarm-time 3 - 6 - 9 min 0.15 A MAX power absorption (programmable) INIM Electronics s.r.l. Consumo máx corriente Protection class IP34 Operating temperature -25 to +55 °C Backup battery 12V - 2.1Ah Dimensions (W x H x D) 21x29x9.5 cm...
  • Page 5 Installation and Programming manual Table 4: Description of parts Programming button (PAGE) Table 5: Programming button (SEL) Terminal board Magneto-dynamic horn icon/ Description Battery housing name Battery wires Positive power terminal supports Terminal board 13.8V LED flasher - left group Negative power terminal LED flasher - right group Ancillary terminal with...
  • Page 6: Chapter 2 Installation

    Installation and Programming manual Chapter 2 INSTALLATION The Ivy unit should be mounted high up on a smooth surface, in such a way that it is out of reach but on view and, therefore, may serve as a visible deterrent against break-in. Installation guidelines Remove all electrical power.
  • Page 7: Wiring The Device

    Installation and Programming manual Wiring the device The following paragraphs describe the various ways of connecting the Ivy unit to an intrusion control panel. All connections involve the terminals on the motherboard (Table 4, F). Each terminal can be configured separately during the programming phase. 2 WIRE This standard wiring method activates the alarm signal by means of a positive-power-removed signal.
  • Page 8: Chapter 3 Activation Methods

    Installation and Programming manual Chapter 3 ACTIVATION METHODS The Ivy unit can be triggered by signals from the panel, depending on the wiring method used and also by events generated by the Ivy unit itself. Signaling will cease when one of the following conditions occurs: •...
  • Page 9: Managing Multi-Alarm Conditions

    Installation and Programming manual STOP INPUT The STOP signal allows you to force the Ivy unit to standby status thus blocking all signaling. Once this signal is removed, the device will restart the evaluation process and if the alarm conditions are still active, it will trigger the respective signals.
  • Page 10: Chapter 4 Signaling

    Installation and Programming manual Chapter 4 SIGNALING The Ivy unit provides various signals: audible, visual, activation of the FAULT and TAMPER outputs (connectable to the intrusion-control panel). Each signal type can be programmed separately, combined with other signals, or deactivated. Types of signaling VISUAL SIGNALING The super-bright flasher uses new-generation Light Emitting Diode...
  • Page 11 Installation and Programming manual 5 seconds after which, the LEDs emit slow blinks (duration of 1 second) which signal the type of fault or tamper. If several conditions are detected simultaneously, both LEDs are capable of signalling the events consecutively. The following table shows the various event types and how they are signalled on the LEDs (the number of slow blinks which signal the type of event concerned and the related Programming-menu option...
  • Page 12: Chapter 5 Programming

    Installation and Programming manual Chapter 5 PROGRAMMING The programming session cannot begin until after first startup, therefore, it is necessary to ensure that: • all power sources to the Ivy unit (mains and battery) are disconnected; • the tamper protection is open; •...
  • Page 13: Programming Menu

    Installation and Programming manual Programming Menu The following table shows, under the caption “Menu”, all the options on the Programming menu and their respective LED combinations. Table 7: Programming Menu Menu Options 3 2 1 0 3 2 1 0 3 2 1 0 3 2 1 0 3 2 1 0 Menu combinations Num.
  • Page 14: Appendix A Order Codes

    Installation and Programming manual Instead (under the caption “Options”), the programmable settings for each item, highlighted on a grey background ( ) are the options enabled at default. The following section describes the menu options. Exit without saving: when you come to this option, wait 20 seconds for the device to exit the programming phase without saving.
  • Page 15: Warranty

    Directive 2004/108/CE. (EMC) The full declarations of conformity of the above-mentioned devices compliance are available at URL: www.inim.biz The Manufacturer: INIM Electronics s.r.l., via Fosso Antico, Centobuchi, 63033 Monteprandone (AP), Italy Tel. +39 0735 705007, Fax +39 0735 704912, info@inim.biz, www.inim.biz...
  • Page 16 Installation and Programming manual...
